Specifications
Brand Name :
Sacontelecom
Model Number :
SA-018B
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
10PCS
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
10000pcs/month
Delivery Time :
3 working days after received your payment
Packaging Details :
Carton with PE Foam
Product Name :
Prison Cell Phone Jammer
Output Power :
42W
Jamming Range :
2-40 meters depends on the signal strength
Cooling System :
High efficiency aluminum alloy radiator, Build-in 5 cooling fan
Working Time :
Not-stop Working
Weight :
7.5kg
Description
18 Channels Mobile Phone Signal Jammer Block All GPS Signals 42W High Power
Product Overview

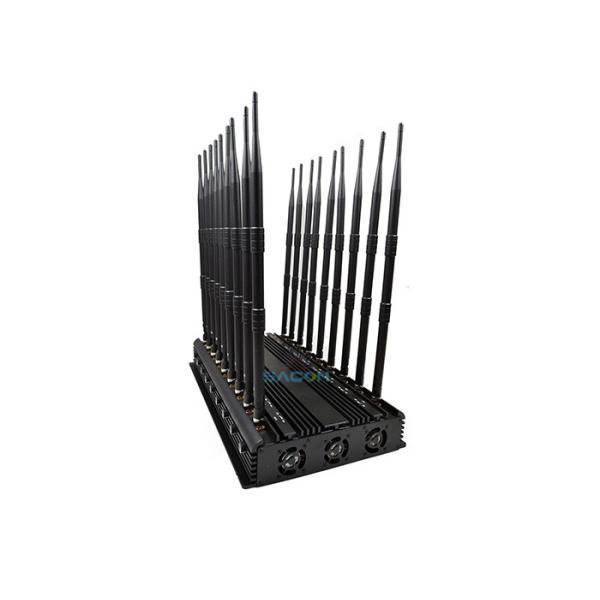

The SA-018B is a high-performance signal jammer featuring 18 antennas covering full frequency bands from 130MHz to 6GHz. This advanced device provides powerful jamming capabilities for mobile phone GSM, 3G, 4G LTE signals, along with Wi-Fi 2.4G/5GHz, GPS LOJACK, RF 315MHz/433MHz, VHF/UHF Walkie-Talkie, and wireless headset/microphone signals. With an effective jamming radius of up to 40 meters, this all-in-one jammer ensures comprehensive signal blocking.

Key Advantages
  • Full bands 18 channel design with customizable frequency bands
  • High output power totaling 42W with jamming radius up to 40 meters
  • External omni-directional antennas covering all TX frequencies
  • Includes car storage battery charger (DC12V) for vehicle use
  • Built-in advanced cooling system for continuous operation
  • Individual band adjustment or shutdown without affecting other bands

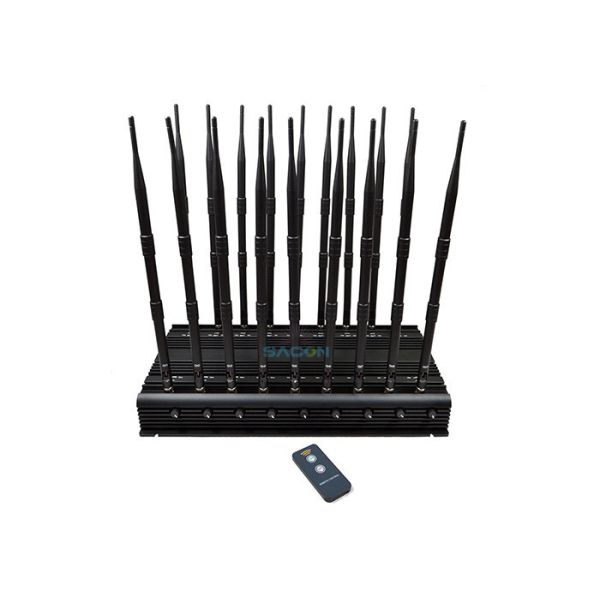

  • Infrared remote control with 2-5 meter range for power on/off
Basic Specifications

Jam Signal Type:

  • SA-018A: Full bands mobile phone 4G/3G/2G + WiFi 2.4G + GPS L1-L5 + Walkie-Talkie UHF/VHF
  • SA-018B: Full bands cellphone 4G/3G/2G + WiFi 2.4G + GPS L1-L5 + Full bands Walkie-Talkie 135-500MHz
  • SA-018C: Full bands mobile phone 4G/3G/2G + WiFi 2.4G/5GHz + GPS L1-L5 + Walkie-Talkie UHF/VHF

Output Power: Total 42W, 1-3W per band

Jam Radius: 2-40 meters

Power Supply: AC 110V or 220V to DC12V

Cooling System: High efficiency aluminum alloy radiator with 5 built-in cooling fans

Working Time: Continuous non-stop operation

Product Size: 460 × 238 × 60 mm (excluding antennas)

Product Weight: Approximately 7.5 kg

Technical Specifications - SA-018A
Channel Output Port Frequency Range Average Output Power
1CDMA850-894MHz35dbm / 3W
2GSM925-960MHz35dbm / 3W
3DCS1805-1880MHz33dbm / 2W
4PCS1900-1990MHz33dbm / 2W
53G2110-2170MHz33dbm / 2W
6WiFi 2.4G2400-2500MHz30dbm / 1W
74G1 LTE700-805 or 790-826MHz35dbm / 3W
84G LTE2500-2690MHz30dbm / 1W
94G2 17001710-1780MHz33dbm / 2W
104GH 23002300-2400MHz30dbm / 1W
11433 (car remote control)433MHz35dbm / 3W
12315 (car remote control)315MHz35dbm / 3W
13VHF135-175MHz35dbm / 3W
14UHF400-470MHz35dbm / 3W
15LOJACK167-175MHz35dbm / 3W
16GPS L11570-1580MHz33dbm / 2W
17GPS L2+L51170-1280MHz33dbm / 2W
18GPS L3+L41370-1390MHz33dbm / 2W
Technical Specifications - SA-018B
Channel Output Port Frequency Range Average Output Power
1CDMA850-894MHz35dbm / 3W
2GSM925-960MHz35dbm / 3W
3DCS1805-1880MHz33dbm / 2W
4PCS1900-1990MHz33dbm / 2W
53G2110-2170MHz33dbm / 2W
6WiFi 2.4G2400-2500MHz30dbm / 1W
74G1 LTE700-805 or 790-826MHz30dbm / 1W
84G LTE2500-2690MHz30dbm / 1W
94G2 17001710-1780MHz33dbm / 2W
104GH 23002300-2400MHz30dbm / 1W
11Walkie-Talkie VHF1135-200MHz35dbm / 3W
12Walkie-Talkie UHF2200-300MHz35dbm / 3W
13UHF3+RC315300-400MHz35dbm / 3W
14UHF4+RC433400-500MHz35dbm / 3W
15LOJACK167-175MHz35dbm / 3W
16GPS L11570-1580MHz33dbm / 2W
17GPS L2+L51170-1280MHz33dbm / 2W
18GPS L3+L41370-1390MHz33dbm / 2W
Technical Specifications - SA-018C
Channel Output Port Frequency Range Average Output Power
1CDMA850-894MHz35dbm / 3W
2GSM925-960MHz35dbm / 3W
3DCS1805-1880MHz33dbm / 2W
4PCS1900-1990MHz33dbm / 2W
53G2110-2170MHz33dbm / 2W
6WiFi 2.4G2400-2500MHz30dbm / 1W
7WiFi 5.2G5100-5500MHz30dbm / 1W
8WiFi 5.8G5500-5900MHz30dbm / 1W
94G1 LTE700-805 or 790-826MHz33dbm / 2W
104G LTE2500-2690MHz30dbm / 1W
114G2 17001710-1780MHz35dbm / 3W
12433 (car remote control)433MHz35dbm / 3W
13315 (car remote control)315MHz35dbm / 3W
14VHF135-175MHz35dbm / 3W
15UHF400-470MHz35dbm / 3W
16LOJACK167-175MHz33dbm / 2W
17GPS L11570-1580MHz33dbm / 2W
18GPS L2+L51170-1280MHz33dbm / 2W

Note: Shielding radius of 2-40 meters at -75dBm. Actual performance depends on signal strength in given area. VHF/UHF signal shielding radius approximately 10 meters.

Applications

Ideal for meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, buses, and other locations requiring silence, confidentiality, and information security.

For sensitive locations such as hospitals and gas stations, please conduct field testing first to ensure no interference with normal equipment and instrument operation.

Package Contents
  • Jammer Host × 1
  • AC Adapter × 1
  • Antenna × 18
  • Car Storage Battery Cable × 1
