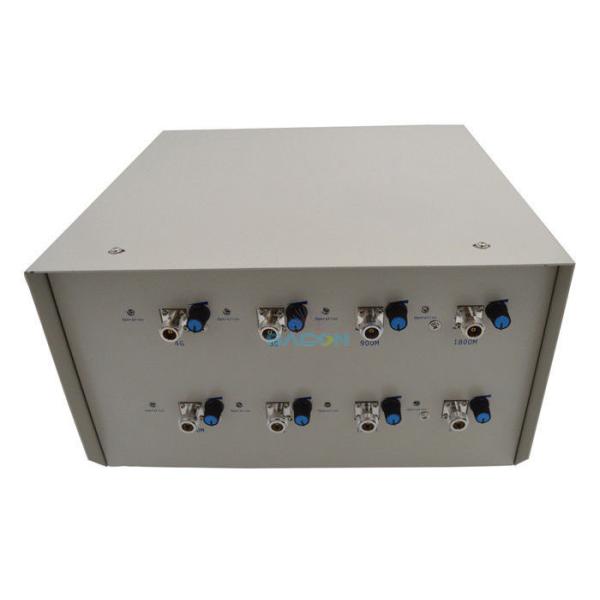

120 W 8 Bands Vehicle Mounted Jammer AC220V For Training Centers / Factories
Product Overview
This 120W high-power vehicle mounted jammer with 8 frequency bands and range up to 100 meters is designed for critical security applications in prisons, government agencies, and other sensitive locations where mobile signal blocking is essential.
The device effectively blocks 2G, 3G, and 4G mobile signals across eight frequency bands simultaneously, providing comprehensive signal disruption in high-security environments.
Key Features
- 15-20 Watts output power for each frequency band
- Adjustable blocking range capability
- Jamming radius of 20-100 meters depending on local signal strength
- Blocks all cell phone signals, WiFi, and GPS simultaneously
- Eight antennas for optimal performance
- User-friendly ON/OFF switch operation
- Internal cooling fans and heat sink design for continuous operation
- Customizable for other cellular standards worldwide
Technical Specifications
| Output Interface |
Description |
Shield Band Frequency |
RF Output Power (±1dBm) |
| CH1 |
CDMA800 |
851-894 MHz |
43dBm |
| CH2 |
WCDMA 3G |
2110-2170 MHz |
42dBm |
| CH3 |
GSM900 |
925-960 MHz |
43dBm |
| CH4 |
GSM1800 |
1805-1880 MHz |
42dBm |
| CH5 |
PCS 1900 |
1930-1990 MHz |
42dBm |
| CH6 |
GPS |
1570-1580 MHz |
42dBm |
| CH7 |
Wi-Fi |
2400-2500 MHz |
42dBm |
| CH8 |
4G LTE700/LTE800 |
725-821 MHz |
42dBm |
Optional Bands: 4G2300/LTE2600/WIFI5.8G/3.6G/VHF135-174MHz/UHF200-400MHz
Power Supply: AC220V, DC 28V
Total Output Power: 120 Watt
Power Consumption: 350 Watt
Weight: 16 Kg
Dimensions: 40 × 38 × 32 cm
Humidity: 30%-95%
Operating Temperature: -20℃ to +55℃
Jammer Modules: 8
Cooling System: Systematic Smart Cooling System
System Protection: VSWR
Jamming Source: Frequency Scan Technology
Antenna Type: Omni antennas or High Gain Directional Panel Antennas
Jumper: 7D-FB superflexible coaxial cable
Jamming Range: 20-100m according to signal density of mobile network
Applications
- Prisons, meeting rooms, conference rooms, museums, galleries
- Theaters, concert halls, churches, temples, restaurants
- Classrooms, training centers, factories, banks
- Trains, buses, and other transportation vehicles
For sensitive locations such as hospitals and gas stations, please conduct field testing first to ensure no interference with normal equipment operation.
Included Accessories
- 1 × English User Manual (digital scan file available via email)
- AC Power Charger (appropriate standard for shipping destination)
- Mounting Screws
- Band Specific Antennas × 8
