Intelligent Black Car Telematics Box Waterproof Qualcomm Octa Core CPU
Intelligent Black Car Telematics Box Waterproof Qualcomm Octa Core CPU
Intelligent Black Car Telematics Box Waterproof Qualcomm Octa Core CPU
Intelligent Black Car Telematics Box Waterproof Qualcomm Octa Core CPU
Intelligent Black Car Telematics Box Waterproof Qualcomm Octa Core CPU
Intelligent Black Car Telematics Box Waterproof Qualcomm Octa Core CPU
Specifications
Brand Name :
UniStrong
Model Number :
E9650
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T
Supply Ability :
20000
Delivery Time :
THD
Packaging Details :
GIFTBOX PACKAGE
RAM :
2GB LPDDR3
GNSS :
GPS+BD,Ublox8030
Frequency :
2.0GHz
WIFI module :
2.4GHz/5.8GHz；802.11 a/b/g/n/ac
Description

Android High Performance Telematic Box , AI algorithm IP65 waterproof 2-channel simultaneous HD 1080P recording Qualcomn Octa core CPU

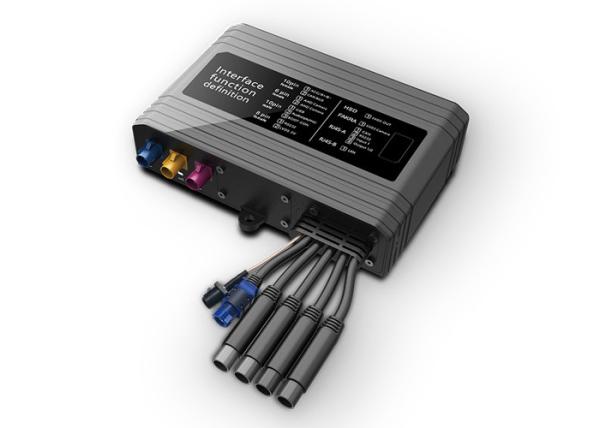

Product appearance
Item Parameter Standard configuration
IP level 　 IP65
Indicator 　 １:GPS　LED＊１　Yellow
２:４G　LED＊１　Green
３:WiFi　LED＊１　Red
Hardware configuration
Item Parameter Description
CPU Type Qualcomm MSM8953,Octa core ; Cortex A53 64bit processor
Frequency 2.0GHz
GPU Type Adareno 506
RAM DDR3 2GB LPDDR3
ROM EMMC 16GB EMMC5.0
SENSOR Accelerometer 3-aixs Accelerometer
WLAN Communication
Type Parameter Description
WIFI WIFI module 2.4GHz/5.8GHz；802.11 a/b/g/n/ac
Bluetooth In-build BT2.1+EDR/3.0/4.1/4.2 BLE
GNSS In-build GPS+BD,Ublox8030
3G/4G In-build
Module:EC60-CE cat6 (LTE 4G China)
FDD LTE:B1/B3/B5/B8
TDDLTE:B34/B38/B39/B40/B41
TDSCDMA:B34/B39
WCDMA :B1/B8
CDMA2000 : 1X/EVDO:BC0
GSM:900/1800MHz
M1～M５Cable interface function extension
Type Parameter Description
M1 PORT (1０pin Micro connector Female) Extension B＋,Ｂ－,ＡＣＣ(９～３６V)
M2 PORT (８pin Micro connector male) Extension AHD camera
M３ PORT(８pin Micro connector Female) Extension AHD camera
M４ PORT(８pin Micro connector Female) Extension LVDS camera
M５ PORT(１０pin Micro connector male) Extension FPD LINK LCD Monitor transmission
RS232
Other extension interface
Type Parameter Description
SIM Card 3G/4G SIM card nano-SIM card interface x1
TF Card Extended external storage Supported
GNSS antena interface Fakra Fakra C interface*1
WiFi antena interface Fakra Fakra K interface*１
4G antena interface Fakra Fakra D interface*1
Accessories
Type Parameter Description
Host cable 　 M１～M５interface cable
GNSS/4G/WiFI antena External antena GNSS/4G/WiFI Three-in-one antenna
Camera LVDS camera LVDS１０８０P camera＊１

Service
1.Standard free 1 year warranty for the product;
2. Sample test and debug support;
3. ODM/Customized requirements assessment and quotation;
4. Product ID design ;
