Hydraulic Powered Metal Roofing Machine Thickness 0.4 - 0.7mm For Wall Cladding
Hydraulic Powered Metal Roofing Machine Thickness 0.4 - 0.7mm For Wall Cladding
Hydraulic Powered Metal Roofing Machine Thickness 0.4 - 0.7mm For Wall Cladding
Hydraulic Powered Metal Roofing Machine Thickness 0.4 - 0.7mm For Wall Cladding
Hydraulic Powered Metal Roofing Machine Thickness 0.4 - 0.7mm For Wall Cladding
Hydraulic Powered Metal Roofing Machine Thickness 0.4 - 0.7mm For Wall Cladding
Hydraulic Powered Metal Roofing Machine Thickness 0.4 - 0.7mm For Wall Cladding
Hydraulic Powered Metal Roofing Machine Thickness 0.4 - 0.7mm For Wall Cladding
Specifications
Brand Name :
JN
Model Number :
Customize
Certification :
CE ISO
Place of Origin :
Hebei, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 Sets per month
Delivery Time :
about 20 days
Packaging Details :
Seaworthy Packing
Material Thickness :
0.4-0.7mm
Yield Strength :
235MPa 345MPa And 550MPa.
Automatic: :
PLC controlled, full automatic
Material :
PPGI,Color Steel,GI
Rolling shaft material :
45 # Steel
Cutting Type :
Hydraulic Cutting
Description

Hydraulic Powered Metal Roofing Roll Forming Machine Thickness 0.4 - 0.7mm

Description :

Roof curving crimping machine Steel Crimping Machine Curved Roofing Sheet Machine hydraulic curving machine roof curving machine is also the nickname of the following name.

This machine is used to form the pre-painted sheet/GI material to be the standing seam for various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.

Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

Work Flowing:

Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table

Specification / Technical Parameter

Item Specification

Material

 Type Pre-painted steel coil & galvanized coils
Thickness 0.3-0.7mm
Yield strength 235-345Mpa
Roller material No.45 forged steel
Forming speed About 20-25m/min
Output speed 8-12m/min
Speed adjusting mode AC Frequency
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Mitsubishi PLC
Main motor 7.5KW
Hydraulic station motor 2.2KW

Components of Roofing Machine

Decoiler
(manual/ hydraulic decoiler for option)		 1set
Feeding & guiding device 1set

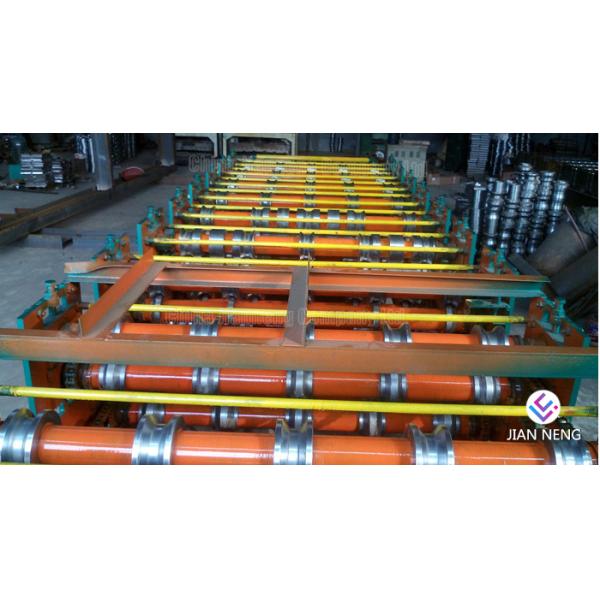

Main roll forming machine 1set

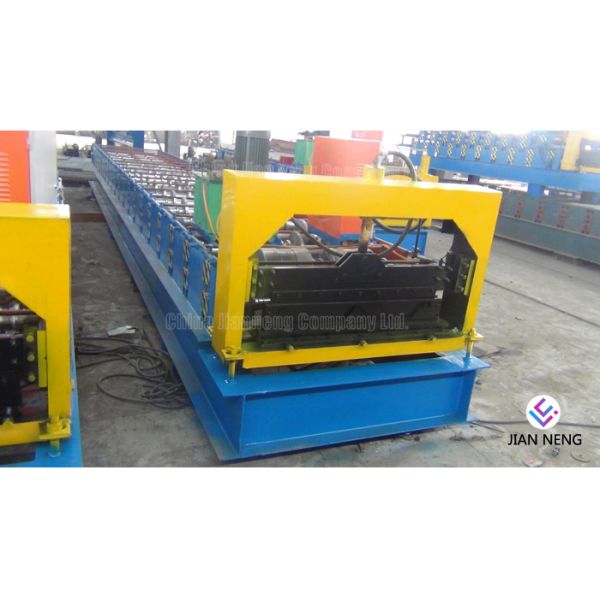

Hydraulic cutting system 1set
Controlling system 1set

Run out table

(auto. Stacker for option)

 1.5m/ pc, 2 pcs

Feature & Advantages:

Hydraulic Powered Metal Roofing Roll Forming Machine Thickness 0.4 - 0.7mm

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.

5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.

6. powerful driving system: big inch train,or gear box driving system.

6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
