Specifications
Brand Name :
JN
Model Number :
Customize
Certification :
CE ISO
Place of Origin :
Hebei, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 Sets per month
Delivery Time :
about 20 days
Packaging Details :
Seaworthy Packing
Material Thickness :
0.4-0.7mm
Yield Strength :
235MPa 345MPa And 550MPa.
Control System :
PLC controlled, full automatic
Rolling shaft material :
45 # Steel
De-coiler Type :
Manual or Hydraulic
Name :
Prepainted Steel & Aluminium Metal Roofing Roll Forming Machine Cutting Machine
Description

Prepainted Steel & Aluminium Metal Roofing Roll Forming Machine Cutting Machine

Description :

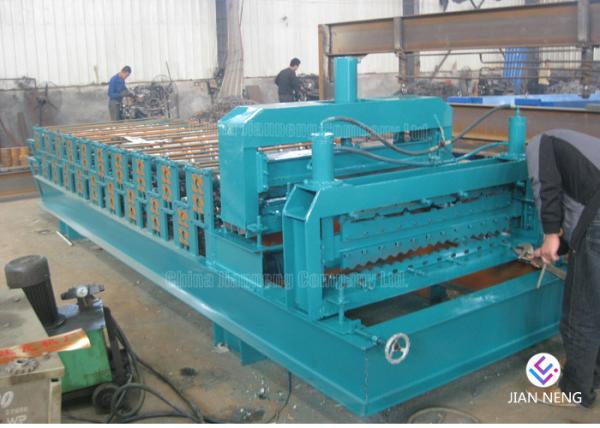

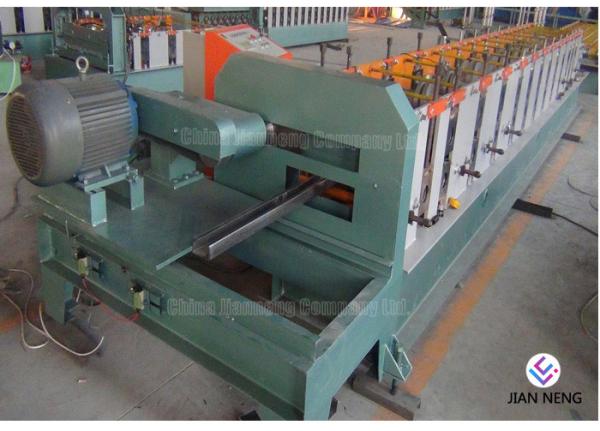

1. Roof tile roll forming machine is made up of roll forming machine, molding press, cutting machine, PLC computer control and hydraulic system.
2. The machine is stable, no noise, no shake.
3. Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, maintenance-free.
4. Cutting machine is characterized by stable driving, easy operation.
5. Hydraulic system use the CDF-10 hydraulic pump, long operating life, no noise.

Specification / Technical Parameter

Name Prepainted Steel & Aluminium Metal Roofing Roll Forming Machine Cutting Machine
Suitable Material Colored or galvanized steel coil, HRB60 or equivalent
Thickness Range 0.3-0.8 mm
Coil Width Range According to your actual drawing.
Electric Power

380V, 50 Hz, 3 phaseor according to your need.
Dimension About 6.4*0.6*1.1m(L*W*H), as per the drawing
Cutting Automatically stop and cutting when it comes to the set length.
Length of the Sheet

You can set the length according to your need.

It is controlled by PLC

length accuracy: ±1mm.

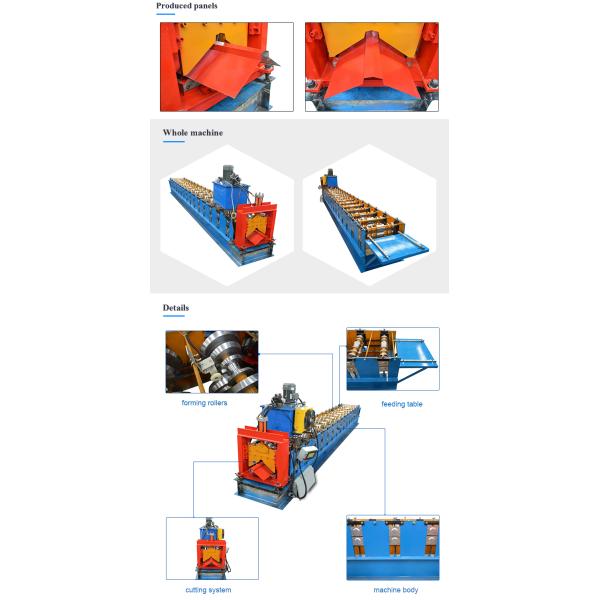

Components of Metal Roofing Machine / Curving Machine

1. Manual De-coiler or Hydraulic De-coiler 5t (optional)

2. Feeding device

3. Straightenting device

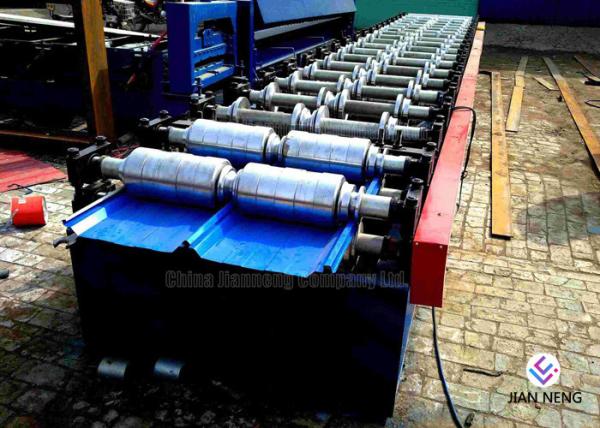

4. Roll Forming Machine

5. Cutting device

6. PLC control system

7. Exit Rack

8. Hydraulic Station

Feature & Advantages:

Prepainted Steel & Aluminium Metal Roofing Roll Forming Machine Cutting Machine

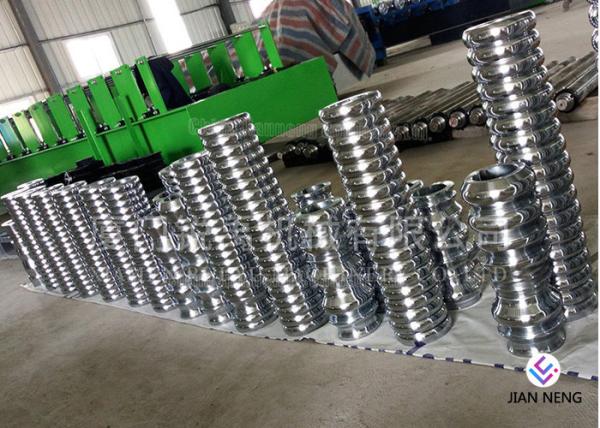

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.

5. Automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.

6. Powerful driving system: big inch train,or gear box driving system.

7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

Prepainted Steel Aluminium Metal Roofing Machine Cutting Machine No Noise
