A4VSG Axial piston variable High pressure pump , Closed circuit pumps
A4VSG Axial piston variable High pressure pump , Closed circuit pumps
Specifications
Brand Name :
Bosch Rexroth
Model Number :
A4VSG180
Certification :
GS, RoHS, CE, ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
discussible
Payment Terms :
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability :
500pieces/Year
Delivery Time :
5days
Packaging Details :
Wooden box
Sizes :
40-1000
Nominal pressure :
350 bar
Maximum pressure :
400 bar
function :
Closed circuit
performance :
Robust high-pressure pump for industrial applications
Features :
Robust pump with very long service life
Description

A4VSG Axial piston variable High pressure pump , Closed circuit pumps

Control device

Hydraulic control HM 1/2, volume dependent (see data sheet 92076)
The pump displacement can be steplessly adjusted in relation to the pilot oil volume in ports X1 und X2.
Application:
2-point circuit
Base device for servo or proportional controls

Control system EO1/2
The stepless control of the displacement flow is accomplished by means of a proportional valve and electrical feedback of the swivel angle. Thus, the control can be used as an electric displacement control.
Optional:
Control pressure range (EO1, EO2)
Short circuit valve (EO1K, EO2K)

Technical data

Robust high-pressure pump for industrial applications.

Sizes 40 ... 1000.

Nominal pressure 350 bar.

Maximum pressure 400 bar.

Closed circuit.

Features

Robust pump with very long service life.

Reduced noise.

Through drive for mounting of further pumps up to same nominal size.

Flow direction changes smoothly when the swashplate is moved through the neutral position.

Axial and radial load capacity of the drive shaft.

Modular design.

Visual swivel angle indicator.

Short response times.

Operation on HF-fluids under reduced operational data possible.

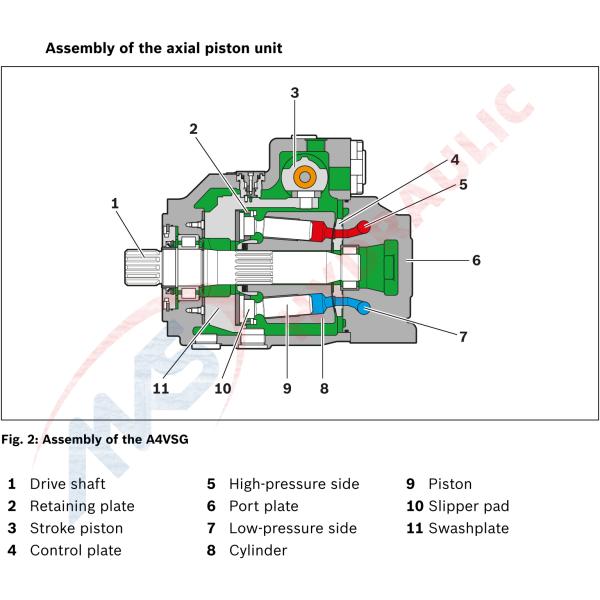

Swashplate design.
