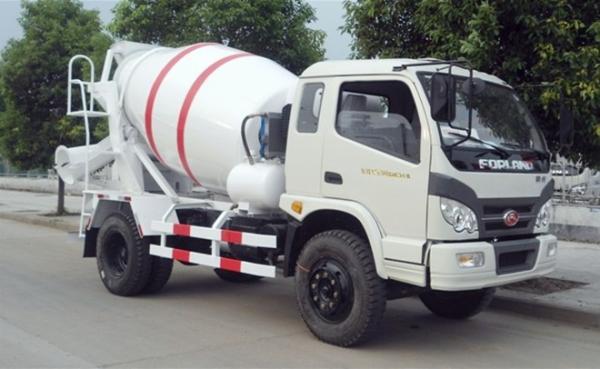

18 m3 Diesel Fuel type high quality concrete mixer truck
18 m3 Diesel Fuel type high quality concrete mixer truck
Specifications
Brand Name :
MITNIK
Model Number :
20CBM
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
negotiation
Supply Ability :
unlimited
Delivery Time :
15-20 days
Packaging Details :
Standard export packing
Description

18 m3 Diesel Fuel type high quality concrete mixer truck

Truck Model : ZZ1317S3261W
Truck Brand : SINOTRUK – HOWO
Driving Style : Left/Right Hand Driving
Dimension (L*W*H)(unloaded)(mm) : 11250*2500*3980
Tank volume(m3) : 14-18
Wheel base(mm) 1800+3600+1350
Max speed (km/h) : 90
Curb weight (kg) : 16980
Loading Weight (kg) : 31000
Fuel tanker capacity (L) : 300
Fuel consumption (L/km) : 28L/100
Clutch : Single-plate dry clutch Φ 430mm
Fuel type : Diesel
Horse Power, max (kw/rpm) : 336HP
Emission : EURO II
Transmission : HW15710 , 10 forwards and 2 reverse
Brake system : Dual circuit compressed air brake
Parking brake : spring energy, compressed air operating on rear wheels
Auxiliary brake : Engine exhaust brake
Steering system : ZF8118 hydraulic steering with power assistance
Front axle : HF9 , Steering with double T-cross section beam
Rear axle :

HC16,Pressed axle housing,central double reduction with

differential locks between axles and wheels
Color : Optional( White , Red , yellow or as your needs )
Tyre : 12.00R20
Cab :

HOWO76 cab,single sleeper with air conditioner all-steel forward

control,55º hydraulically tiltable to the front,2-arm windscreen

wiper system with three speeds,laminated windscreen with

casted-inradio aerial,hydraulically damped adjustable driver’s

seat and rigid adjustable co-driver’s seat,with heating and

ventilating system,outer sun visor,adjustable roof flap,with

stereo radio/cassette recorder safety belts and adjustable

steering wheel,air horn,with 4-point support fully floating

suspension and shock absorbers

18 m3 Diesel Fuel type high quality concrete mixer truck
