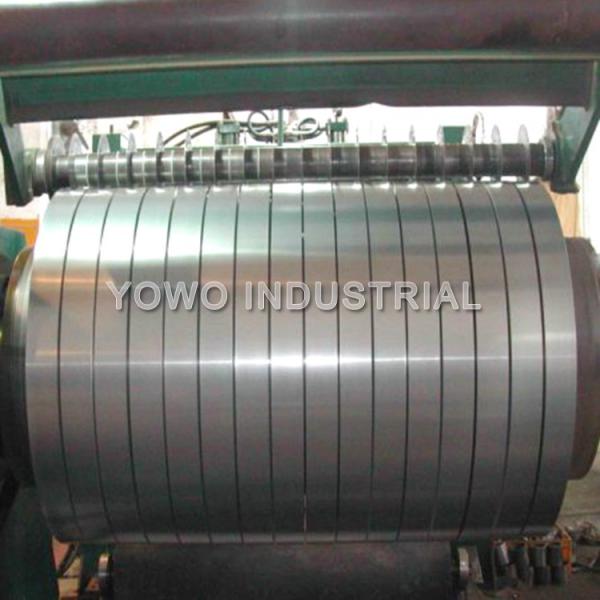

Dia300mm Aluminum Alloy Strip
Dia300mm Aluminum Alloy Strip
Dia300mm Aluminum Alloy Strip
Dia300mm Aluminum Alloy Strip
Specifications
Brand Name :
YOWO
Model Number :
1060, 1050
Certification :
CE, SGS
Place of Origin :
CHINA
MOQ :
7 MT
Price :
USD 2000-2900 per TON
Payment Terms :
L/C, T/T
Supply Ability :
10000 tons per month
Delivery Time :
15-30 days after receiving deposit or Original LC
Packaging Details :
Standard exporting package
Type :
aluminum strips
Alloy :
1060, 1050
Width :
20-1600mm
Hardness :
O
Grade :
1000 series
Brand :
YOWO
Sample :
can be provided for free
Temper :
O - H112
Description

Width 20-1600mm Direct Factory Aluminum Strips For Channel Letter

Dia300mm Aluminum Alloy Strip

Product Aluminum Strip
Property Anti-Corrosion, Heat Resistant
Surface Mill finish
Production Process Cold Rolled, Hot Rolled
Internal Diameter 300mm, 405mm, 505mm or as per request
Temper O, H14, H24, H32, H112 etc; T4, T651 etc..
Thickness 0.2mm - 60mm
Width 20mm - 1600mm
Coil Weight 2-4 tons
Package Export wooden pallets, craft paper, anti-blushing agent.
Quality of Material Totally free from defects like white rust, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set.
Mark Customized service is available.

Tolerance:

Aluminum Alloy 1070/1060/1050 O
Thickness(mm) 0.2-0.3 0.4-0.8 1.0-2.0 2.0-3.0
Tolerance(mm) ±0.015 ±0.02 ±0.03 ±0.06
Width(mm) 20-400 100-600 200-700 500-1600
Width Tolerance(mm) ±0.2 ±0.3 ±0.3 ±1

Why Choose Aluminum for transformer?

1. Economic, means less cost for better achievements.

2. Conductivity of Copper is good, but Aluminum's is as double as copper at the same price.

3. Aluminum is more flexible that means it easier to wind and place in winding process.

4. Aluminum is lighter, easy to place.

In North America ,aluminum is the moost popular choice of winding material for low-voltage, dry-type transformers.

Dia300mm Aluminum Alloy Strip

Mechanical Property
ALUMINUM Grade Normal Temper Tensile Strength Yield Strength Elongation% Brinell Hardness
ALLOY Temper N/mm² N/mm² Plate Bar HB
1XXX 1050 O,H112,H O 78 34 40 - 20
1060 O,H112,H O 70 30 43 - 19
Al-Cu 2019 O,T3,T4,T6,T8 T851 450 350 10 - -
(2XXX) 2024 O,T4 T4 470 325 20 17 120
Al-Mn 3003 O 110 40 30 37 28
(3XXX) 3004 O,H112,H O 180 70 20 22 45
Al-Si (4XXX) 4032 O,T6,T62 T6 380 315 - 9 120
Al-Mg 5052 O,H112,H H34 260 215 10 12 68
(5XXX) 5083 O,H112,H O 290 145 - 20 -
Al-Mg-Si 6061 O,T4,T6,T8 T6 310 275 12 15 95
(6XXX) 6063 O,T1,T5,T6,T8 T5 185 145 12 - 60
Al-Zn-Mg 7003 T5 T5 315 255 15 - 85
(7XXX) 7075 O,T6 T6 570 505 11 9 150

Dia300mm Aluminum Alloy Strip

Why choose us?

We have more than 10 years experiences of Aluminum sheet, Aluminum foil and Aluminum strip products. We fully understand our customers' needs and requirements, and strictly in accordance with international standards such as ASTM, EN_AB, JIS, GB for the production of various grades of aluminum products.

We make sure each piece of aluminum roll No Burrs, No Scratches of Round Edge to fit for transformer winding.

Any size can be customized. No matter you need large quantity or small quantity, or trial order, we'll all treat it seriously. Give us one chance to be your reliable supplier in the near future!

Dia300mm Aluminum Alloy Strip

Dia300mm Aluminum Alloy Strip

Dia300mm Aluminum Alloy Strip

Dia300mm Aluminum Alloy Strip

Dia300mm Aluminum Alloy Strip

Dia300mm Aluminum Alloy Strip Dia300mm Aluminum Alloy Strip

Dia300mm Aluminum Alloy Strip Dia300mm Aluminum Alloy Strip
