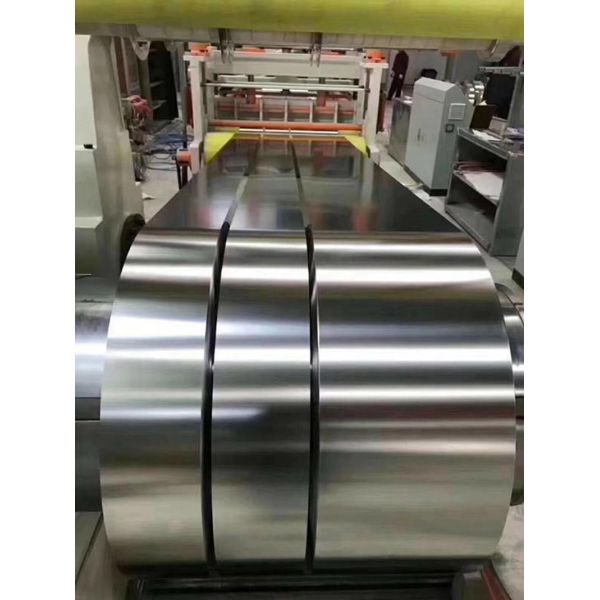

1060 aluminum sheet has high elongation, tensile strength, excellent electrical conductivity and high formability, which can fully meet the requirements of conventional processing (stamping, stretching).
The 1060 aluminum plate produced by our company eliminates the internal stress, and can be cut without deformation. Pls contact us now for more details and best price!
Product | Aluminum Strip |
Property | Anti-Corrosion, Heat Resistant |
Surface | Mill finish |
Production Process | Cold Rolled, Hot Rolled |
Internal Diameter | 300mm,405mm,505mm or per request |
Temper | O, H14, H24, H32, H112 etc; T4, T651 etc.. |
Thickness | 0.2mm - 60mm |
Width | 20mm - 600mm |
Coil Weight | 2-4 tons |
Package | Export wooden pallets, craft paper, anti-blushing agent. |
Quality of Material | Totally free from defects like white rust, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
Mark | Customized service is available. |
Mechanical Property | ||||||||
ALUMINUM | Grade | Normal | Temper | Tensile Strength | Yield Strength | Elongation% | Brinell Hardness | |
ALLOY | Temper | N/mm² | N/mm² | Plate | Bar | HB | ||
1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 | |
Al-Cu | 2019 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
(2XXX) | 2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 |
Al-Mn | 3003 | O | 110 | 40 | 30 | 37 | 28 | |
(3XXX) | 3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 |
Al-Si (4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
Al-Mg | 5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
(5XXX) | 5083 | O,H112,H | O | 290 | 145 | - | 20 | - |
Al-Mg-Si | 6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
(6XXX) | 6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 |
Al-Zn-Mg | 7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
(7XXX) | 7075 | O,T6 | T6 | 570 | 505 | 11 | 9 | 150 |
Different types of Aluminum strips:
