Specifications
Model NO. :
WD500SL
Charging Time :
≤1.5h
Navigation :
Lidar Slam
Certification :
ISO
Battery Endurance :
6h
Payload :
500kg
Condition :
New
Trademark :
Wellwit
Communication :
WiFi
Specification :
1050*580*300mm
Safety Features :
Emergency Stop Button, Safety Laser Scanner, Obstacle Avoidance Lidar
Transport Package :
Wooden Box/Un Cardboard Box
Gradeability :
≤3°
Application :
Loading, Warehouse, Logistic, 3D, Manufacture
Battery Type :
Lithium Iron Phosphate Battery
Type :
AMR (Autonomous Mobile Robot)
Charging Mode :
Offline Charging/ Automatic Charging
Mass :
350 (±10 Kg)
Origin :
Shenzhen
Price :
US $15,000 / Unit
Positioning Accuracy :
±10mm
Obstacle Avoidance :
Lidar Obstacle Avoidance, Contact Bumper Strip
Warranty :
One Year
Load Capacity :
500 kg
After-Sales Service :
One Year
MOQ :
1 Unit
Description

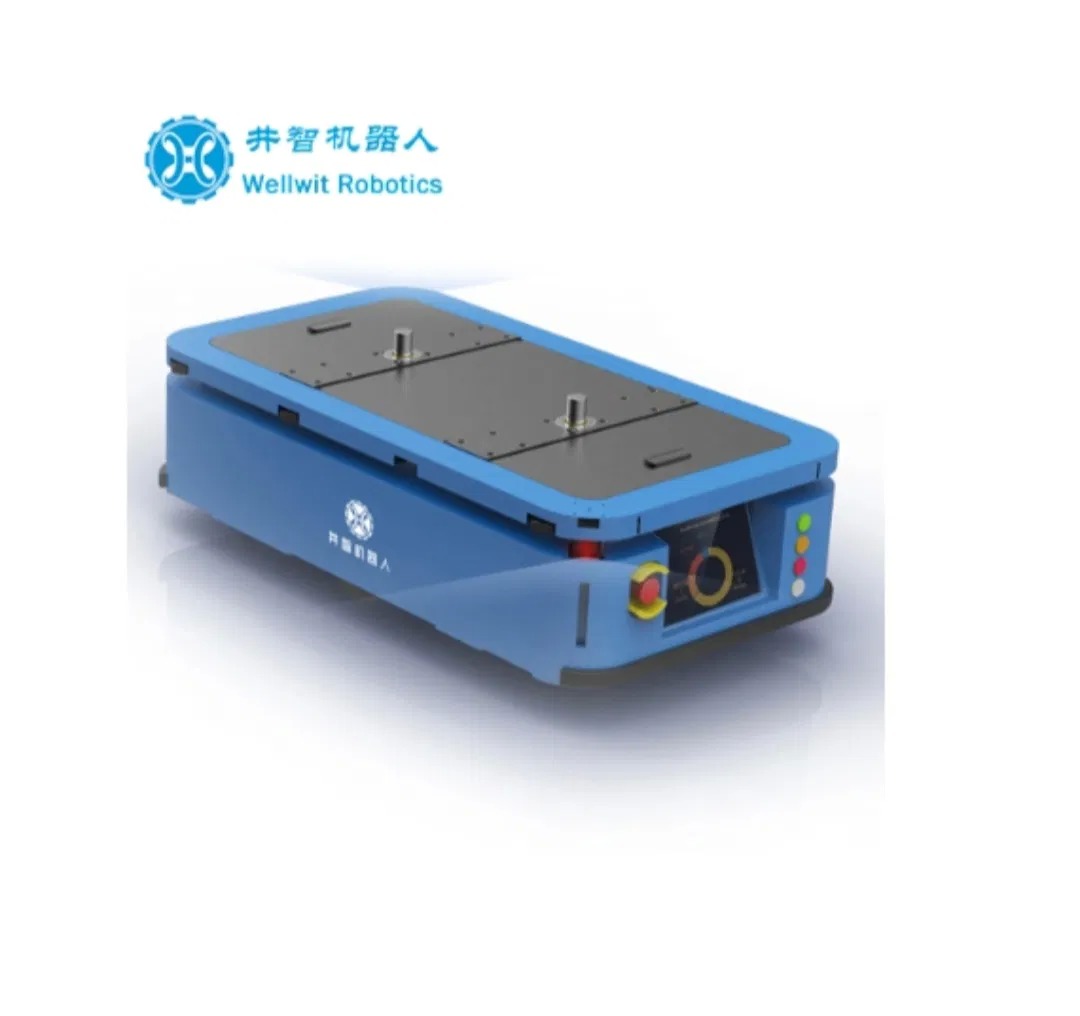

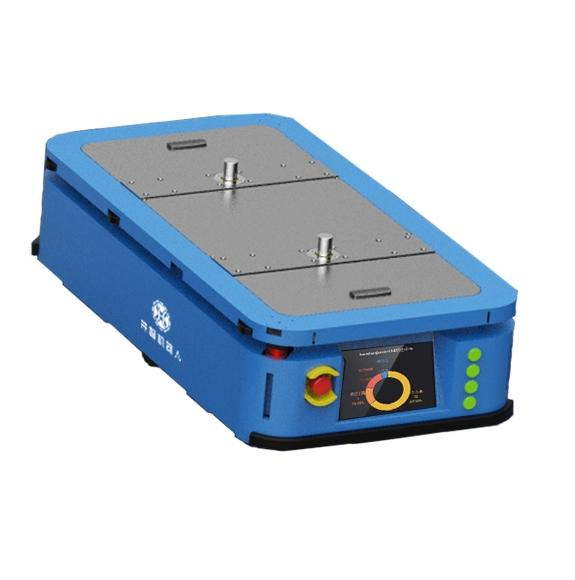

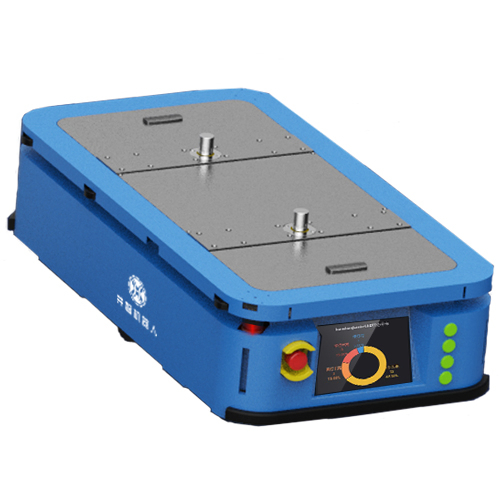

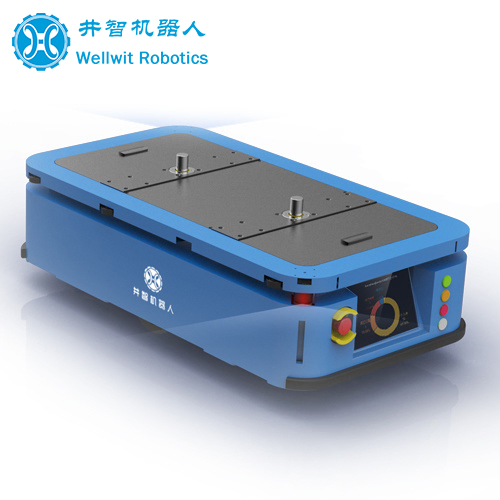

Wellwit Customized Lidar Slam Agv Automatic Towing Cart for Industry
Basic parameters Name Description
Model WD500SL
Rated load (kg) 500KG
Self-weight (kg) 350(±10KG)
Positioning accuracy (mm) + 10mm
Rotation diameter φ1200mm
Dimension (L * w * h) mm 1050 * 580 * 300mm
Navigation mode LiDAR SLAM Navigation
Performance Driving mode Servo motor / differential drive
Form of motion Under drive traction
No load maximum speed 1m/s
Full load operation speed 0.8m/s
Orientation accuracy ±1°
Battery Driving voltage (V) DC48V
Battery capacity 30AH
Battery type Lithium iron phosphate
Battery life 2000 cycles, capacity ≥ 80%
Endurance time 6h
Charging time ≤1.5h
Charging mode (optional) Off line charging / automatic charging
Safety Protection Anti collision mode Front and rear lidar obstacle avoidance
Front and rear anti-crash strips to avoid obstacles
Emergency stop Front and rear emergency stop buttons
Communication mode 5G/WIFI
Protection degree IP20
Alarm system Sound-light alarm
Wellwit Customized Lidar Slam Agv Automatic Towing Cart for IndustryWellwit Customized Lidar Slam Agv Automatic Towing Cart for IndustryWellwit Customized Lidar Slam Agv Automatic Towing Cart for Industry
Shenzhen WellWit Robotics Co., Ltd was established in Shenzhen in March 2015, our company focuses on research and development of mobile robot. The R&D team consists of members who experienced in field of robot, embedded hardware, software, algorithms, artificial intelligence, etc.
Currently, products for sale including moving robot, sorting robot, Auto-forklift, etc. Navigation method we provide including QR code navigation, LiDAR SLAM navigation, Visual SLAM Navigation, RTK navigation.
We focus on providing custom logistic robots for the integrators who focus on Intelligent Logistics and Intelligent Factory, and provide AGV&AMR with ODM/OEM service for global clients.
