Wellwit 150kg Capacity Lidar Slam Extensible Mobile Robot Chassis
Wellwit 150kg Capacity Lidar Slam Extensible Mobile Robot Chassis
Wellwit 150kg Capacity Lidar Slam Extensible Mobile Robot Chassis
Wellwit 150kg Capacity Lidar Slam Extensible Mobile Robot Chassis
Wellwit 150kg Capacity Lidar Slam Extensible Mobile Robot Chassis
Wellwit 150kg Capacity Lidar Slam Extensible Mobile Robot Chassis
Wellwit 150kg Capacity Lidar Slam Extensible Mobile Robot Chassis
Wellwit 150kg Capacity Lidar Slam Extensible Mobile Robot Chassis
Specifications
Navigation Speed :
≤1.4m/S
Payload :
150kg
Model NO. :
MRB150
Charging Method :
Manual/Automatic/Quick Change
Positioning Accuracy :
±5mm, ±0.5°
Navigation :
Lidar Slam
Condition :
New
Battery Type :
Lithium Battery 48V 35ah
After-sales Service :
One Year
Charging Time :
0-80%: 2h
Specification :
800*560*200mm
MOQ :
1 Piece
Humidity Range :
10-90%
Warranty :
One Year
Ambient Temperature :
0~50℃
Application :
Loading, Warehouse, Logistic, 3D, Manufacture
Trademark :
Wellwit
Battery Endurance :
16h or 25km
Origin :
Shenzhen
Description
Wellwit 150kg Capacity Lidar Slam Extensible Mobile Robot Chassis
Parameter Model MRB150
Quantity of Lidar 1(2 for optional)
Drive form Differential Wheel

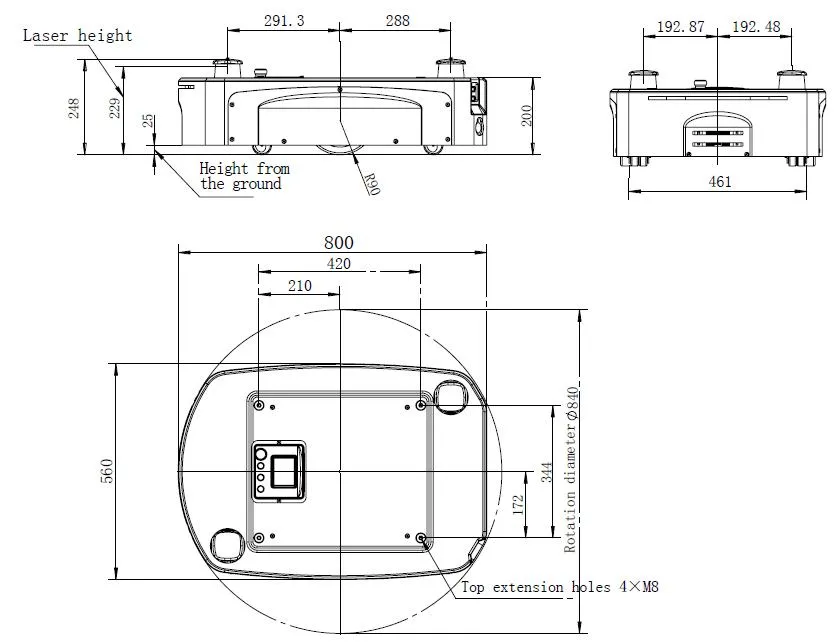

Dimension 800mm*560mm*200mm
Weight 66Kg
Color Pearl white/pearl black/custom color
Extended Interface Power DO Four-way (total load capacity of 24V/2A)
DI Eight-way (NPN)
Emergency Stop Interface Two-way output
(one expandable emergency stop button)
Network Interface Wired Network Three-way RJ45 Gigabit Network
Wireless Network Built-in Moxa AWK-1137C
Battery Capacity 48V 35Ah lithium battery
Endurance 16h or 25km
Charging time 0-80%:2h
Charging method Manual/automatic/quick change
Cycle time > 500 times
Operation Panel 3.5 inch display screen Support
Emergency Stop Button Support
Buzzer Support
Power Indicator Support
Speaker Support
Ambient Lamp Support
Performance Max Load 150Kg
Max Traction 150N
Passivity Slope < 5%, step < 0.5 cm, clearance < 2cm
Positioning Accuracy ± 5mm,± 0.5°
Navigation Speed ≤ 1.4m/s
Map Area (singe frame) ≤ 200000m2
Environment Ambient Temperature 0ºC - 50ºC
Humidity Range 10%-90%
IP Level 20
NOTE:
1. Lidar SLAM navigation is adopted, with optional peripherals such as depth camera, warning searchlight, obstacle avoidance radar, etc., which can ensure the stable and safe driving of mobile chassis in complex environment.
2. Comprehensive and excellent standard features and rich and practical advanced features help clients easily achieve intelligent logistics.
3. High precision positioning can be realized through the Lidar SLAM algorithm, and the repeated positioning accuracy of the Lidar without reflector is within ±5mm, so as to realize the seamless docking between mobile robots and human beings and the efficient flow of goods between various stations.
4. Navigation stability: on the basis of Lidar navigation, you can also freely switch to the laser reflector for navigation in the defined area. Multiple navigation methods ensure the stable work of the MRB series mobile robot.
5. Intelligent power management: preset multilevel power threshold, and charge the device automatically when below the threshold.
6. Cluster scheduling: in the robot control system, the working status, power and location of all robots can be viewed simultaneously. Schedule and manage all devices through the system.

Wellwit 150kg Capacity Lidar Slam Extensible Mobile Robot ChassisWellwit 150kg Capacity Lidar Slam Extensible Mobile Robot Chassis
Wellwit 150kg Capacity Lidar Slam Extensible Mobile Robot ChassisShenzhen WellWit Robotics Co., Ltd was established in Shenzhen in March 2015, our company focuses on research and development of mobile robot. The R&D team consists of members who experienced in field of robot, embedded hardware, software, algorithms, artificial intelligence, etc.
Currently, products for sale including moving robot, sorting robot, Auto-forklift, etc. Navigation method we provide including QR code navigation, LiDAR SLAM navigation, Visual SLAM Navigation, RTK navigation.
We focus on providing custom logistic robots for the integrators who focus on Intelligent Logistics and Intelligent Factory, and provide AGV&AMR with ODM/OEM service for global clients.
