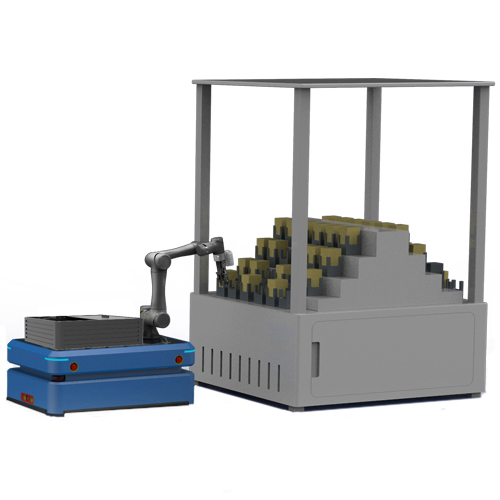

Wellwit Standard Series Agv Robot with Robot Chassis and Robot Arm

Specifications

Payload Capacity :

5 kg

Charging Time :

≤1.5 H

Battery Type :

Lithium Iron Phosphate

Condition :

New

Navigation :

Inertia+Qr Code

Trademark :

Wellwit

Transport Package :

Plywood Cases

Specification :

997*607*487 mm

After-Sales Service :

One Year

Model NO. :

WAR100-QR

Degrees of Freedom :

4-axis

MOQ :

1 Piece

Positioning Accuracy :

±10 mm

Charging Mode (Optional) :

Offline Charging /Automatic Charging

Certification :

ISO

Battery Endurance :

≥5 H

Orientation Accuracy :

±1°

Drive Mode :

Electric, Electric

Warranty :

One Year

Mass :

200 Kg(±10 Kg)

Origin :

Shenzhen

Payload :

100kg

Description

The series of Composite Robot

Specification of Robot Base
Basic Specification	Name	Composite Robot
	Type	WAR100-QR
	Payload(kg)	100kg
	Weight(kg)	150(±5KG)
	Position Accuracy(mm)	±10mm
	Size (LWH) mm	997607487mm(without bumper strip)
	Navigation Mode	Inertia+QR Code Navigation
Sport Performance	Drive Mode	Quad-drive
	Control Mode	Manual / Autonomous
	Form of Motion	Omnidirectional Movement
	Max Speed	1.25m/s
	Orientation Accuracy	±1°
Battery Performance	Driving Voltage(V)	DC48V
	Battery Capacity	40AH
	Type	Lithium iron phosphate
	Battery Life	1500 Cycles,Capacity≥80%
	Endurance Time	≥5h
	Charging Time	≤1.5h
	Charging Mode (optional)	Off line charging / Automatic charging
Safety Protection	Anti-Collision mode	LiDAR obstacle avoidance
	Anti-Collision mode	Around bumper strips for obstacle avoidance
	Emergency stop	Front and rear emergency stop buttons

Shenzhen WellWit Robotics Co., Ltd was established in Shenzhen in March 2015, our company focuses on research and development of mobile robot. The R&D team consists of members who experienced in field of robot, embedded hardware, software, algorithms, artificial intelligence, etc.
Currently, products for sale including moving robot, sorting robot, Auto-forklift, etc. Navigation method we provide including QR code navigation, LiDAR SLAM navigation, Visual SLAM Navigation, RTK navigation.
We focus on providing custom logistic robots for the integrators who focus on Intelligent Logistics and Intelligent Factory, and provide AGV&AMR with ODM/OEM service for global clients.

Wellwit Standard Series Agv Robot with Robot Chassis and Robot Arm

Wellwit Standard Series Agv Robot with Robot Chassis and Robot Arm

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

Wellwit Standard Series Agv Robot with Robot Chassis and Robot Arm

Ask Latest Price

Product Detail

Payload Capacity :

5 kg

Charging Time :

≤1.5 H

Battery Type :

Lithium Iron Phosphate

Condition :

New

Navigation :

Inertia+Qr Code

Trademark :

Wellwit

Contact Supplier

Shenzhen Wellwit Robotics Co., Ltd.

Verified Supplier

1 Years

guangdong, shenzhen

Since 2019

Business Type :

Manufacturer, Distributor/Wholesaler

Main Products :

AGVs / AMRs, Heavy Duty Series, Robot Parts

Total Annual :

10000000-50000000

Employee Number :

100~120

Certification Level :

Verified Supplier

Discover similar products

Intelligent Factory and Logistic Lidar Slam Agv Robot for Material Handing

Contact Now
Collaboration Self-Driving Delivery Agv Robot with Robot Chassis and Robot Arm

Contact Now
Composite Collaboration AMR with Robotic Arms and Grippers for Intelligent

Contact Now
Wellwit ODM OEM Composite Robot Costomized Collaborative Robot with Qr Code

Contact Now
Composite and Customized Agv Robot Base Plus Robot Arm With150kg Loading

Contact Now
Lurking Agv Chassis Robot and Cobot with 100kg Payload for Transportation

Contact Now

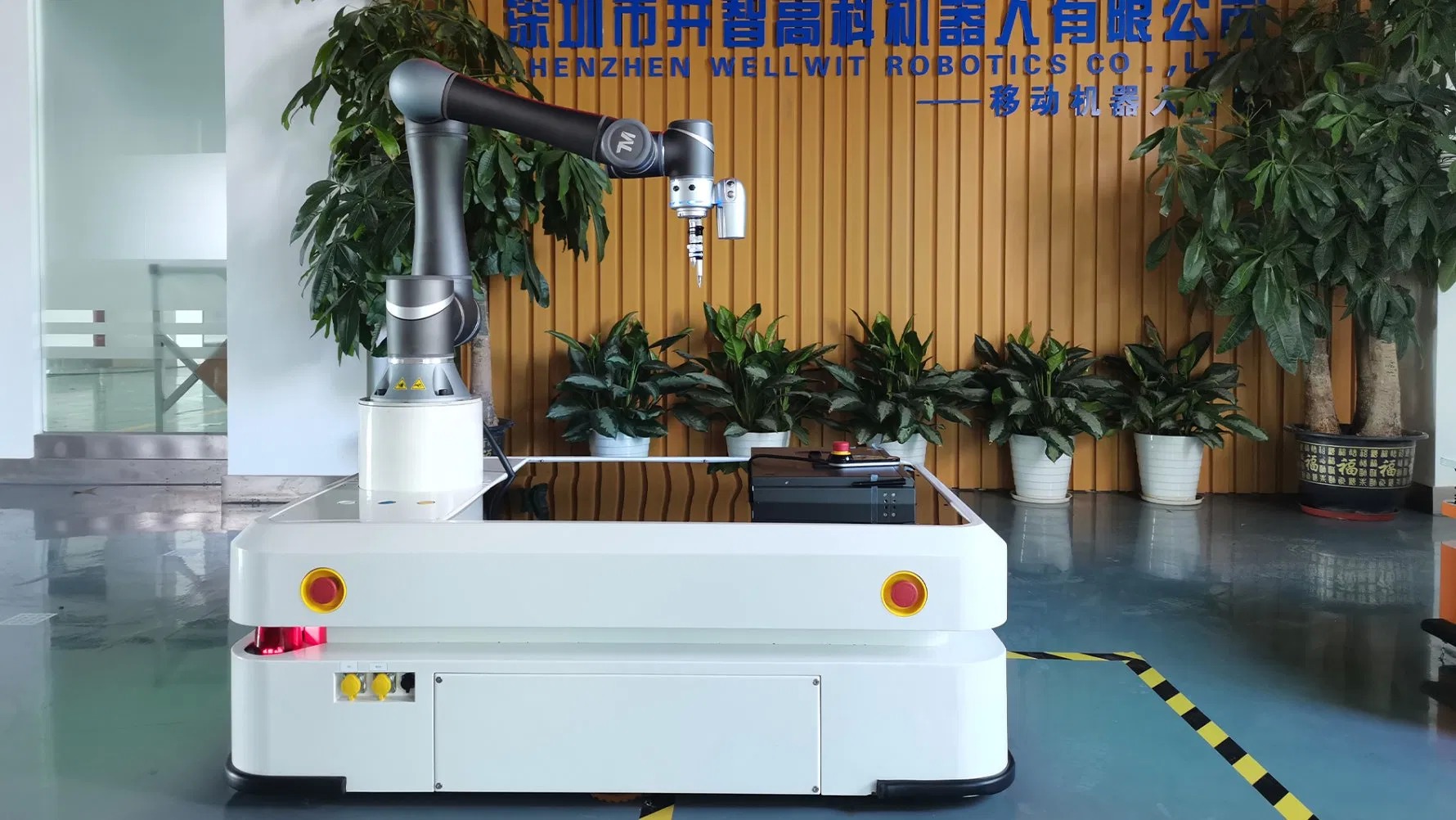

Robotics Arm 3kg Payload Commercial Collaborative Agv/AMR Robot
