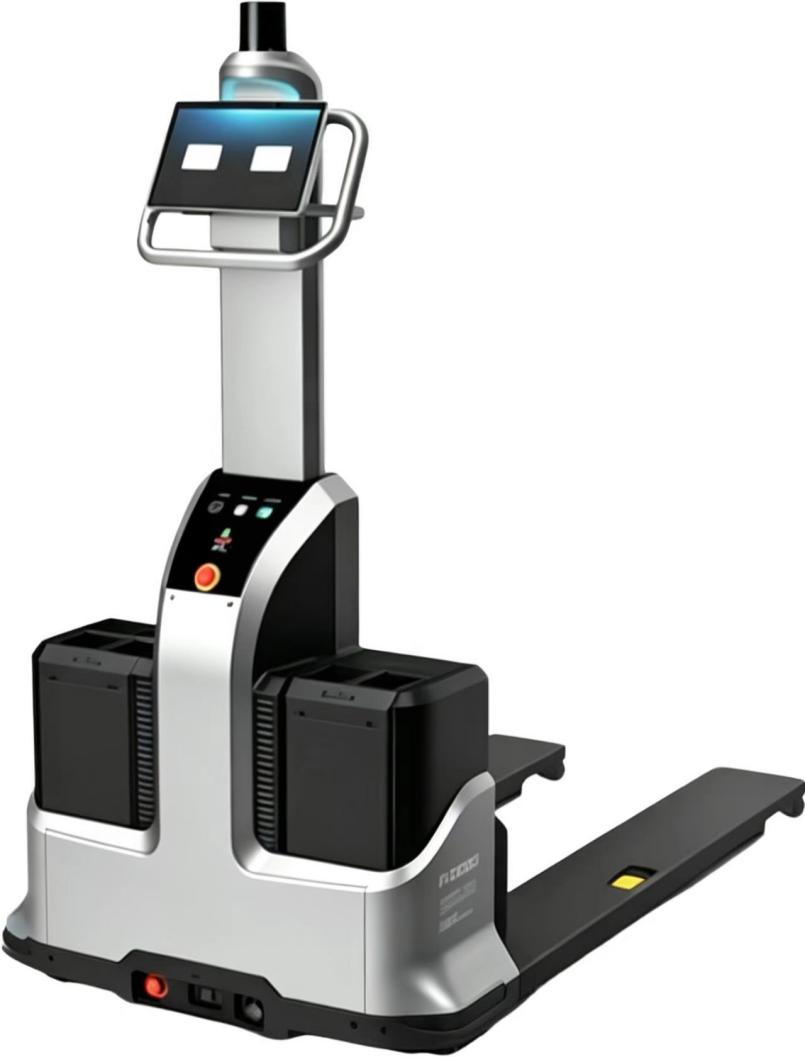

AI Delivery Robot-P1500,Lidar SLAM system with a payload capacity of 1500 kg
AI Delivery Robot-P1500,Lidar SLAM system with a payload capacity of 1500 kg
Specifications
Model Number :
P1500
Brand Name :
wellwit
Place of Origin :
CHINA
Description

              Product Features

Optimal passability without channel modification

Human-Computer Interaction: All in One Screen

Fully electric drive with closed-loop control, requiring minimal maintenance and offering enhanced stability.

Comprehensive perception, ensuring safety with no blind spots

Battery replacement without power interruption ensures orderly workflow progression.

Extreme Cost, Optimal Performance

Multiple Security Collision Protection Strips

However, it can be customized to meet specific customer requirements.




                       Product Specification

essential parameter

name

Latent-Lifting Transportation Robot-W500DL

Navigation Method

LiDAR Navigation

Driving Method

motor-driven

Length*Width*Height (L*W*H)

1532 × 790 × 1500 mm (whole vehicle)

1220*186 mm (fork)

Self-weight (including battery)

260KG (±10KG)

maximum load

1500KG

Tray Type

Chuan Character (Earth Dimension Scene)

Minimum ground clearance height for forked noodles

90mm

The maximum height of the forked noodles above the ground

210mm

radius of turn

840mm

Fork outer width

600/680mm

Network Communication

n/Ethernet Wi-Fi 802.11 a/b/g/n/ac

Environmental temperature and humidity range

Temperature: 0–50°C / Humidity: 10–90%, no compression condensation

IP Level [1]

IP20

Navigation Position Accuracy [3]

±10mm

Navigation Angle Precision [3]

±0.5°

Navigation Speed (Adjustable)

≤1.2m/s

Battery Parameters

battery capacity

48V/20Ah lithium iron phosphate battery

Total Range

8h

Charging Time (10–80%)

≤1h

Charging Method

Manual/Auto

scram button

√

loudspeaker

√

ambient lighting

√

Impact Strip

Optional

function

Number of LiDARs

1 Navigation Laser; 4 Obstacle-Avoidance Lasers

Wi-Fi Roaming Feature

√

3D Obstacle Avoidance Function [3]

Optional

Remote Emergency Stop [4]

Optional

Stack Plate Identification [3]

Optional

HMI display screen

√

Tooth spacing sensor

√
