SMD Cell Phone Vibration Motor Solderable Vibration Motor For Medical Device
SMD Cell Phone Vibration Motor Solderable Vibration Motor For Medical Device
SMD Cell Phone Vibration Motor Solderable Vibration Motor For Medical Device
SMD Cell Phone Vibration Motor Solderable Vibration Motor For Medical Device
Specifications
Brand Name :
LNLON
Model Number :
S3070P-300008790-0020
Certification :
ISO9001, ISO14001, QC080000, RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
3000000pcs per month
Delivery Time :
7 days
Packaging Details :
280*233*250mm carton with 4000pcs
Size :
11.6*4*3.18mm
Voltage :
2.7V DC
Current :
85mA Max
Speed :
14000±2500rpm
Vibration force :
0.35G @100g jig
Response time :
about 40mS
Life :
2.7V, 2.5S on,2.5S off，300000 cycles
Appilication :
Medical Device, phone, watch, brachet,massager,cosmetic, toothbrush, electronic cigarette
Product name :
Reflow Solderable Vibration Motor
Description

SMD Vibra Height Reflow Solderable Vibration Motor for Medical Device

Product Information:

model S3070P-300008790-0020
size 11.6*4*3.18mm
rated voltage 2.7V
starting voltage 2.3V DC Max
operating voltage 2.3~3.2V DC
rated speed 14000±2500rpm
rated current 85 mA Max
stall current 90 mA Max
Vibration Strength 0.35G @100g jig
response time about 40mS
life 2.7V, 2.5S on,2.5S off,300000 cycles
terminal resistance 33Ω±6Ω
insulation resistance 1MΩ Min
mechanical noise ＜45db(A) Max


SMD Cell Phone Vibration Motor Solderable Vibration Motor For Medical Device

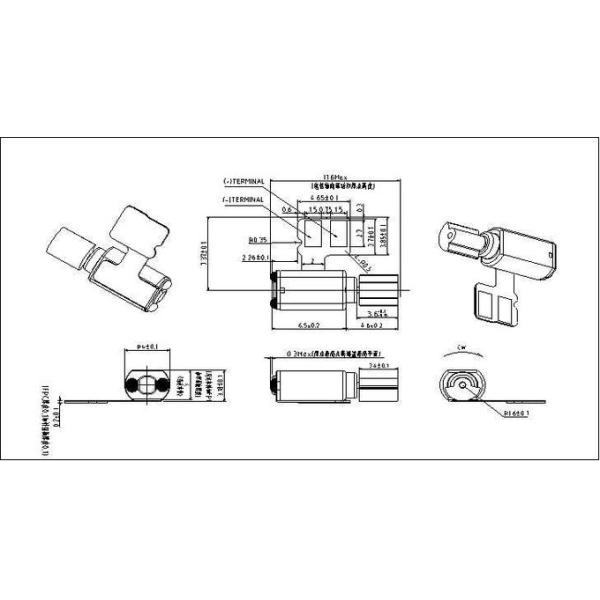

Outline drawing:

SMD Cell Phone Vibration Motor Solderable Vibration Motor For Medical Device

Application:

This Reflow Solderable Vibration Motors is mainly used for Medical Device, phone, wearable device, watch, brachet, massager,cosmetic, toothbrush, electronic cigarette.

Our Main Products:

Except this Reflow Solderable Vibration Motor, we also have the following series:

SMD Cell Phone Vibration Motor Solderable Vibration Motor For Medical Device

Certification:

This Reflow Solderable Vibration Motors is cerficated for ISO9001, ISO14001, GBT 28001,QC080000,RoHS.

SMD Cell Phone Vibration Motor Solderable Vibration Motor For Medical Device

Major Customer:

Huawei, OPPO, vivo, Lenovo, MOTO, Transsion...

About US:

Chongqing Linglong Electronic Co., Ltd. is engaged in the development, manufacturing and marketing of micro vibration motor more than 10 years with an annual output of 0.15 billion units and above, including coin motor, SMD motor, linear motor, gear motor and stepper motor.

Linglong has its own independent team for R&D of motor and automation equipment, which enhance to develop new product and lower cost. Also the mature and advanced production lines guarantee large capacity and good quality. We have built a complete system for process, management and sales-service to better serve our clients.

SMD Cell Phone Vibration Motor Solderable Vibration Motor For Medical Device

Workshop:

SMD Cell Phone Vibration Motor Solderable Vibration Motor For Medical Device

Equipment:

SMD Cell Phone Vibration Motor Solderable Vibration Motor For Medical DeviceSMD Cell Phone Vibration Motor Solderable Vibration Motor For Medical Device

Packaging & Shipping
1. Packaging: 280*233*250mm carton with 4000pcs.
2. Shipping: By Air, Fedex, DHL, UPS, SF, etc for samples and batch goods, customer to pay for freight.

SMD Cell Phone Vibration Motor Solderable Vibration Motor For Medical Device

For more Reflow Solderable Vibration Motors, please contact us.
