GCr15 Material Regular Polyhedron Prism 36 Sides Customized Grade
GCr15 Material Regular Polyhedron Prism 36 Sides Customized Grade
Specifications
MOQ :
1 piece
Payment Terms :
L/C,T/T
Supply Ability :
500/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Place of Origin :
Shenzhen
Brand Name :
SPR-ing
Price :
3000~5000 USD
Number Of Sides :
36
Transparency :
Transparent
Material :
GCr15
Application :
Optical experiments
Surface Finish :
Polished
Refractive Index :
1.5
Description

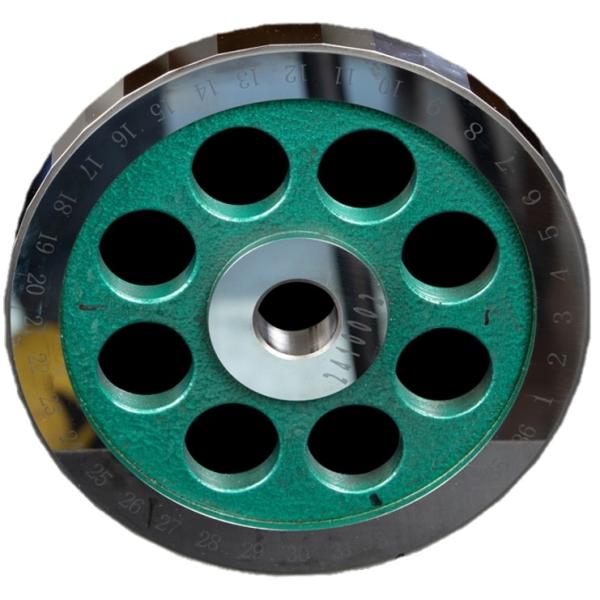

36 Sides Regular Polyhedron Prism

GCr15 Material Regular Polyhedron Prism 36 Sides Customized GradeGCr15 Material Regular Polyhedron Prism 36 Sides Customized Grade

Technical Indicators

1. Excircle diameter: φ 80-φ 150mm;

2. Prism thickness: 17-20mm;

3. Rotating center aperture: φ25mm; Material: GCr15;

5. Hardness: HRC62-65;

6. Flatness of working face: Grade 0 (Grade II): ≤ 0.03um; Grade 1 (Grade III): ≤ 0.05um; Grade 2 (Grade 4): ≤ 0.1 um; [Customized class 00 (first class): ≤ 0.02 um;]

7,Flatness of datum plane: Grade 0 (Grade II): ≤ 1um; Grade 1 (Grade III): ≤ 1.5 um; Grade 2 (Grade 4): ≤ 1.5 um; [Customized Grade 00 (Grade I): ≤ 1um;]

8,Verticality of working surface to datum plane: Grade 0 (Grade II): ≤ ± 10 ″; Grade 1 (Grade III): ≤ ± 15 ″; Grade 2 (Grade 4): ≤ ± 20 ″; [Customized Grade 00 (Grade I): ≤ ± 5 ″;]

9. Surface roughness of working face: Ra ≤ 0.025um;

10. Surface roughness of datum plane: Ra ≤ 0.05 um;

11. Parallelism between the upper surface and the datum plane: 2 um;

12. Working angle deviation: Grade 0 (Grade II): ≤ ± 1 ″; Grade 1 (Grade 3): ≤ ± 2 ″; Grade 2 (Grade 4): ≤ ± 5 ″; [Customized Grade 00 (Grade I): ≤ ± 0.5 ″;]

13. Measurement uncertainty of working angle: Class 0 (Class II): ≤ 0.3 ″; Grade 1 (Grade III): ≤ 0.5 ″; Grade 2 (Grade 4): ≤ 1.0 ″; [Customized level 00 (first class): ≤ 0.2 ″;]

14,Effective working area of working face: circular area with S ≥ φ15mm (or 15mm * 15mm or D15mm);

parameters

Name

Model

Specification

Precision

Manufacturing deviation of working angle

Circumscribed circle diameter

Flatness of working surface

Verticality between working surface and positioning surface

Surface roughness of working surface Ra

8-sided prism

LT-8

8 sides

Level 0

±1″

Φ80mm

0.03μm

±10″

≤0.025

Level I

±2″

0.05μm

±15″

12-sided prism

LT-12

12 sides

Level 0

±1″

Φ100mm

0.03μm

±10″

≤0.025

Level I

±2″

0.05μm

±15″

17-sided prism

LT-17

17 sides

Level 0

±1″

Φ100mm

0.03μm

±10″

≤0.025

Level I

±2″

0.05μm

±15″

23-sided prism

LT-23

23 sides

Level 0

±1″

Φ120mm

0.03μm

±10″

≤0.025

Level I

±2″

0.05μm

±15″

24-sided prism

LT-24

24 sides

Level 0

±1″

Φ120mm

0.03μm

±10″

≤0.025

Level I

±2″

0.05μm

±15″

36-sided prism

LT-36

36 sides

Level 0

±1″

Φ150mm

0.03μm

±10″

≤0.025

Level I

±2″

0.05μm

±15″
