Specifications
Brand Name :
SPR-ing
Model Number :
SP030008
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Insulation Resistance :
1000MΩ @ 500VDC
Rotating Speed :
100000RPM
Current :
1 A/circuit
Work Speed :
0~20000rpm
Feture :
high speed
Working Temperature :
Copper graph / Gold to Gold
Fiber Channel :
1*fiber
Voltage Range :
0∼440VAC/VDC
Rotation Way :
Flange installation
Working Speed :
0~3000rpm
Through Bore Size :
40 mm
Lead Length :
300mm
Channel :
1~10
Voltage :
400Vac/Vdc
Isolation :
≥40dB
Description

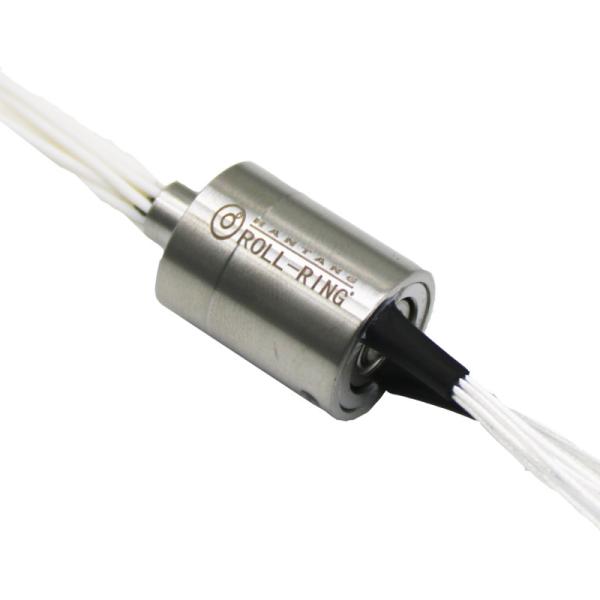

Friction Pair Technology High Speed Slip Ring

SP030008 series high-speed slip ring

This miniature high-speed long-life slip ring has a speed of 10000 revolutions per minute and a lifespan of 10 million revolutions per minute, with stable performance!

As one of our key technologies, high-speed slip rings have been successfully applied in various high-speed testing scenarios with stable signal transmission.

Application areas: Used for high-speed testing platform strain gauge signals, thermocouple signals, etc., such as aircraft engine testing, high-speed rail component testing, automotive wheel hub performance testing!

Technical parameters

Electrical specifications

Design loop

8

Insulation resistance

220MΩ/250V/DC

Current

240VDC/1A

Dielectric strength

≥300VAC/50Hz/60s

Dynamic resistance change value

≤10mΩ

Wire length

Standard 200mm (adjustable according to requirements)

Mechanical specifications

Rated speed

0-10000 rpm

Working life

100 million circle

Operating temperature

-40℃ ~ 80℃

Operating humidity

0～80%RH

Contact material

Gold-gold

Shell material

Alluminum alloy

Technical advantages:

ü Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life.

ü Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.

ü Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.

ü Precision component manufacturing process: dimensional tolerance<0.01mm, axial displacement<0.01mm, high precision, and more stable performance.

ü Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3.

ü Small in size and compact in structure, it can meet the space constraints of users.

ü High speed, this slip ring can reach a maximum speed of 10000 revolutions per minute.
