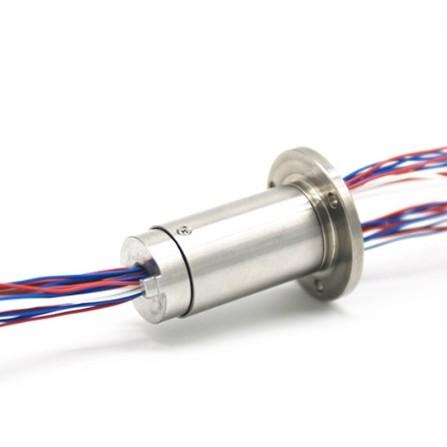

SP040018-018-G18 High Speed Slip Ring 18000rpm Electrical Slip Rings Industrial
SP040018-018-G18 High Speed Slip Ring 18000rpm Electrical Slip Rings Industrial
SP040018-018-G18 High Speed Slip Ring 18000rpm Electrical Slip Rings Industrial
SP040018-018-G18 High Speed Slip Ring 18000rpm Electrical Slip Rings Industrial
Specifications
Brand Name :
SPR-ing
Model Number :
SP040018-018-G18
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Design loops :
18
Insulation resistance :
≥250MΩ/250V/DC
Rated voltage/current :
80VDC/1A
Electrical strength :
≥300VAC/50Hz/60s
Continuous working time :
96 hours
Description

SP040018-018-G18 Long Life High Speed Slip Rings

High-speed slip rings are one of the core key technologies of our company. This high-speed slip ring adopts the latest technology and technology, the speed is 18000 rpm, and it can work continuously for 96 hours!

  • Technical Advantages:

    1. SPR-ing's core technology - friction pair technology: gold-gold contact technology ensures a long service life.

    2. Integrated pouring process: ensure that the concentricity of the ring groove and the bearing is ≤0.01mm.

    3. Mirror processing technology: ensure that the finish of the contact surface of the slip ring can reach Ra0.02, and the contact is more reliable.

    4. Manufacturing process of precision parts: dimensional tolerance <0.01mm, high precision and more stable performance.

    5. Advanced brush filament modulation process: close to zero pressure brush design and debugging process, the life of the slip ring is extended by 1/3.

    6. Small size and compact structure, which can meet the space constraints of users.

    7. The slip ring adopts the integral 304 stainless steel metal structure, which has strong sealing and is suitable for extremely harsh environments.

    8. High speed, the maximum speed of this slip ring can reach 18000 rpm.

    9. Long life, at a speed of 18000 rpm, it can work continuously for 96 hours.

Technical parameters

Electrical Specifications

Design loops

No. 18

Insulation resistance

≥250MΩ/250V/DC

Rated voltage/current

80VDC/1A

Electrical strength

≥300VAC/50Hz/60s

Dynamic resistance change value

≤10mΩ

Wire length

Standard 400mm (can be adjusted upon request)

Mechanical technical indicators

Dimensions

The outer diameter is 40mm, and the length is 58.5mm

Rated speed

18000 rpm

Working life

96 hours

Operating temperature

-50℃～80℃

Operating humidity

0～80%RH

Contact with the material

Kim-Kim

Housing material

304 stainless steel

Maximum starting torque

0.5N.cm

Ingress protection

IP51-IP68

Applications: Used for high-speed test platform strain gauge signals, thermocouple signals, etc., such as aero engine testing, high-speed rail component testing, automotive wheel hub performance testing!
