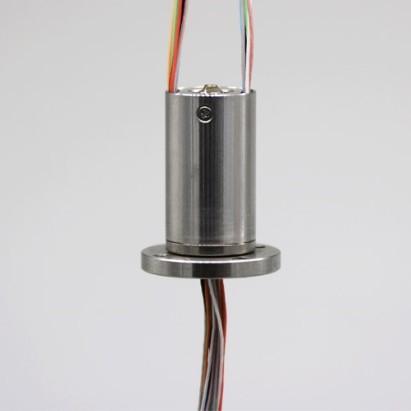

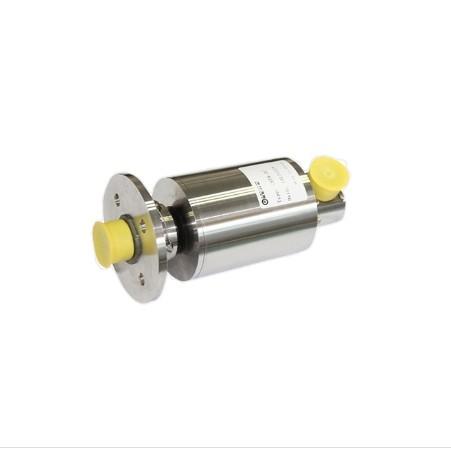

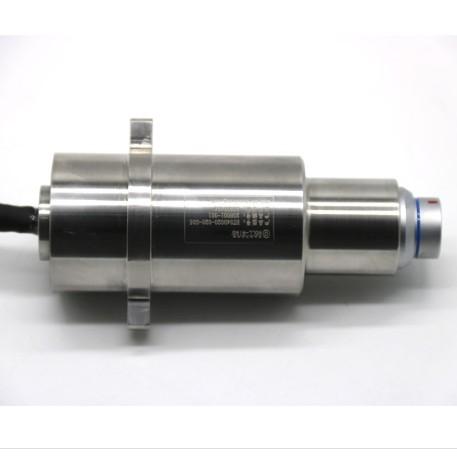

5000rpm High Speed Slip Rings 20 Rings 26 Rings 28 Rings Small Slip Ring
5000rpm High Speed Slip Rings 20 Rings 26 Rings 28 Rings Small Slip Ring
5000rpm High Speed Slip Rings 20 Rings 26 Rings 28 Rings Small Slip Ring
5000rpm High Speed Slip Rings 20 Rings 26 Rings 28 Rings Small Slip Ring
5000rpm High Speed Slip Rings 20 Rings 26 Rings 28 Rings Small Slip Ring
5000rpm High Speed Slip Rings 20 Rings 26 Rings 28 Rings Small Slip Ring
Specifications
Brand Name :
SPR-ing
Model Number :
SP040028-G05
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Design loops :
20 rings, 26 rings, 28 rings
Insulation resistance :
110MΩ/100VDC
Rated voltage/current :
100VDC/1A
Electrical strength :
250VDC/50Hz/60s
Rated speed :
5000 rpm
Working life :
50 million rpm
Description

170 Hours Continuous Working Slip Ring Rail Test High-speed Slip Rings

5000rpm High Speed Slip Rings 20 Rings 26 Rings 28 Rings Small Slip Ring

The G05 series high-speed slip rings are designed with a maximum speed of 5000rpm and can work continuously for no less than 170h.

  • Up to 300g in shock and vibration environment
  • IP65 protection level can work normally in rainy and snowy weather
  • -40°C -+120°C temperature resistance range G05 high-speed slip rings are especially suitable for continuous testing projects, such as high-speed rail, engine copying machine testing, etc.

Technical Advantages:
  1. SPR-ing's core technology - friction pair technology: The gold-gold contact technology ensures an ultra - long service life and contact reliability.
  1. Two decades of brush pressure simulation technology and molding process maintain the optimal balance between the working life and reliability of the slip ring.
  1. Integrated pouring process: It ensures that the concentricity of the ring groove and the rotary shaft system is ≤0.01mm.
  1. Mirror processing technology: It ensures that the finish of the contact surface of the slip ring can reach Ra0.02, making the contact more reliable.
  1. Manufacturing process of precision parts: The dimensional tolerance is <0.01mm, featuring high precision and more stable performance.
  1. Special structure design, with no external screws, can meet users' special space anti - vibration requirements and safety requirements.
  1. Capable of continuous operation at a high speed of 5000rpm for 170 hours without cooling.

Technical parameters

Electrical Specifications

Design loops

20 rings, 26 rings, 28 rings

Insulation resistance

110MΩ/100VDC

Rated voltage/current

100VDC/1A

Electrical strength

250VDC/50Hz/60s

Dynamic resistance change value

≤10mΩ

Wire length

The rotor is connected to the plug, and the stator is 300mm+ plug

Mechanical technical indicators

Product dimensions

The outer diameter is 37.5mm, and the length is 91mm

Rated speed

5000 rpm

Working life

50 million rpm

Operating temperature

-40°C~120°C

Operating humidity

≤60%

Contact with the material

Kim-Kim

Housing material

Aluminum alloy

Maximum starting torque

0.5N.cm

Ingress protection

IP51-IP68

Applications: For dynamic strain, dynamic temperature and other weak signal acquisition!
