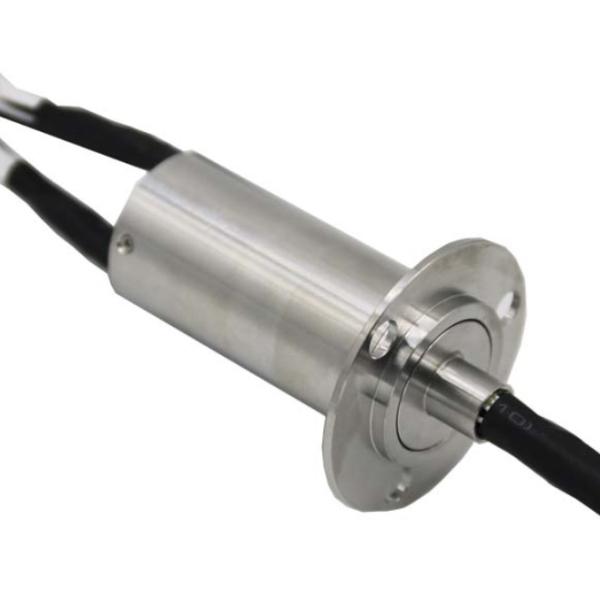

36 Loop Conductive Slip Ring 303 Stainless Steel Material Flange Mounting
36 Loop Conductive Slip Ring 303 Stainless Steel Material Flange Mounting
36 Loop Conductive Slip Ring 303 Stainless Steel Material Flange Mounting
36 Loop Conductive Slip Ring 303 Stainless Steel Material Flange Mounting
36 Loop Conductive Slip Ring 303 Stainless Steel Material Flange Mounting
36 Loop Conductive Slip Ring 303 Stainless Steel Material Flange Mounting
36 Loop Conductive Slip Ring 303 Stainless Steel Material Flange Mounting
36 Loop Conductive Slip Ring 303 Stainless Steel Material Flange Mounting
Specifications
Brand Name :
SPR-ing
Model Number :
SP025
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Dielectric Strength :
≥500VAC@50Hz
Maximum Current :
2A
Conducting Material :
Copper
Working Temperature :
-20°C to 60°C
Insulation Resistance :
≥1000MΩ
Housing Material :
Aluminum
Rotating Speed :
500rpm
Connection Type :
Lead Wires
Protection Grade :
IP54
Size :
Small
Maximum Voltage :
240V
Contact Resistance :
≤10mΩ
Number Of Circuits :
2
Mounting Method :
Flange Mounting
Description

36 Loop Conductive Slip Ring 303 Stainless Steel Material Flange Mounting

36 Loop Conductive Slip Ring 303 Stainless Steel

Technical parameters

Electrical specifications

Design loop

36,56

Insulation resistance

500MΩ/500V/DC

Rated voltage/current

0-240VDC /Max 2A

Dielectric strength

250VAC/50Hz/60s

Dynamic resistance change value

≤10mΩ

Mechanical specifications

Rated speed

0-250 rpm

Working life

10 million rpm

Operating temperature

-40℃ ~ 85℃

Contact material

Gold-gold

Shell material

303 stainless steel

Boundary dimension with flange

Number of rings

The size of A

The size of B

36 rings

66mm

52.40mm

56 rings

89mm

75.30mm

36-ring combination mode

36-way 2A

4-way 5A, 28-way 2A

4-way 10 A, 20-way 2A

56 ring combination mode

56-way 2A

4-way 5A, 48-way 2A

4-way 10 A, 40-way 2A

Factory View

36 Loop Conductive Slip Ring 303 Stainless Steel Material Flange Mounting

Technical advantages

ü Gold-gold contact, high conductivity, good thermal conductivity, small temperature coefficient of resistance (resistance to vulcanization, oxidation, corrosive gases, etc.), a certain hardness, good wear resistance (good fusion welding resistance, resistance to arc corrosion and burns).

ü Integrated pouring process: ensure that the concentricity of the ring groove and the bearing is ≤ 0.01 mm.

ü Mirror processing technology: ensure that the contact surface finish of the slip ring can reach Ra0.02, and the contact is more reliable.

ü Precision component manufacturing process: dimensional tolerances＜0.01mm, High precision, more stable contact.

ü The service life of the slip ring is prolonged by 1/3 due to the brush design and debugging process close to zero pressure.

ü Small size, compact structure, can meet the user's space constraints.

ü The slip ring is made of integral stainless steel metal structure, which is suitable for extremely harsh environment.
