Compact Capsule Slip Ring 1A 50 Channels Slip Ring manufacturer for Camera Gimbal
Compact Capsule Slip Ring 1A 50 Channels Slip Ring manufacturer for Camera Gimbal
Compact Capsule Slip Ring 1A 50 Channels Slip Ring manufacturer for Camera Gimbal
Compact Capsule Slip Ring 1A 50 Channels Slip Ring manufacturer for Camera Gimbal
Compact Capsule Slip Ring 1A 50 Channels Slip Ring manufacturer for Camera Gimbal
Compact Capsule Slip Ring 1A 50 Channels Slip Ring manufacturer for Camera Gimbal
Specifications
Brand Name :
SPR-ing
Model Number :
SP013028
Place of Origin :
Shenzhen
MOQ :
1
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1 week
Packaging Details :
Carton
Rated Speed :
0-100rpm
Service Life :
10⁷ rpm
Design Loop :
26/28/50 (L=49.5)
Starting Torque :
1N·cm
Weigh :
<50g (Excl. Wire)
Dynamic Resistance :
≤15mΩ
Description

Designed for demanding industrial environments, the SP013028 slip ring provides reliable power and signal transmission up to 240VDC. Its low dynamic resistance fluctuation and precision manufacturing ensure long-term stability and minimal maintenance.


Technical parameters

Electrical specifications

Design loop

26,28,50( L=49.5)

Insulation resistance

500MΩ/500V/DC

Rated voltage/current

0-240VDC /Max 1A

Dielectric strength

500VAC/50Hz/60s

Dynamic resistance change value

≤15mΩ

Mechanical specifications

Rated speed

0-100 rpm

Working life

10 million rpm

Operating temperature

-40℃ ~ 80℃

Operating humidity

≤80%

Contact material

Gold-gold

Shell material

303 stainless steel

Maximum starting torque

1 N.cm

Weight

<50g (not include wire)

Wire specifications

AFR250-0.05mm²

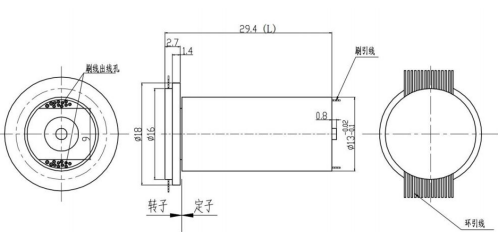

Outline Drawing

Compact Capsule Slip Ring 1A 50 Channels Slip Ring manufacturer for Camera Gimbal

Technical advantages:

ü Gold gold contact has high conductivity, good thermal conductivity, low temperature coefficient of resistance (with characteristics such as resistance to sulfurization, oxidation, and corrosive gases), and good hardness and wear resistance (with good resistance to welding, arc corrosion, and burns).

ü Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.

ü Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.

ü Precision component manufacturing process: dimensional tolerance<0.01mm, high precision, and more stable contact.

ü The design and debugging process of the electric brush, which is close to zero pressure, has extended the life of the slip ring by 1/3.

ü Small in size and compact in structure, it can meet the space constraints of users.
