Miniature Slip Ring 44 Channels Compact Electrical Rotary Connector for Robotics
Miniature Slip Ring 44 Channels Compact Electrical Rotary Connector for Robotics
Miniature Slip Ring 44 Channels Compact Electrical Rotary Connector for Robotics
Miniature Slip Ring 44 Channels Compact Electrical Rotary Connector for Robotics
Miniature Slip Ring 44 Channels Compact Electrical Rotary Connector for Robotics
Miniature Slip Ring 44 Channels Compact Electrical Rotary Connector for Robotics
Specifications
Brand Name :
SPR-ing
Model Number :
SP016044
Place of Origin :
Shenzhen
MOQ :
1
Price :
200-800USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1 week
Packaging Details :
Carton
Rotating Speed :
0-100 rpm
Design loop :
≤44
Working Life :
5 million rpm
Dynamic Resistance Change :
≤20mΩ
Working Temperature :
-55℃ ~ 85℃
Maximum Current :
1A
Shell Material :
Stainless steel
Contact material :
Gold-gold
Description

SP016044 series products are tailored for small space slip rings required by different systems, meeting the full performance conditions of launch, storage, and operation. The special manufacturing process ensures superior slip ring performance retention during long-term storage of equipment

Technical parameters

Electrical specifications

Design loop

≤44

Insulation resistance

250MΩ/250V/DC

Rated voltage/current

48VDC /1A

Dielectric strength

>200VAC/50Hz/60s

Dynamic resistance change value

≤20mΩ

Mechanical specifications

Rated speed

0-100 rpm

Working life

5 million rpm

Operating temperature

-55℃ ~ 85℃

Contact material

Gold-gold

Shell material

Stainless steel

Maximum starting torque

0.4 N.cm

Weight

<20g (not include wire)

IP grade

IP51~IP68 optional

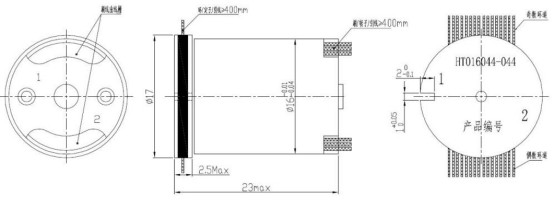

Outline Drawing

Miniature Slip Ring 44 Channels Compact Electrical Rotary Connector for Robotics


Technical advantages:

ü Gold gold contact has high conductivity, good thermal conductivity, low temperature coefficient of resistance (with characteristics such as resistance to sulfurization, oxidation, and corrosive gases), and good hardness and wear resistance (with good resistance to welding, arc corrosion, and burns).

ü Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.

ü Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.

ü Precision component manufacturing process: dimensional tolerance<0.01mm, high precision, and more stable contact.

ü The design and debugging process of the electric brush, which is close to zero pressure, has extended the life of the slip ring by 1/3.

ü Small in size and compact in structure, it can meet the space constraints of users.

ü The slip ring adopts an integral stainless steel metal structure, which is suitable for extremely harsh environments.
