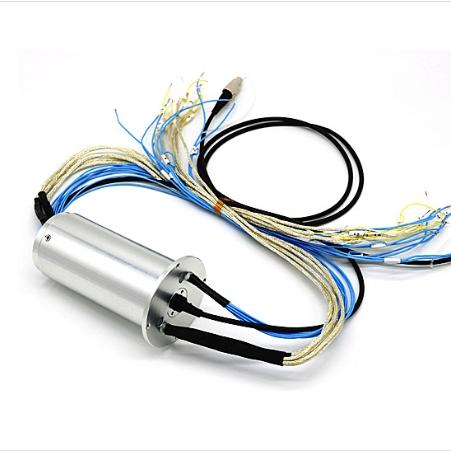

12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact
12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact
12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact
12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact
12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact
12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact
Specifications
Brand Name :
SPR-ing
Model Number :
SP045028-G18
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Working loops :
12-20-28 channels are optional
Insulation resistance :
≥110MΩ/250V/DC
Contact Material :
Gold-gold
Rated voltage/current :
80VDC/1A
Electrical strength :
≥250VAC/50Hz/60s
Rated speed :
2000-18000 rpm
Working life :
100 million revolutions
Description
12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact
Product Overview

This high-speed slip ring features our company's core technology, requiring no cooling device while delivering exceptional performance. With wire outputs at both ends, it supports speeds up to 18,000 rpm, adaptable to various operational requirements.

12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact
Technical Specifications
Attribute Value
Working loops 12-20-28 channels are optional
Insulation resistance ≥110MΩ/250V/DC
Contact Material Gold-gold
Rated voltage/current 80VDC/1A
Electrical strength ≥250VAC/50Hz/60s
Rated speed 2000-18000 rpm
Working life 100 million revolutions
Detailed Technical Parameters
Electrical Specifications
Dynamic resistance change value ≤10mΩ
Wire length Standard 600mm (customizable)
Mechanical Specifications
Operating temperature -20℃～80℃
Operating humidity 25～95%RH
Housing material 304 stainless steel
Maximum starting torque <2N.cm
Ingress protection IP65
Technical Advantages
  1. Core Friction Pair Technology: Gold-gold contact ensures stable low-voltage signal transmission
  2. Integrated Pouring Process: ≤0.01mm concentricity between ring groove and bearing
  3. Mirror Processing Technology: Ra0.02 surface finish for reliable electrical contact
  4. Precision Manufacturing: <0.01mm dimensional tolerance for consistent performance
  5. Advanced Brush Design: Near-zero pressure extends lifespan by 30%
  6. Compact Design: Adapts to space-constrained applications
  7. Robust Construction: 304 stainless steel housing for harsh environments
  8. High-Speed Operation: No cooling system required, up to 18,000 rpm
  9. Continuous Operation: 90 hours at 18,000 rpm
Packaging & Shipping

The Mini Slip Ring is securely packaged in compact boxes and shipped within 1-2 business days. Customers can select preferred shipping methods during checkout.

Frequently Asked Questions
Q: What is the brand of the Mini Slip Ring product?
A: The brand name is SPR-ing.
Q: What is the model number?
A: The model number is SP025.
Q: Where is it manufactured?
A: The product is made in Jiujiang.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1.
Q: What payment methods are accepted?
A: We accept L/C and T/T payments.
12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact 12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact 12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact 12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact 12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact 12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact 12-28 Channel Mini Slip Ring 18000 RPM Gold-Gold Contact
