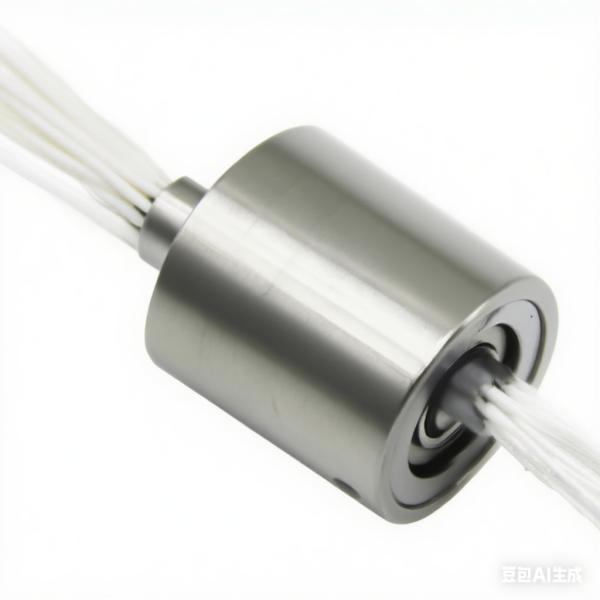

High Speed Conductive Slip Ring 3000 RPM 6 Circuits 2A Aerospace Grade Bearing Dynamic Balanced Rotary Joint
High Speed Conductive Slip Ring 3000 RPM 6 Circuits 2A Aerospace Grade Bearing Dynamic Balanced Rotary Joint
High Speed Conductive Slip Ring 3000 RPM 6 Circuits 2A Aerospace Grade Bearing Dynamic Balanced Rotary Joint
High Speed Conductive Slip Ring 3000 RPM 6 Circuits 2A Aerospace Grade Bearing Dynamic Balanced Rotary Joint
High Speed Conductive Slip Ring 3000 RPM 6 Circuits 2A Aerospace Grade Bearing Dynamic Balanced Rotary Joint
High Speed Conductive Slip Ring 3000 RPM 6 Circuits 2A Aerospace Grade Bearing Dynamic Balanced Rotary Joint
Specifications
Dynamic Balance Grade :
G2.5 (ISO 1940)
Brand Name :
CENO
Model Number :
CBSR-HS-3000-6
Price :
USD 200-600 / Piece
Dielectric Strength :
500V AC @ 60Hz
Number of Circuits :
6
IP Rating :
IP55
Rated Current :
2A per circuit
MOQ :
1 Piece
Supply Ability :
2000 Pieces per Month
Packaging Details :
Precision-machined foam insert in reinforced case, export-grade wooden crate for high-value units
Rated Voltage :
240V AC/DC
Certification :
ISO 9001:2015, CE, RoHS
Payment Terms :
T/T, L/C, Western Union
Contact Material :
Gold Alloy with Spring Tension
Bearing Type :
Aerospace-Grade ABEC-7
Housing Material :
Stainless Steel 304
Place of Origin :
Guangdong, China
Delivery Time :
5-7 working days for stock, 20-30 days for production
Max Operating Speed :
3000 RPM
Electrical Noise :
≤25mΩ at 3000 RPM
Insulation Resistance :
500MΩ @ 500VDC
Operating Temperature :
-40°C to +100°C
Description

High Speed Conductive Slip Ring CBSR-HS-3000-6

The CBSR-HS-3000-6 high speed conductive slip ring is precision-engineered for continuous operation at 3000 RPM, making it the premier choice for demanding high-speed rotating applications. Built around aerospace-grade ABEC-7 precision bearings and dynamically balanced to G2.5 grade per ISO 1940, this rotary joint maintains reliable gold alloy contact performance even at maximum rated speed, delivering consistent electrical transmission where standard slip rings would fail.

Key Features

  • 3000 RPM Continuous Rating — Engineered from the ground up for high-speed operation, with specialized brush tension system maintaining consistent contact pressure across the full RPM range
  • Aerospace-Grade ABEC-7 Bearings — Ultra-precision ball bearings with tight tolerances for minimal runout and extended service life under continuous high-speed conditions
  • G2.5 Dynamic Balance — Factory balanced to ISO 1940 G2.5 grade, ensuring smooth vibration-free operation and reduced bearing wear
  • Gold Alloy Brush System — Specialized gold alloy contacts with calibrated spring tension maintain reliable electrical connection without excessive wear at high rotational velocities
  • Stainless Steel 304 Housing — Corrosion-resistant housing provides structural rigidity and thermal stability across the -40°C to +100°C operating range

Applications

Optimized for centrifuge rotor signal transmission, high-speed packaging machinery, turbine blade testing instrumentation, rotary fatigue test rigs, high-speed camera slip ring assemblies, and precision automation spindles requiring reliable multi-circuit electrical connection at elevated rotational speeds.

Technical Specifications

ParameterValue
Max Speed3000 RPM
Circuits6 x 2A
Bearing GradeABEC-7
Balance GradeG2.5
