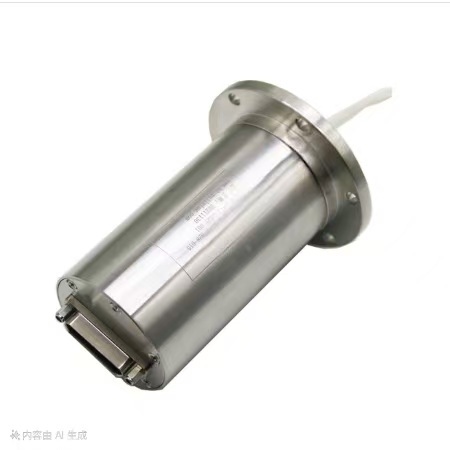

Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint
Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint
Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint
Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint
Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint
Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint
Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint
Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint
Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint
Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint
Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint
Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint
Specifications
Brand Name :
SPR-ing
Model Number :
SP035018-A
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Channel :
18
Productname :
Conductive Slip Ring
Protection Grade :
IP51
Working life :
10 million circle
Rated speed :
5000 rpm
Maximum Current :
1A
Housingmaterial :
stainless steel
Application :
Wind turbines, robotics, medical equipment, radar systems
Mountingtype :
Flange, through-bore, or shaft-mounted
Dielectric Strength :
≥300VAC/50Hz/60s
Dynamic Resistance Change :
≤10mΩ
Weight :
≤105g
Description
Industrial Slip Ring Factory High Reliability Rotary Electrical Joint

The SP035018-A Mini Electric Slip Ring is a compact and high-performance rotary transmission solution designed for reliable power and signal transfer in rotating systems. Featuring 18 circuits, 1A current per circuit, and a maximum speed of 5000 RPM, it delivers stable operation and long service life in demanding applications.

Utilizing advanced gold-to-gold contact technology, the slip ring provides low electrical noise, excellent conductivity, and dynamic resistance variation of ≤10mΩ. Its stainless steel housing, precision manufacturing process, and integrated structure ensure durability, smooth rotation, and reliable performance even in harsh environments.

With a lifespan of over 10 million revolutions, operating temperatures from -40°C to +80°C, and convenient color-coded terminal connections, the SP035018-A is an ideal choice for industrial automation, robotics, radar systems, rotating platforms, test equipment, and other high-speed rotating applications.

Technical Specifications
Electrical Specifications
Design Loop 18
Insulation Resistance 250MΩ/250V/DC
Current 1A
Dielectric Strength ≥300VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 5000 rpm
Working Life 10 million revolutions
Operating Temperature -40℃ ~ 80℃
Operating Humidity 0～80%RH
Contact Material Gold-gold
Shell Material Stainless steel
Maximum Starting Torque 0.5N.cm
Weight ≤105g
IP Grade IP51
Outline Drawing
Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint Industrial 18 Circuits Conductive Slip Ring with 5000 RPM and Stainless Steel Housing for Reliable Rotary Electrical Joint
Typical Applications
  • Industrial Automation Equipment
  • Robotics and Motion Control Systems
  • Rotary Indexing Tables
  • Packaging and Labeling Machines
  • Automated Inspection Equipment
  • Semiconductor Manufacturing Equipment
  • Rotating Sensors and Monitoring Devices
  • High-Speed Testing and Measurement Systems
  • Smart Manufacturing Production Lines
  • Aerospace and Defense Test Platforms
  • Cable Reels and Rotating Machinery
  • Speed Measurement and Encoder Systems
Why Choose SP035018-A?

With its high rotational speed, compact structure, long service life, and stable signal transmission performance, the SP035018-A High Speed Slip Ring is an ideal solution for engineers and OEM manufacturers seeking reliable rotary electrical connections in space-constrained and high-performance applications.

Technical Advantages
  • Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life
  • Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm
  • Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable
  • Precision component manufacturing process: dimensional tolerance<0.01mm, axial displacement<0.01mm, high precision, and more stable performance
  • Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3
  • Small in size and compact in structure, it can meet the space constraints of users
  • Stainless steel structure: sturdy and durable, with strong sealing, suitable for extremely harsh environments
  • Color code recognition interface: easy to install
