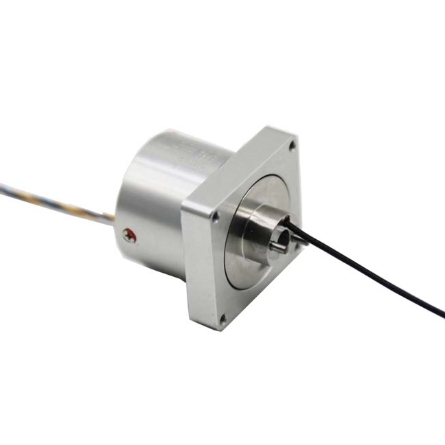

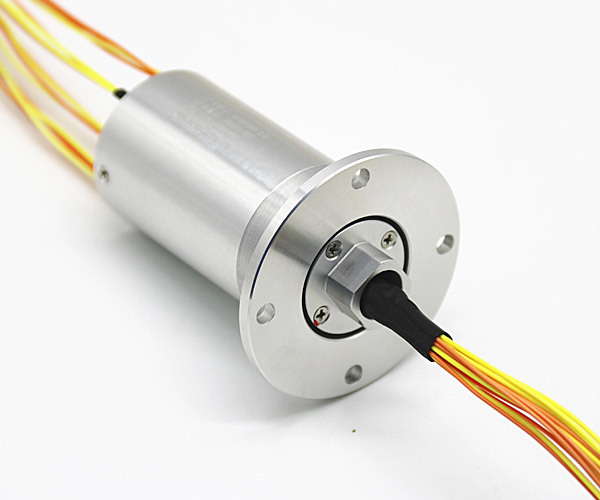

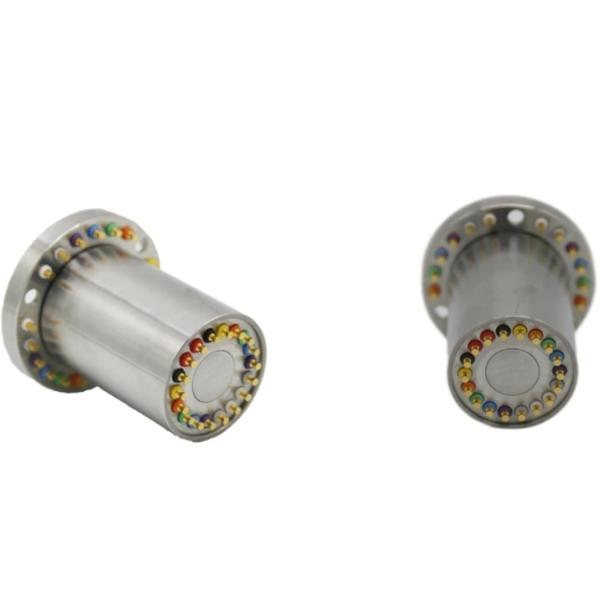

Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Specifications
Brand Name :
SPR-ing
Model Number :
SP035018-A
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Channel :
18
Productname :
Conductive Slip Ring
Protection Grade :
IP51
Working life :
10 million circle
Rated speed :
5000 rpm
Maximum Current :
1A
Housingmaterial :
stainless steel
Application :
Wind turbines, robotics, medical equipment, radar systems
Mountingtype :
Flange, through-bore, or shaft-mounted
Dielectric Strength :
≥300VAC/50Hz/60s
Dynamic Resistance Change :
≤10mΩ
Weight :
≤105g
Description
Compact Electrical Slip Ring Gold Contact High Speed Rotary Connector

The SP035018-A Electrical Slip Ring combines high rotational speed, low electrical noise, and superior durability. Its gold contact technology and ≤10mΩ resistance variation ensure accurate signal transmission for rotating sensors and measurement systems. Optional speed monitoring functionality makes it ideal for laboratory equipment, test benches, and high-speed inspection systems.

Technical Parameters
Electrical Specifications
Design loop 18
Insulation resistance 250MΩ/250V/DC
Current 1A
Dielectric strength ≥300VAC/50Hz/60s
Dynamic resistance change value ≤10mΩ
Mechanical Specifications
Rated speed 5000 rpm
Working life 10 million circle
Operating temperature -40℃ ~ 80℃
Operating humidity 0～80%RH
Contact material Gold-gold
Shell material Stainless steel
Maximum starting torque 0.5N.cm
Weight ≤105g
IP grade IP51
Outline Drawing
Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications Compact Gold Contact Electrical Slip Ring 5000 rpm 18 Channel Rotary Connector for High-Speed Applications
Typical Applications
  • Industrial Automation Equipment
  • Robotics and Motion Control Systems
  • Rotary Indexing Tables
  • Packaging and Labeling Machines
  • Automated Inspection Equipment
  • Semiconductor Manufacturing Equipment
  • Rotating Sensors and Monitoring Devices
  • High-Speed Testing and Measurement Systems
  • Smart Manufacturing Production Lines
  • Aerospace and Defense Test Platforms
  • Cable Reels and Rotating Machinery
  • Speed Measurement and Encoder Systems
Why Choose SP035018-A?

With its high rotational speed, compact structure, long service life, and stable signal transmission performance, the SP035018-A High Speed Slip Ring is an ideal solution for engineers and OEM manufacturers seeking reliable rotary electrical connections in space-constrained and high-performance applications.

Technical Advantages
  • Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life.
  • Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.
  • Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.
  • Precision component manufacturing process: dimensional tolerance<0.01mm, axial displacement<0.01mm, high precision, and more stable performance.
  • Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3.
  • Small in size and compact in structure, it can meet the space constraints of users.
  • Stainless steel structure: sturdy and durable, with strong sealing, suitable for extremely harsh environments.
  • Color code recognition interface: easy to install
