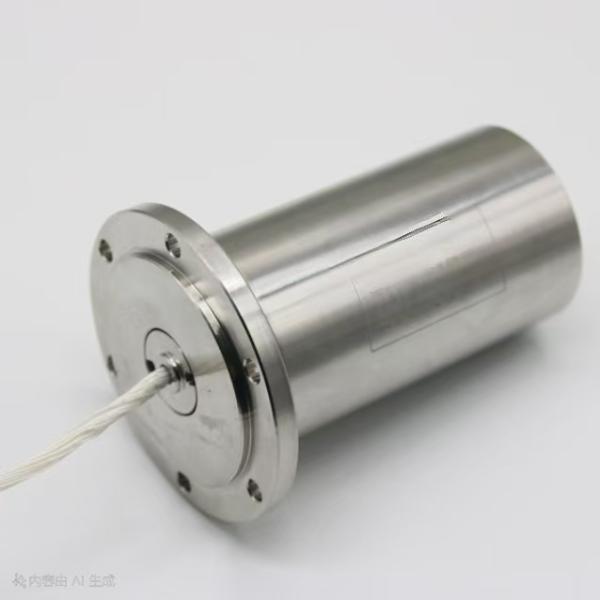

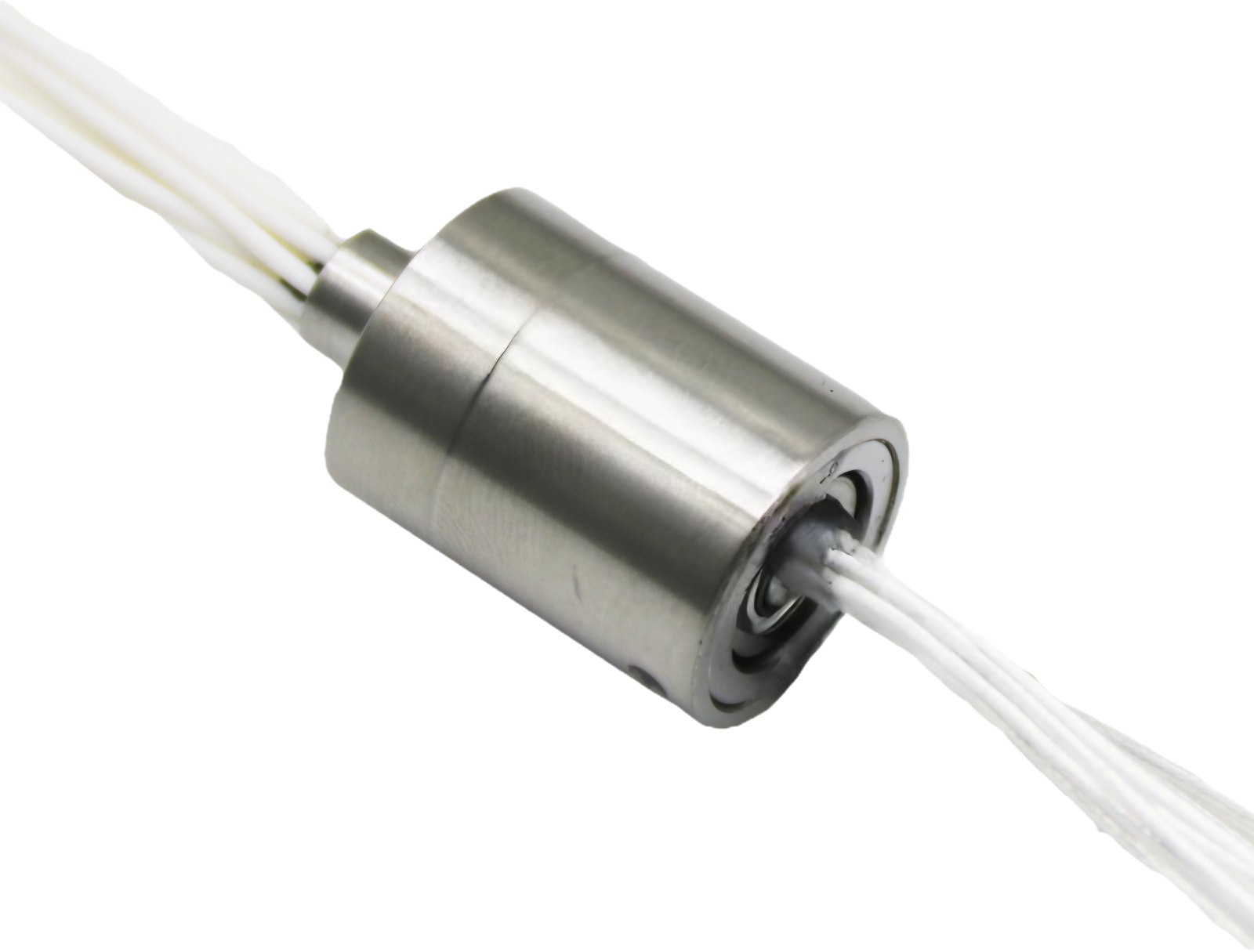

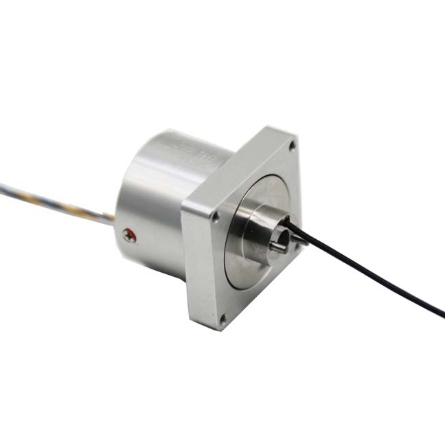

Long Life Semiconductor Wafer Slip Ring 18 Circuits 10000 RPM Gold Contact 304 Stainless Steel
Long Life Semiconductor Wafer Slip Ring 18 Circuits 10000 RPM Gold Contact 304 Stainless Steel
Long Life Semiconductor Wafer Slip Ring 18 Circuits 10000 RPM Gold Contact 304 Stainless Steel
Long Life Semiconductor Wafer Slip Ring 18 Circuits 10000 RPM Gold Contact 304 Stainless Steel
Long Life Semiconductor Wafer Slip Ring 18 Circuits 10000 RPM Gold Contact 304 Stainless Steel
Long Life Semiconductor Wafer Slip Ring 18 Circuits 10000 RPM Gold Contact 304 Stainless Steel
Specifications
Packaging Details :
Export Carton
Contact Material :
Gold-gold
Supply Ability :
1000 Pieces / Month
Rated Speed :
0-10000 rpm
MOQ :
1 Piece
Delivery Time :
1 week
Working Life :
10 million rpm
Operating Humidity :
≤80% RH
Place of Origin :
Shenzhen
Payment Terms :
L/C, T/T
Rated Voltage :
80VDC
Model Number :
SP013018-SM
Certification :
ISO 9001:2015, RoHS
Operating Temperature :
-50℃ ~80℃
Brand Name :
SPR-ing
Price :
USD 200-800 / Piece
Housing Material :
304 Stainless Steel
Rated Current :
1A
Max Starting Torque :
0.5N·cm
Insulation Resistance :
250MΩ/250V/DC
Dielectric Strength :
>300VAC/50Hz/60s
Lead Wire Length :
Standard 400mm (adjustable)
Design Loop :
≤18
Dynamic Resistance Variation :
≤20mΩ
Description

Semiconductor Wafer Handling Long Life Slip Ring

Product Overview

The SP013018-SM series long life slip ring is a miniature, long-life electrical connector specifically engineered for semiconductor wafer handling and cleanroom automation applications. Standard configurations support up to 18 channels, featuring:

  • Max Speed: 0-10000 rpm
  • Service Life: 10 million rpm (MTBF >10,000 hours)
  • Stability: Gold-gold contact technology ensures reliable signal transmission

Technical Parameters

Electrical Specifications

ParameterValue
Design Loop≤18
Insulation Resistance250MΩ/250V/DC
Rated Voltage/Current80VDC / 1A
Dielectric Strength>300VAC/50Hz/60s
Dynamic Resistance Variation≤20mΩ

Mechanical Specifications

ParameterValue
Rated Speed0-10000 rpm
Working Life10 million rpm
Operating Temperature-50℃ ~80℃
Operating Humidity≤80% RH
Contact MaterialGold-gold
Housing Material304 Stainless Steel
Lead Wire LengthStandard 400mm (adjustable)
Max Starting Torque0.5N·cm

Key Applications

  • Real-time strain gauge and thermocouple signal acquisition
  • Continuous rotation data and power transmission
  • High-speed precision measurement systems

Technical Advantages

  • Gold-Gold Contact Technology: 99.99% pure gold plating for ultra-long service life
  • Precision Concentricity: Integrated casting ensures ≤0.01mm concentricity between ring grooves and bearings
  • Mirror Surface Finish: Contact surface roughness reaches Ra0.02 (optical mirror quality)
  • Ultra-Precision Machining: Dimensional tolerances <0.01mm for high precision and stability
  • Advanced Brush Wire Technology: Near-zero pressure brush design extends life by 1/3
  • 304 Stainless Steel Construction: Durable and well-sealed for harsh environments
