Specifications
Model NO. :
UC-3(A)
Lifting Height :
4900mm
Transport Package :
Bulk
Specification :
8700x1900x2500mm
Trademark :
Jarlo
Origin :
China
HS Code :
8428909090
Supply Ability :
1000 Sets/Year
Customization :
Available
After-sales Service :
12 Months
Warranty :
12 Months
Place of Origin :
China
MOQ :
1 set
Payment Terms :
LC, T/T
Description

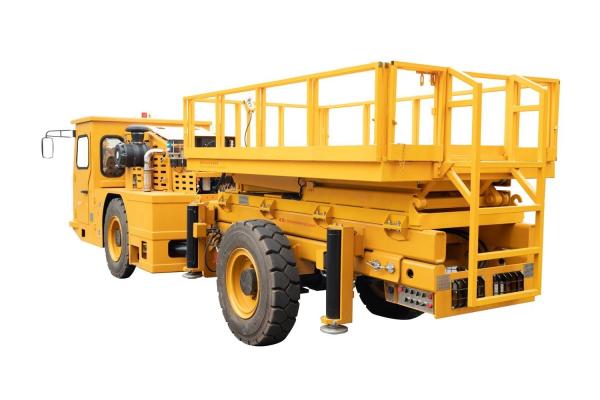

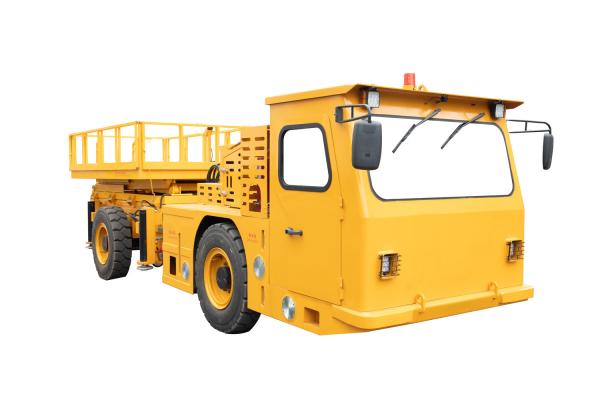

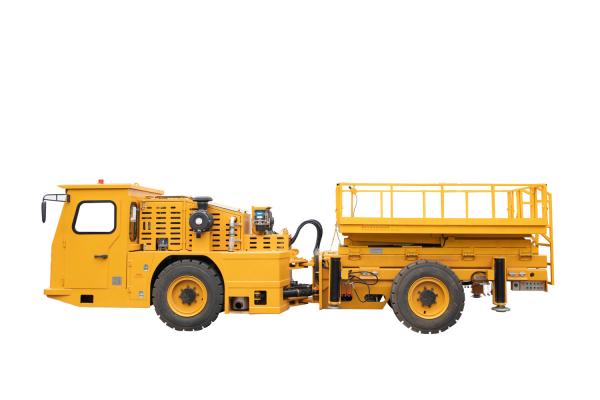

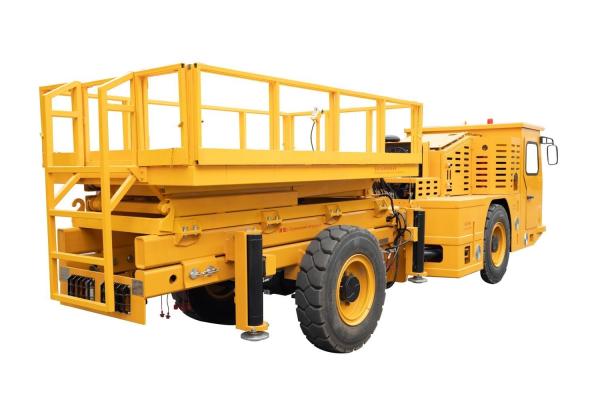

UC-3(A) Under Ground Lifting Work Platform
Turning radius
Underground Utility Vehicle Lifting Work Platform with Customizable Sissors Lifter
Main configuration and technical parameters
Name Unit Parameters
Overall Size L mm 7415±100
W mm 1900±50
H mm 2503±50
Total weight kg 8700±200
Max. Traction power kN ≥80
Min. Ground clearance mm 255
Gradeability(Heavy loaded) % 25
Steering angle (º) ±40
Lateral swing angle (º) ±6-8
Axle track mm 1530
Wheel base mm 3500
Turning radius Inner mm 3865
Outer mm 6173
Max. Driving speed Gear I km/h 4.8±0.48
Gear II km/h 10±1
Gear III km/h 18±1.8
Rated load capacity kg 3000
Maximum lifting height (from the ground) mm 4900
Platform size L mm 3000
W mm 1700
H mm 830

Main performance characteristics
1. Four-wheel drive, articulated steering; the cab adopts ergonomic design and is equipped with air conditioner, which improves driving comfort-ability.
2. The front frame is equipped with a swing frame, which increases the swing angle of the front and rear car bodies in the vertical plane. The wheels have stronger adhesion and the vehicle has higher pass-ability.
3. It adopts National IV Cummins water-cooled engine, which has low noise, long life and reliable performance.
4. The Italian SAFIM dual-circuit braking system uses fully enclosed wet multi-disc hydraulic brakes and hydraulic release spring brakes to ensure braking safety.
5. The frame adopts post-weld annealing treatment and shot blasting treatment to eliminate welding stress and ensure the quality of the whole machine.
6. The hydraulic lifting platform can realize remote control operation.
