Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200
Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200
Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200
Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200
Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200
Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200
Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200
Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200
Specifications
Place of Origin :
China
MOQ :
1 set
Payment Terms :
LC, T/T
Model NO. :
UPT-96/2200
Condition :
New
Warranty :
12 Months
After-sales Service :
12 Months
Transport Package :
Bulk
Specification :
7400x1850x2100
Trademark :
Jarlo
Origin :
China
HS Code :
8474209000
Supply Ability :
1000 Sets/Year
Customization :
Available
Motor Type :
AC Motor
Engine Type :
Diesel
Description

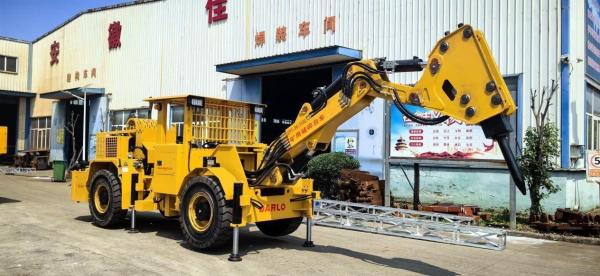

UPT-96/2200 Mining Rock Breaker
Demensions
Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200
Working scope
Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200
Main configuration and technical parameters
Model UPT-96/2200
Item Unit Parameters
Equipment Features Dimension Length mm 7400
Width mm 1850
Min. Height mm 2100
Max. Height mm 2380
Min. Turning radius mm Inner:≤3400
Outer:≤5350
Min. Ground clearance mm 300
Max. Breaking width mm 4500
Max. Breaking height mm 4100
Total mass kg 11800
Articulated angle (°) ±40
Working boom Working pressure MPa 18
Working boom swing angle(left/right) ° ±30
Hydraulic breaking hummer Breaking hummer manufacturer Original Imported Korean Sapper
Impacting power J ≥2200
Impacting frequency Hz 6-13
Rod diameter mm 100
Weight kg 700
Working flow L/min 85-110
Working pressure MPa 15-17
Chassis Driving type - Tyre (Articulate)
Steering pressure MPa 16
Driving speed Gear 1 km/h 20
Gear 2 km/h 9
Gradeability (°) 25
Diesel engine Brand/model - Cummins
Rated power kW 96
Rated rotation speed r/min 2500
Main configuration Service brake Hydraulically mobilized, dual-circuit, oil-immersed multi-disc brakes
Parking brake Spring-loaded brakes, hydraulically released, fail-safe brakes
Driving Cab Lift-able; Front with protective Fence
