Specifications
Place of Origin :
China
MOQ :
1 set
Payment Terms :
LC, T/T
Model NO. :
JDY-2J
Special Function :
Concrete Mixing While Transporting
Transport Package :
Bulk
Specification :
6780x2040x1950mm
Trademark :
Jarlo
Origin :
China
HS Code :
8429510000
Supply Ability :
1000 Sets/Year
Customization :
Available
After-sales Service :
12 Months
Warranty :
12 Months
Description

JDY-2J Concrete Mixing Loader

2m3 Concrete Mixer loader wet concrete mixing for shotcrete machine
Dimensions
2m3 Concrete Mixer loader wet concrete mixing for shotcrete machine
Turning Radius
2m3 Concrete Mixer loader wet concrete mixing for shotcrete machine
Main configuration and technical parameters
Item Technical parameters Remarks
Overall Specs. Overall size(mm) 8020×2280×2250
Loader capacity(m³) 2
Rated loading weight(t) 4
Max. unload height(mm) 2800
Max. unload distance(mm) 1400
Max. Lifting height(mm) 4290
Max. Traction power(kN) 100
Max. shoveling force(kN) 60
Wheel base(mm) 2630
axle track(mm) 1500
Min. Ground clearance(mm) 245
Gradeability(°) 22°
Alarm bell horn
Control system Fully hydraulic pilot handle control
Firefighting equipment Dry powder fire extinguisher
Cab Detachable open cab
Weight(kg) 12000
Stirring shaft speed(r/min) 14±2
Power system Engine manufacturer Guangxi Yuchai
Engine power/speed 140kw/2200rpm
Maximum torque 720N•m/1700rpm
Drive System Drive mode Closed hydro-static four-wheel drive
Service brake Hydraulic brake, spring release
Parking brake Spring brake, hydraulic release
Steering method Articulated steering, double-acting hydraulic cylinder drive
Steering angle ±40°
Driving speed High speed:11km/h
Low speed:5.5km/h
Trans-axle+gearbox DR30.26
Tire 12.00-20
Min. turning radius (mm) Inner:2820
Outer:5150
Exhaust gas treatment device GB 20891 The third phase
Electrical System Operating Voltage 24V
Generator 28V/70A
Battery Two12V/105Ah
Light 2 headlight108w,4 rear light21w
Performance characteristics
1. Small size, convenient operation, suitable for normal driving in narrow mines and tunnels
2. It adopts two low-speed and high-torque internal curved radial piston stirring motors, which occupy a small space but have large torque and long service life;

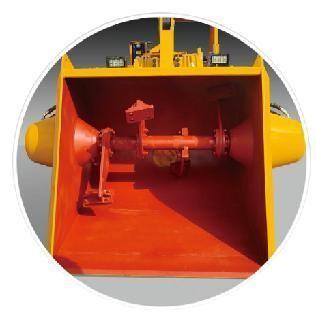

3. The mixing bucket is made of high-strength steel plates and detachable mixing blades, which have low maintenance costs;
4. Equipped with a high-pressure strong power common rail engine (190 horsepower);
5. Adopt Italian SAFIM hydraulic braking system, closed hydro-static drive, with high reliability, strong climbing ability and good control performance;
6. The lifting arm adopts two symmetrically placed cylinders which have stable structure and strong lifting capacity;
7. The articulated body can be disassembled to go down the well, with flexible steering and a large steering angle (±40 degrees).
