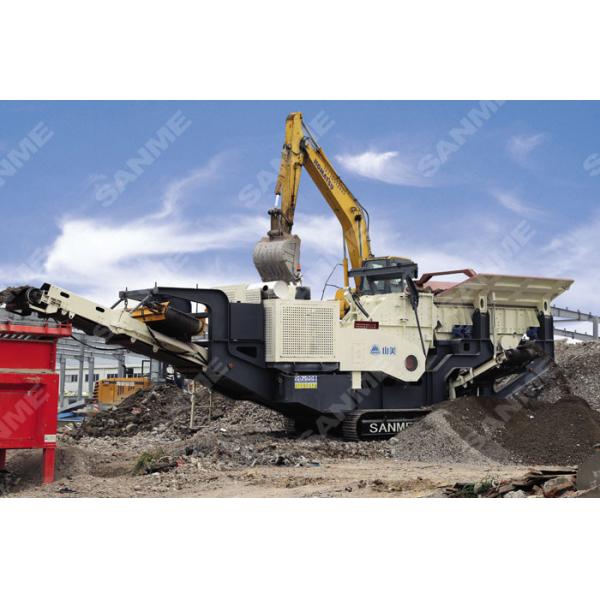

Granite Limestone 480t/H Mobile Cone Crusher For Construction Waste
Granite Limestone 480t/H Mobile Cone Crusher For Construction Waste
Specifications
Brand Name :
SANME
Model Number :
Mobile Crusher
Certification :
ISO&CE
Place of Origin :
Shanghai, China
MOQ :
Negotiate
Payment Terms :
T/T, L/C
Delivery Time :
2 months
Price :
Negotiate
Supply Ability :
50 sets per Month
Packaging Details :
Standard container, spare parts will be packed in wooden cases
Raw materials :
Granite, limestone, concrete, lime, plaster, slaked lime
Capacity :
250-480t/h
Application :
Widely used in construction waste, mine, mining, sand and cement companies
Guarantee :
1 year
Core Components :
PLC, Gear, Motor, Engine, Bearing, Pump
After Warranty Serv :
Field maintenance and repair service
Description
Advantages

1. High efficiency of crusher host: super heavy rotor, high wear-resistant material and large crushing chamber make it have large feed size, stable product and high output;

2. The final product has good grain shape and large crushing ratio: it is suitable for all kinds of crushing requirements and has a wide range of uses;

3. Simple operation and convenient maintenance: the rear frame of crusher is opened by hydraulic pressure, which is convenient for maintenance; the side discharge belt is foldable;

4. Flexible configuration: iron remover, return system or plate feeding system can be selected;

5. It can realize fast transfer operation: it adopts intelligent wireless remote control device, which has good site mobility, and can adapt to various complex construction environments such as mountains and wetlands.

Granite Limestone 480t/H Mobile Cone Crusher For Construction Waste

Granite Limestone 480t/H Mobile Cone Crusher For Construction Waste

Technical Data of MP-PH Series Mobile Impact Crushing Plants:

Model MP-PH 10 MP-PH 14
Impact crusher AP-PH-A 1010 AP-PH-A 1414
Feed opening size(mm×mm) 810×1030 1025×1360
Max feed size(m3) 0.3 0.5
Max edge length in one direction(mm) 800 1000
Crushing capacity(t/h) up to 250 up to 480
Drive diesel-direct diesel-direct
Driving Unit
Engine CAT C9 CAT C18
Performance (kw) 242 470
Feed hopper
Hopper volume(m3) 4.8 8.5
Grizzly feeder with pre-screening(two-deck)
Drive hydraulic hydraulic
Main conveyor belt
Discharge height(mm) 3100 3500
Drive hydraulic hydraulic
Side conveyor belt (option)
Discharge Height(mm) 1900 3500
Drive hydraulic hydraulic
For transportation the head-piece can be folded
Crawler unit
Drive hydraulic hydraulic
Permanent magnetic separator
Magnetic separator option option
Dimensions and weight
Working dimensions
-length (mm) 14600 18000
-width (mm) 4500 6000
-height (mm) 4200 4800
Transport dimensions
- length (mm) 13300 17000
- width (mm) 3350 3730
- height (mm) 3776 4000
Approx weight (t) 43 70

Note: Capacity is total tons per hour passing through crusher at open circuit when bulk density of feeding is 1.6t/m³. Capacities are relative to physics character and type of feeding, feeding size and composition.
