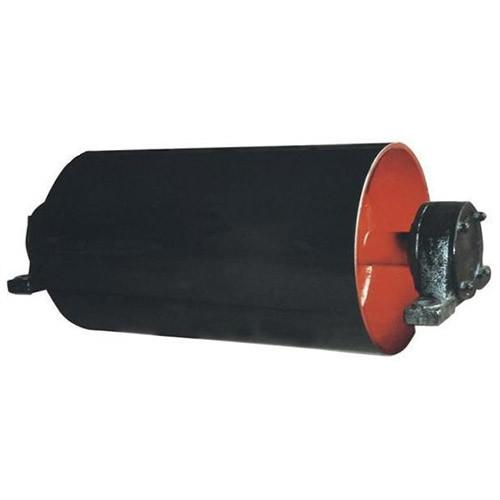

Dia 1800mm 1760KN Conveyor Bend Pulley
Dia 1800mm 1760KN Conveyor Bend Pulley
Specifications
Brand Name :
HUAMEI
Description

Bend Pulley

Bend Pulley is used for changing the direction of the belt running or increasing the wrap angle between the conveyor belt and the driving pulley;

As per different carrying capacities, the bent pulley can be divided into three categories: light duty, medium duty and heavy duty.


Light-duty:

Bearing Aperture: 80~100mm.
The axle and the hub are connected by the single key. And it's single plate welding. The axle is unidirectional out.

Medium-duty:

Bearing Aperture: 120~180mm.
The axle and the hub are connected by the ring lock.

Heavy-duty:

Bearing Aperture: 200~220mm.

Technical Parameters

Belt width(mm) Pulley diameter(mm) To withstand the resultant force(KN)
400 250-400 6-40
500 250-500 6-49
650 250-630 6-70
800 250-1000 6-330
1000 250-1000 6-430
1200 250-1400 6-650
1400 315-1400 17-980
1600 630-1600 200-1280
1800 630-1600 200-1440
2000 630-1800 250-1600
2200 630-1800 280-1760
2400 630-1800 300-1760
