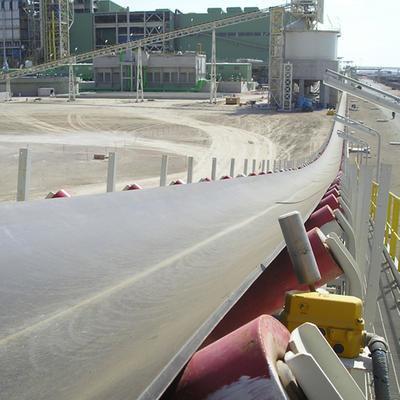

High Climbing Ability DT II Belt Conveyor
High Climbing Ability DT II Belt Conveyor
Specifications
Brand Name :
HUAMEI
Model Number :
DT II
Place of Origin :
CHINA
Description

DT II Belt Conveyor

DTII belt conveyor is the most popular transport models now,Its characteristics are large volume, strong climbing ability
and convenient maintenance, etc, It can not only meet the standard of leveling, lifting and decline transportation requirements,
but also the convex arcs, concave arc and linear combination transportation methods. The belt can be operated in
the temperature situation ranging from -20°C to +50°C. There are no relative motion between materials and conveyor belt,
the damage to materials can be avoid.

Application

The Belt Conveyor is advanced and simple in structure, easy to maintain. Its transfer capacity is high, transfer distance is long. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material.
We can design the system to meet your requirements,your any inquiry is highly appreciated.

Parameter

Belt width
(mm)		 500 650 800 1000 1200 1400 1600 1800 2000 2200 2400
Belt speed (㎡/h) Conveying quantity(t/s)
0.8 69 127 198 324 - - - - - - -
1.0 87 159 248 405 593 825 - - - - -
1.25 108 198 310 507 742 1032 - - - - -
1.60 139 254 397 649 951 1321 - - - - -
2.00 174 318 496 811 1188 1652 2186 2795 3470 - -
2.50 217 397 620 1014 1486 2065 2733 3494 4338 - -
3.15 - - 871 1278 1872 2602 3444 4403 5466 6843 8289
4.00 - - - 1622 2377 3304 4373 5591 6941 8690 10526
4.50 - - - - 2674 3718 4920 6291 7808 9776 11842
5.00 - - - - 2971 4130 5466 6989 8676 10863 13158
5.60 - - - - - - 6122 7829 9717 12166 14737
6.50 - - - - - - - 9083 11277 14120 17104
