High Thermal Efficiency Rotary Industrial Drying Equipment For Desulfurization Gypsum
High Thermal Efficiency Rotary Industrial Drying Equipment For Desulfurization Gypsum
High Thermal Efficiency Rotary Industrial Drying Equipment For Desulfurization Gypsum
High Thermal Efficiency Rotary Industrial Drying Equipment For Desulfurization Gypsum
Specifications
Brand Name :
Lipu
Model Number :
1.5×15
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
High Thermal Efficiency Rotary Industrial Drying Equipment
Model :
1.5×15
Outer cylinder diameter :
1500mm
Outer cylinder length :
15000mm
Cylinder volume :
26.5m³
Cylinder rotary speed :
1-5r/min
Power :
15kw
Application :
sludge, coal, sand, animal dung, fly ash, clay, coal slime
Condition :
New
Weight :
19.2t
Description

High Thermal Efficiency Rotary Industrial Drying Equipment For Desulfurization Gypsum

Equipment Introduction:

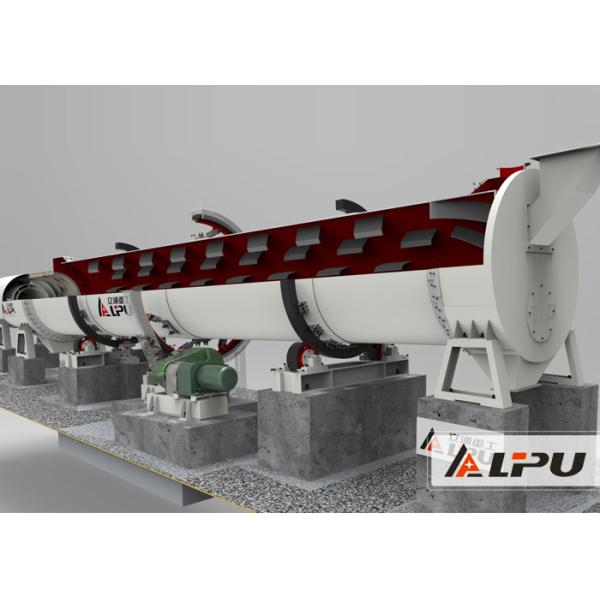

High thermal efficiency rotary industrial drying equipment is traditional and reliable drying equipment, the

material will be lifted up and fallen down by the lifting plates inside of the cylinder while the cylinder is rotating, the moisture in the material is continuously evaporated when the material contacts with the hot

wind inside of the cylinder, to achieve the purpose of drying materials.

It is suitable for drying sludge, coal, sand, animal dung, fly ash, clay, coal slime, ore, steel slag, quartz sand, kaolin clay, bentonite, sawdust, desulfurization gypsum, compound fertilizer,etc.

Performance Characteristics:

1. Advanced internal structure strengths heat exchange, that is to say, increasing thermal efficiency;

2. Counterflow drying method, it can obtain higher evaporation intensity; downstream drying method and

indirect drying method are suitable for drying materials which are sensitive to temperature;

3. Fuel can be diesel oil, heavy oil, and natural gas, gas, coal, electricity and biomass particles for

environmental protection;

4. All kinds of different types of lifting plates combination, to ensure the hot air is in full contact with the

material, and meet the needs of drying different material.

Technical Parameters:

Model

Cylinder diameter

(mm)

Cylinder length

(mm)

Cylinder volume

(m3)

Cylinder

rotary speed (r/min)

Power

(kW)

Weight

(t)

1.5×8

1500

8000

14

1-5

11

14.8

1.5×10

1500

10000

17.7

1-5

11

16

1.5×11.8

1500

11800

21

1-5

15

17.5

1.5×15

1500

15000

26.5

1-5

15

19.2

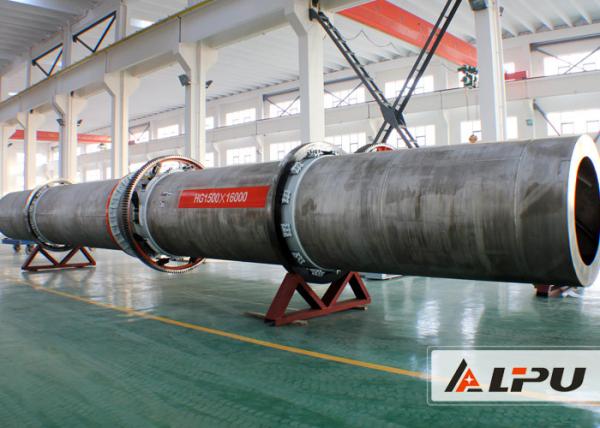

Product Picture Show :
High Thermal Efficiency Rotary Industrial Drying Equipment For Desulfurization Gypsum
