High Capacity Building Material Limestone Vibratory Feeder Primary Crusher
High Capacity Building Material Limestone Vibratory Feeder Primary Crusher
Specifications
Brand Name :
LIPU
Model Number :
GZD0830
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Vibratory Feeder
Model :
GZD0830
Feeder Model :
970 r/min
Crusher Model :
4-6 mm
Iron Separator Model (optional) :
90-150 t/h
Belt Conveyor Model :
2×1.5 kw
Generator Power :
3110×1370×1370 mm
Weight :
2.5 t
Application :
Limestone
Color :
As customer's requirement
Quality :
High reputation
Description

High Capacity Building Material Limestone Vibratory Feeder Primary Crusher

Brief Introduction

Vibrating feeder can feed blocky, granular material into receiving material device uniformly and

continuously, and it can be also used for preliminary screening. The vibrating feeder is widely used in

iron ore processing plant, metallurgy, coalmine, beneficiation, construction, chemical, grinding, etc. for

feeding. It is usually used for feeding limestone to primary crusher.

Performance Features

1. With vibration motor as vibration source, no other moving part. Little noise, low electric consumption

and simple structure, convenient operation;

2. It can adjust the feeding material amount by adjusting the vibration force of vibrating motor;

3. Adopt low alloy steel (Q345) so the equipment can work well in-40 ℃ cold area.

Working Principle

Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The

vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears

must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to

produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will

slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will

fall down, and avoiding the further crushing, so screening purpose can be reached.

Technical Parameters:

Model

Vibration frequency(r/min)

Double-amplitude(mm)

Capacity (t/h)

Power

(kW)

Overall dimension

(mm)

Weight (t)

GZD0830

970

4-6

90-150

2×1.5

3110×1370×1370

2.5

GZD9538

970

4-6

120-210

2×3

3910×1520×1460

3

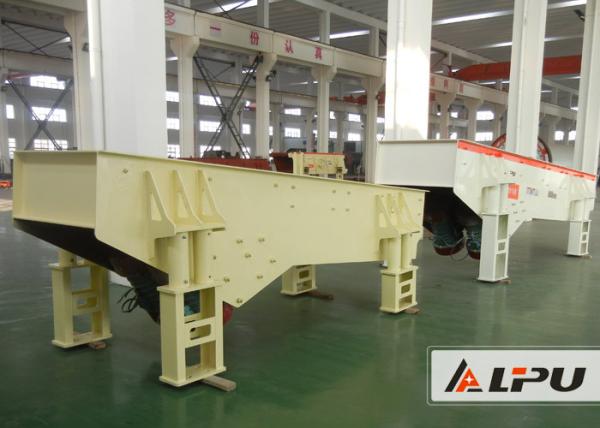

Product Picture Show:

High Capacity Building Material Limestone Vibratory Feeder Primary Crusher
