Metallurgical And Chemical Rotating Kiln For Poor Iron Ore Magnetization Calcination
Metallurgical And Chemical Rotating Kiln For Poor Iron Ore Magnetization Calcination
Metallurgical And Chemical Rotating Kiln For Poor Iron Ore Magnetization Calcination
Metallurgical And Chemical Rotating Kiln For Poor Iron Ore Magnetization Calcination
Specifications
Brand Name :
Lipu
Model Number :
2.0×40
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Metallurgical And Chemical Rotating Kiln
Model :
2.0×40
Capacity :
120-200t/h
Rotary Speed :
0.23-2.26r/min
Power :
37kw
Weight :
119t
Condition :
New
Application :
poor iron ore magnetization calcination
Description

Metallurgical And Chemical Rotating Kiln For Poor Iron Ore Magnetization Calcination

Technical Parameters:

Model

Kiln

Capacity(t/d)

Rotary Speed

(r/min)

Power

(kW)

Weight

(t)

Diameter(m)

Length(m)

Slope(%)

1.4×33

1.4

33

3

26

0.39-3.96

18.5

48

1.6×36

1.6

36

4

37

0.26-2.63

22

52

1.8×45

1.8

45

4

52

0.16-1.62

30

78

1.9×39

1.9

39

4

56

0.29-2.93

30

78

2.0×40

2

40

3

78

0.23-2.26

37

119

2.2×45

2.2

45

3.5

106

0.21-2.44

45

128

2.5×40

2.5

40

3.5

180

0.44-2.44

55

150

2.5×50

2.5

50

3

200

0.62-1.86

55

187

2.5×54

2.5

54

3.5

204

0.48-1.45

55

196

2.7×42

2.7

42

3.5

320

0.10-1.52

55

199

2.8×44

2.8

44

3.5

400

0.437-2.18

55

202

3.0×45

3

45

3.5

500

0.5-2.47

75

211

3.0×48

3

48

3.5

700

0.6-3.48

100

237

3.0×60

3

60

3.5

300

0.3-2

100

310

3.2×50

3.2

50

4

1000

0.6-3

125

278

3.3×52

3.3

52

3.5

1300

0.266-2.66

125

283

3.5×54

3.5

54

3.5

1500

0.55-3.4

220

363

3.6×70

3.6

70

3.5

1800

0.25-1.25

125

419

4.0×56

4

56

4

2300

0.41-4.07

315

456

4.0×60

4

60

3.5

2500

0.396-3.96

315

510

4.2×60

4.2

60

4

2750

0.4-3.98

375

633

4.3×60

4.3

60

3.5

3200

0.396-3.96

375

583

4.5×66

4.5

66

3.5

4000

0.41-4.1

560

710

4.7×74

4.7

74

4

4500

0.35-4

630

849

4.8×74

4.8

74

4

5000

0.396-3.96

630

899

Equipment Introduction:

Metallurgical and chemical rotary kiln is mainly used for poor iron ore magnetization calcination, the

oxidizing calcination of chromium ore, ferronickel ore; the calcination of high aluminum bauxite ore in the

refractory material factory and aluminum hydroxide, the clinker, aluminum hydroxide calcination in the

aluminum plant; the calcination of chrome ore and chrome powder in the chemical plant, etc.

Working Principle:

Material is fed into kiln though end of kiln (higher side of cylinder). Because cylinder is inclined and it

rotates slowly, material moves along with circle as well as axial direction (from higher side to lower side).

After going through physical and chemical change, material gets into cooling machine through head cover

of kiln after the finishing calcination. Fuel is fed into the kiln head through the kiln head, and exhaust gas

will discharge at the end of kiln after exchanging heat with material.

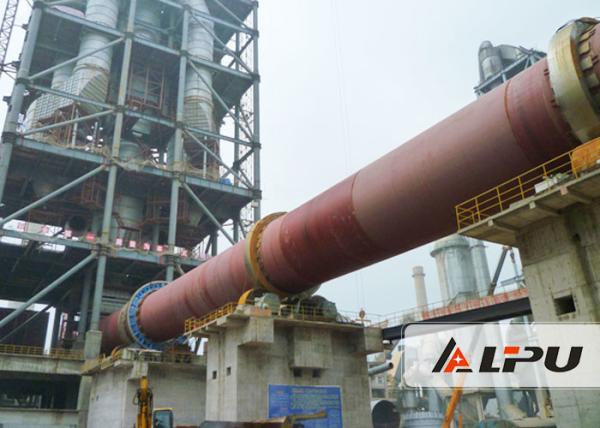

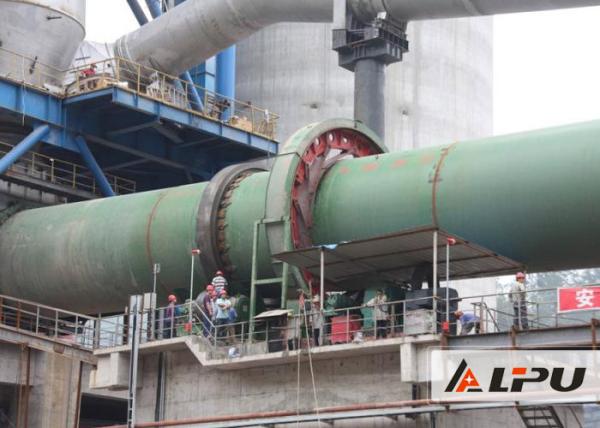

Product Picture Show:

Metallurgical And Chemical Rotating Kiln For Poor Iron Ore Magnetization Calcination
