High Compressive Strength Mine Crushing Equipment VSI Crusher Sand Making Machine 9.2t
High Compressive Strength Mine Crushing Equipment VSI Crusher Sand Making Machine 9.2t
High Compressive Strength Mine Crushing Equipment VSI Crusher Sand Making Machine 9.2t
High Compressive Strength Mine Crushing Equipment VSI Crusher Sand Making Machine 9.2t
Specifications
Brand Name :
Lipu
Model Number :
VCⅡ8622
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Sand Making Machine
Model :
VCⅡ8622
Capacity :
120-220t/h
Max. Feed Size :
50mm
Double Motor Power :
180-220kw
Overall Dimension :
4500×2100×3400mm
Weight :
9.2t
Application :
pebble, granite, basalt, calcite, quartz, iron ore
Description

High Compressive Strength Mine Crushing Equipment VSI Crusher Sand Making Machine 9.2t

Introduction

Sand Making Machine is widely used in crushing pebble, granite, basalt, calcite, quartz, iron ore, limestone, refractory, concrete aggregate, etc. The machine adopts "rock-rock" and "rock-iron" combination of crushing way with higher capacity. The machine is the preferred device in sand industry and full compliance with national standards for construction sand.

Advantages

1. Simple structure and low operating cost;

2. High crushing ratio with low consumption;

3. Function of fine crushing and crude grinding;

4. Slightly influenced by moisture content of material, and the max moisture content is about 8%;

5. More suitable for crushing mid-hardness and hardness materials;

6. Cubic shape of final products, high density of piling up and low iron pollution;

7. More wearable and easier maintenance;

8. Low working noise (lower than 75 decibel) and light dust pollution.

Technical Parameter :

Model

VCⅡ8622

Capacity(t/h)

Center

feeding

120-220

Center

and side

feeding

150-290

Max. Feed

Size(mm)

50

Double

Motor

Power(kW)

180-220

Overall

Dimension/L×W×H(mm)

4500×2100×3400

Transportation

Dimension/

L×W×H(mm)

4500×2100×2200

Weight(t)

stone

strike

stone” crushing

cavity

9.2

stone strike

iron” crushing

cavity

10.5

Thin Oil Lubrication Station

Double Oil

Pump Power(kW)

2×0.37

Safety

Protection

Double Oil Pump feed each other; Automatic shutdown when

no oil return; Water cooling system; Automatic heating in low temperature.

Oil Tank

Heating

Power(kW)

2

Overall Dimension/L

×W×H(mm)

820×520×1270

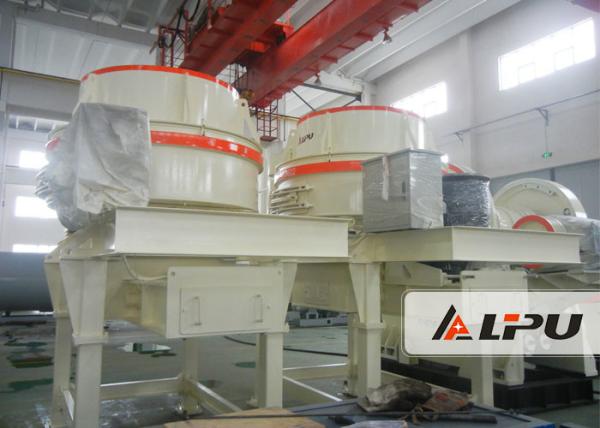

Product Picture Show :

High Compressive Strength Mine Crushing Equipment VSI Crusher Sand Making Machine 9.2t

High Compressive Strength Mine Crushing Equipment VSI Crusher Sand Making Machine 9.2t
