Gold Ore Concentrating Thickener for Dehydration in Beneficiation Plant
Gold Ore Concentrating Thickener for Dehydration in Beneficiation Plant
Gold Ore Concentrating Thickener for Dehydration in Beneficiation Plant
Gold Ore Concentrating Thickener for Dehydration in Beneficiation Plant
Gold Ore Concentrating Thickener for Dehydration in Beneficiation Plant
Gold Ore Concentrating Thickener for Dehydration in Beneficiation Plant
Gold Ore Concentrating Thickener for Dehydration in Beneficiation Plant
Gold Ore Concentrating Thickener for Dehydration in Beneficiation Plant
Specifications
Brand Name :
Lipu
Model Number :
NXZ Series
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Gold Ore Concentrating Thickener
Model :
NXZ Series
Tank diameter :
6-45m
Sediment area :
28.27-1590㎡
Rake Speed :
32-50mm/min
Rake Height :
350-600mm
Power :
3-11kw
Capacity :
50-3000t/h
Condition :
New
Application :
Ore Dressing Plant
Description

Gold Ore Concentrating Thickener for Dehydration in Beneficiation Plant

Brief Introduction:

Thickener is used for dewatering of concentrate and tailing in beneficiation plant. It is not just simple settling equipment, but a new type dewatering equipment combined with mud layer filtration characteristics. It is widely used in metallurgy, chemical industry, coal, nonmetal ore dressing, environmental protection, etc.

Features:

1. Large capacity, and high efficiency.

2. With overload protection.

3. Stable and reliable working process.

4. Transmission device with simple structure and easy maintenance

Working Principle:

This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

Technical Parameters:

NZ series center transmission type thickener:

Model

Tank diameter

(m)

Sediment area

(m2)

Rake Speed

(mm/min)

Rake Height

(mm)

Rake Frame Speed(min/r)

Capacity

(t/24h)

Power

(kW)

NZ6

6

28

31.4

200

1/3.7

14-62

1.1

NZ9

9

63.5

31.4

250

1/4

32-140

3

NZ12

12

113

31.4

250

1/5.26

56-250

3

NXZ series center transmission type-- automatic rake high efficient thickener:

Model

Tank diameter

(m)

Depth

(mm)

Sediment area

(m2)

Rake Speed

(mm/min)

Rake Height

(mm)

Capacity

(t/24h)

Power

(kW)

Weight(t)

NXZ6

6

3100

28.27

32

350

50-100

3

2.6

NXZ8

8

4762

50

35

500

100-200

5.5

16

NXZ15

15

4510

176

35

450

350-400

7.5

24

NXZ18

18

4545

254

31

450

350-900

7.5

30

NXZ24

24

5343

450

31

450

1000-1500

7.5

38

NXZ30

30

5343

706

31

450

1500-2000

7.5

46

NXZ45

45

8033

1590

50

600

2400-3000

11

77

NZT series peripheral transmission type high efficient thickener:

Model

Tank diameter

(m)

Depth

(m)

Sediment area

(m2)

Rake Height

(mm)

Rake Frame Speed(min/r)

Transmission Power

(kW)

Rake Power

(kW)

NZT38

38

4.5-7

1134

600

10-25

11

4

NZT45

45

5-7.5

1590

600

12-26

15

4

NZT53

53

5-8

2206

700

15-30

15

5.5

NZT65

65

5.5-8.5

3318

800

15-35

18.5

5.5

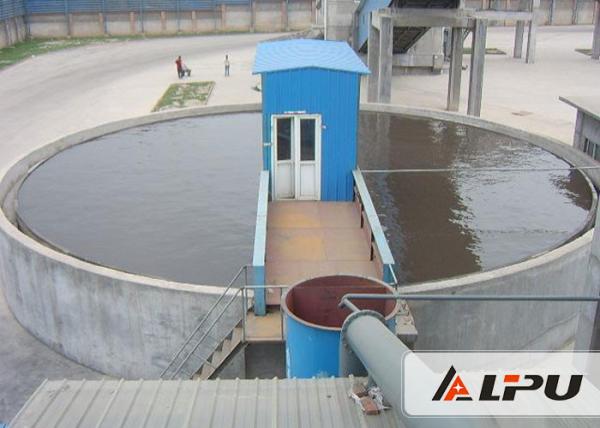

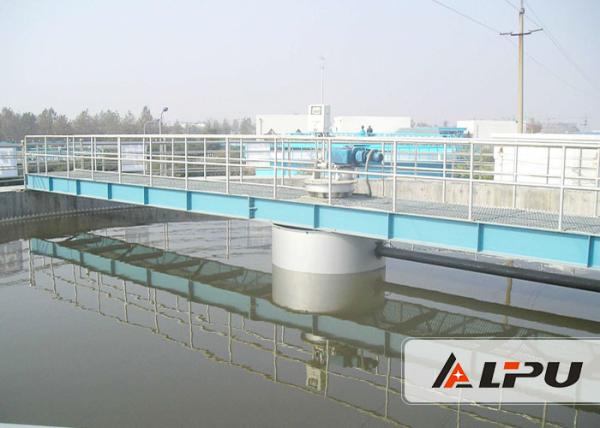

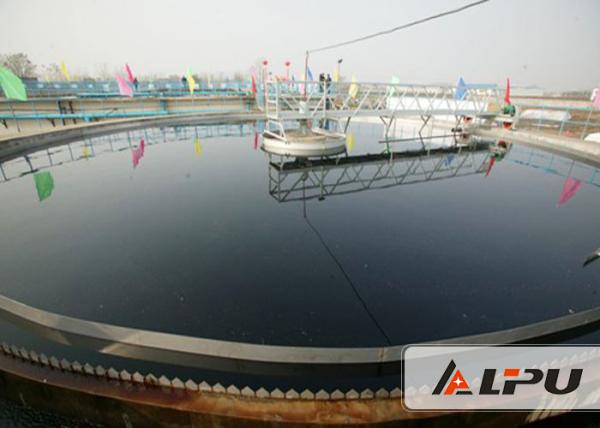

Product Picture Show :
Gold Ore Concentrating Thickener for Dehydration in Beneficiation Plant
