Low Amplitude High Frequency Screen In Ore Beneficiation Plant 10-50 t/h
Low Amplitude High Frequency Screen In Ore Beneficiation Plant 10-50 t/h
Low Amplitude High Frequency Screen In Ore Beneficiation Plant 10-50 t/h
Low Amplitude High Frequency Screen In Ore Beneficiation Plant 10-50 t/h
Low Amplitude High Frequency Screen In Ore Beneficiation Plant 10-50 t/h
Low Amplitude High Frequency Screen In Ore Beneficiation Plant 10-50 t/h
Low Amplitude High Frequency Screen In Ore Beneficiation Plant 10-50 t/h
Low Amplitude High Frequency Screen In Ore Beneficiation Plant 10-50 t/h
Specifications
Brand Name :
Lipu
Model Number :
GP1530
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
High Frequency Screen
Model :
GP1530
Mesh :
0.08-2mm
Frequency :
3000r/min
Capacity :
18-27t/h
Transmission Power :
2×0.37kw
Condition :
New
Application :
Ore Beneficiation Plant
Overall dimension :
3250×1980×2160mm
Weight :
1.2t
Description

Low Amplitude High Frequency Screen In Ore Beneficiation Plant 10-50 t/h

Brief Introduction:

High frequency screen is always used for processing minerals such as ferrous metal including hematite magnet and nonferrous metal including lead, zinc, gold, silver, etc. It adopts high frequency and low amplitude vibration for the processing of powder in coal, metallurgy, electricity, construction and chemical industry.

High frequency screen consists of vibration exciter, ore pulp distributor, screen frame, machine frame, suspension springs, sieve, etc.

Advantages:

1. High screening efficiency, large handling capacity.

2. Small size, light weight, simple structure, easy installation and maintenance.

3. Low noise, low power consumption and low cost.

4. High precision of screening, no dust pollution, environmentally friendly.

5. It can replace the multi-screen, long service life.

Performance Features:

1. Using laminated mesh increases monolayer aperture, which not only increases the service life of the screen, but can prevent jamming and wearing.
2. The rubber spring of high frequency screen supports the screen frame, which can reduce noise and set vibrating.
3. It has low amplitude, which is made for the classification of fine and heavy materials.

Technical Parameters:

Model

Mesh

(mm)

Frequency

(r/min)

Capacity

(t/h)

Power

(kW)

Overall Dimension

L×W×H(mm)

Weight

(t)

GP1220

0.08-2

3000

10-15

2×0.25

2420×1660×2010

1

GP1530

0.08-2

3000

18-27

2×0.37

3250×1980×2160

1.2

GP2030

0.08-2

3000

24-36

2×0.37

3250×2420×2370

1.4

GP2238

0.08-2

3000

33-50

2×0.37

4080×2740×2470

1.5

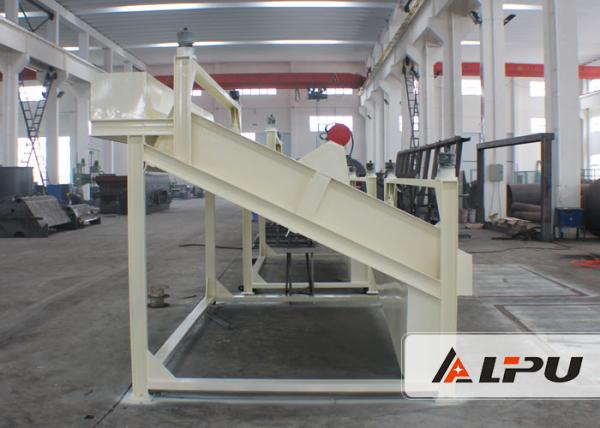

Product Picture Show :
Low Amplitude High Frequency Screen In Ore Beneficiation Plant 10-50 t/h
