Alumina Liner Cement Grinding Mill for Mineral Grinding , Batch Ball Mill Machine
Alumina Liner Cement Grinding Mill for Mineral Grinding , Batch Ball Mill Machine
Alumina Liner Cement Grinding Mill for Mineral Grinding , Batch Ball Mill Machine
Alumina Liner Cement Grinding Mill for Mineral Grinding , Batch Ball Mill Machine
Specifications
Brand Name :
Lipu
Model Number :
600×840
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Ceramic Ball Mill
Model :
600×840
Effective Volume :
0.23m³
Rotary Speed :
55r/min
Power :
1.5kw
Condition :
New
Weight :
1.35t
Application :
mining, cement, new building materials
Description

Alumina Liner Cement Grinding Mill for Mineral Grinding , Batch Ball Mill Machine
Ceramic ball mill is one kind of grinding equipment. In mineral separation, only high grade ore can be smelt directly after crushing and screening. Most ores must be grinded to 0.1-0.074mm or even more finer. Grinding is an important procedure in mineral separation.
Features:
Ball mill is widely used in manufacturing industries, such as mining, cement, new building materials, refractory material, chemical fertilizer, black metal, non-ferrous metal, glass, ceramics, etc.
Working Principle:
1. Wide scope of application, simple structure and easy maintenance.
2. Big processing capacity.
3. Convenient installation and commissioning, easy to operate.
4. High productivity.
Structure:
Ball mill is composed of the transmission device, main bearing, feeding device, rotary body, discharging device, etc.
Technical Data:

Model Effective volume(m³) Rotary speed(r/min) Once feeding quantity(t) Power(kw) Weight /without liner(t)
φ600×840 0.23 55 0.1 1.5 1.35
φ800×940 0.47 40 0.2 2.2 1.42
φ950×1020 0.72 34 0.3 3 1.5
φ1200×1400 1.58 34 0.5 4 2.5
φ1450×1760 2.91 26.5 1 11 3.5
φ1800×2100 5.3 23 1.5 15 4.5
φ2000×2300 7.2 16 2 22 5.9
φ2240×2600 10 18.7 3 30 7.4
φ2450×2800 13 16 4 37 9.5
φ2700×2900 16.6 16 5 37 10.5
φ2800×3100 19 15 6 45 12.4
φ2850×4000 25.5 14 8 55 16
φ3000×4650 32.5 16 14 90 20.8
φ3200×4650 37.5 16 18 90 23
φ3400×4650 43 12.5 23 90 25
φ3400×6300 57 12.5 30 110 30
φ3600×6300 64 11.8 36 110 32
φ3600×6500 66 11.8 38 110 32
φ3600×6700 68 11.8 40 132 35
φ3600×7170 68 11.8 40 110 35
φ4000×7860 99 10 60 185 48

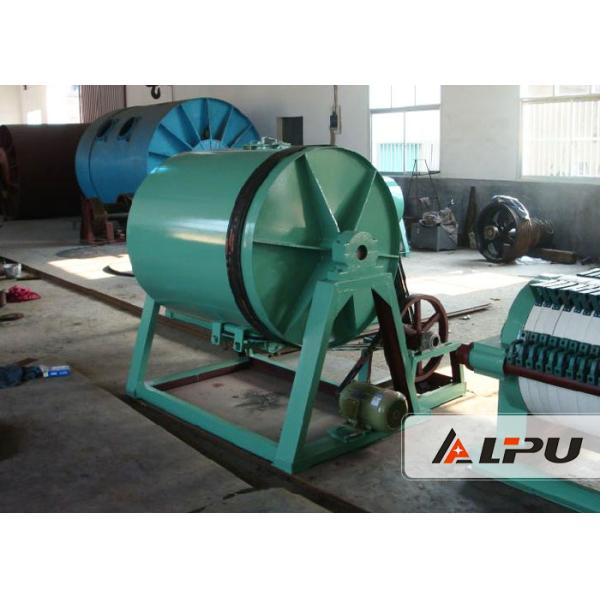

Product Picture Show:
Alumina Liner Cement Grinding Mill for Mineral Grinding , Batch Ball Mill Machine
