Hard Rock Mine Crushing Equipment , PEV Series High Efficiency Stone Jaw Crusher
According to customers actual requirements, adopting advanced technology home and abroad, Lipu designs a kind of modern high efficiency Jaw Crusher with high-input and output capacity, cost saving and long life cycle characters.
Features:
1. High Performance. Optimization of the trajectory of movable jaw plate and the cavity.
2. High stability. Optimization of the whole structure and the counterweight section to determine the structure of flywheel and driving wheel and the weight of counterweight section.
3. High reliability. Heat-treated forged eccentric shaft, extra large bearings, “E” frame, labyrinth seals, etc, making equipment sturdy and durable, more reliable.
4. Easy maintenance and operation. Advanced side fender bolt system makes the replacing of the side shield more faster; reasonable machine structure makes it more convenient for discharge setting and replacement of toggle plate. All this can effectively shorten the operation and maintenance time.
5. Wide application.
Working Principle:

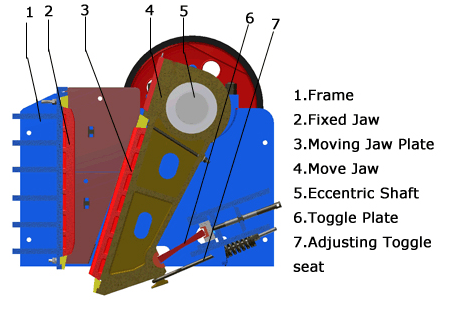

Jaw Crusher is composed of frame, rotor, insurance device and adjustable device of discharging opening. And the supporting parts are lubrication system, and adjusting system. Motor drives the wheel by triangular belt, and then drives eccentric shaft to move the moving jaw, when movable jaw moves moving jaw plate to fixed jaw plate, the materials are crushed or chopped. When moving jaw plate that is driven by moving jaw keeps away from fixed jaw plate, the crushed materials are discharged from the discharging opening, which is under the jaw plate. Along with the continuous rotation of motor, the crusher crushes and discharges periodically.


Technical parameters:

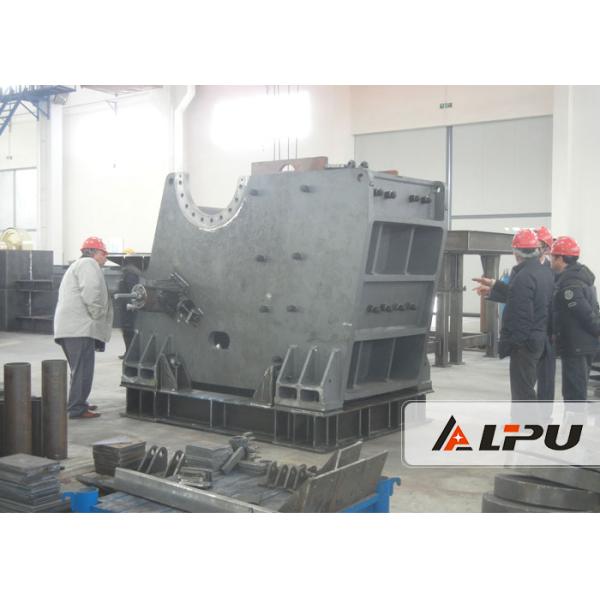

Turkey Customer Visit for PEV Jaw Crusher :
