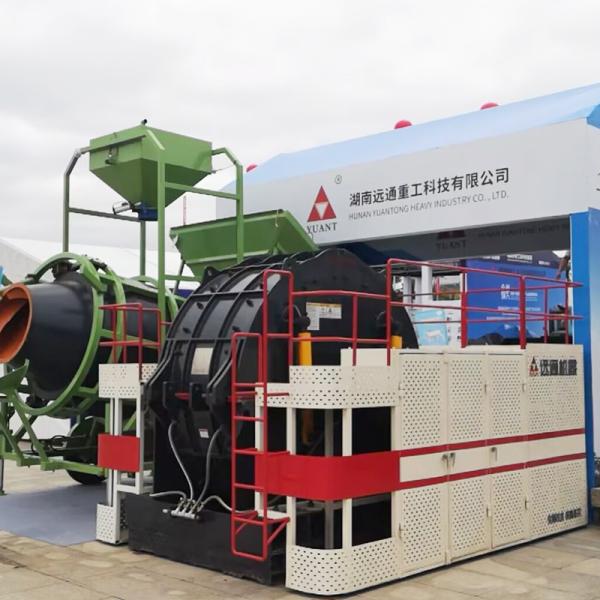

800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production
800kw Calcite To M-Sand Horizontal Shaft Impact Crusher For Road Base Gravel Production
Specifications
Brand Name :
Yuantong
Model Number :
PW4010
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
200 sets/year
Delivery Time :
1-8 Weeks
Packaging Details :
Small items: wooden box; Large device: container
Product Name :
Horizontal Shaft Impactor Crusher
Warranty :
12 Months
Installation Method :
Stationary
Power Source :
Electricity
Application :
for Road Base Gravel Production
Color :
Customizable
Capacity :
Varies depending on plant size
Control System :
Automated
Description

Calcite to M-Sand Horizontal Shaft Impact Crusher for Road Base Gravel Production

Features:

1, Saving overall investment:
From the perspective of the overall investment of the sand and gravel processing production line, the horizontal shaft impact crusher has the characteristics of large crushing ratio and high production efficiency, which can reduce the use of other auxiliary crushing equipment, such as cone crusher, impact crusher, etc.

2, In addition, its excellent particle shape can reduce the investment in subsequent shaping equipment.

3,Therefore, under the condition of meeting the same production scale and product quality requirements, the horizontal shaft impact crusher can reduce the number of equipment by optimizing the process flow, thereby saving equipment procurement investment to a certain extent.

Ideal for:
River pebbles
Granite and basalt
Limestone
Secondary or tertiary crushing
Gravel and sand production lines

Other typical use cases:

  • Road base gravel production
  • Concrete aggregate preparation
  • Landscaping material processing
  • River pebble crushing plants

Applications:

No investment required in primary crushing equipment.

Product NameCapacityPowerInput materialOutput functionEnd Users
Horizontal Shaft Impactor Crusher300 t/h800kwCalcite

Manufactured Sand
m-sand
machine-made sand

for Glass raw materials plant, construction sand and gravel processing plant

Technical Parameters:

ModelMax. feed size(mm)Capacity(t/h)Product size(mm)Output(t/h)Motor power(kw)Dimensions(mm)
PW2006≤7040-500-5mm25-3090360x150x207
5-31.5mm10-15
PW2008≤8060-800-5mm40-55160362x191x210
5-31.5mm15-20
PW3008≤9090-1100-5mm55-65250385x242x255
5-31.5mm20-30
PW3308≤100120-1400-5mm70-90315432x296x266
5-31.5mm30-40
PW3608≤100160-2000-5mm110-130400518x318x312
5-31.5mm30-40
PW4010≤100300-4000-5mm200-2502x315(400)704x418x370
5-31.5mm60-80

Support and Services:

Our equipment offers the following technical support and services:
- Installation and commissioning assistance
- Regular maintenance and inspection
- Troubleshooting and problem resolution
- Spare parts and wear materials supply
- Operational training and support
- Upgrades and retrofits to improve performance and efficiency
