Specifications
Brand Name :
sinotruk
Model Number :
howo
Certification :
iso,
Place of Origin :
China
MOQ :
1 pc
Price :
NEGOTIABLE
Payment Terms :
L/C,T/T
Supply Ability :
500 units/month
Delivery Time :
40 worker days
Packaging Details :
nude
Model NO. :
howo 6*4 dump truck
Transmission Type :
Manual
Load Capacity :
31-40t
Drive Wheel :
6×4
Traction Type :
6*4, Left/Right Hand Drive8
Gear Box :
9 Forward Gears& 1 Reverse
Condition :
New
Drive Seat :
Air Suspension Seat
Description

Hot-Sale Good Price Sinotruk HOWO Camion Volteo Manufacturer 6X4 8X4 340HP 380HP 400HP Truck

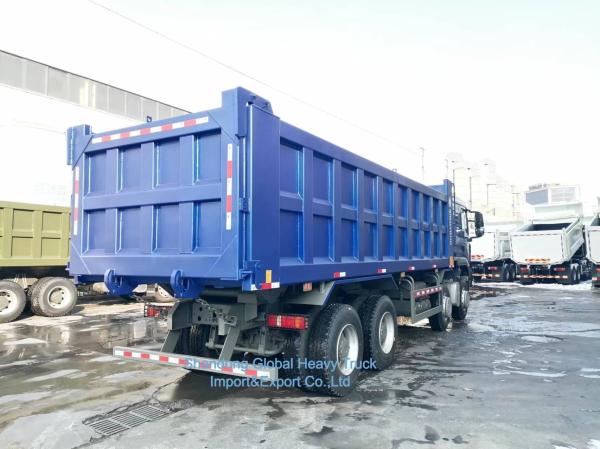

SINOTRUK HOWO Dump Truck
Chassis Model ZZ3257N3847B1 (Left/ Right Hand Driving Type Optional)
Driving type 4X2 6x4 8X4 4X4 6X6 8X8
Engine Model: WD615.47, Euro 2, 371 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
371HP / 340HP / 340HP / 380HP / 400HP / 430HP, Euro II / V
Clutch Single-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance
Gearbox SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO)
Front Axles VGD95 9500kg with drum brake system
Rear Axles HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73
Suspension Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer
Steering System famous brand power steering, model ZF8118 , hydraulic steering with power assistance
Braking System
 Front drum rear drum brake, four-circuit protection valve
Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms
Tires 12.00R20 (12.00-20, 315/80R22.5 optional), with one spare tyre
Fuel Tank Volume (L) 300
Dead Weight 12020/8630
Gross Vehicle Weight (kg) 25000
Rated Loading Weight (kg) 12850; 12640 optional
Overall Dimension
(LxWxH) (mm)		 8650x2550x3500
Wheelbase (mm) 3800+1350
Min.Ground Clearance (mm) 314
Approach/Depart Angle(°) 19/ (27/65)
Gradeability (%) ≥50
Min. Turning Diameter (m) 15
Cargo Body Size (LxWxH) (mm) 5600x2300x1500 option
Cargo Body Volume (m3) 19 option
