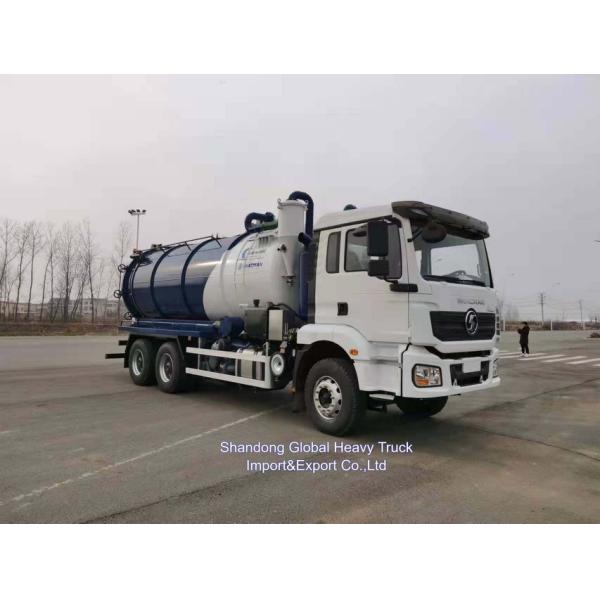

16cbm Shacman Fecal Suction Vehicle Sewage Tanker Truck Sewage Suction Truck
16cbm Shacman Fecal Suction Vehicle Sewage Tanker Truck Sewage Suction Truck
16cbm Shacman Fecal Suction Vehicle Sewage Tanker Truck Sewage Suction Truck
16cbm Shacman Fecal Suction Vehicle Sewage Tanker Truck Sewage Suction Truck
16cbm Shacman Fecal Suction Vehicle Sewage Tanker Truck Sewage Suction Truck
16cbm Shacman Fecal Suction Vehicle Sewage Tanker Truck Sewage Suction Truck
16cbm Shacman Fecal Suction Vehicle Sewage Tanker Truck Sewage Suction Truck
16cbm Shacman Fecal Suction Vehicle Sewage Tanker Truck Sewage Suction Truck
Specifications
Brand Name :
SHACMAN
Model Number :
SHACMAN
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
L/C,T/T
Supply Ability :
300 units/mouth
Delivery Time :
40 worker days
Packaging Details :
nude
Product Name :
SHACMAN 6*4 5cbm Sewage Suction Vacuum Tank Truck
Tank Volume :
5000L
Drive Wheel :
6*4
Hoesrpower :
251-350hp
Tank Material :
Q235 Carbon Steel/Head 5.0mm, Q235 Carbon Steel/5.
Front Axle :
Hf9
Capacity :
12m3
Emission :
Euro 2
Description

16cbm Shacman Fecal Suction Vehicle Sewage Tanker Truck Sewage Suction Truck

Function:(1)Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.

(2)Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

(3)vacuum tank capacity ranges from 3,000 Liters to 25,000 liters
Features:
a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.
b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.
c.Pump can be operated by a hydraulic motor or by an auxiliary engine.
d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
e.Nice shape ,rational structure,durable and long service life
Cabin Driving type 6x4, single row10


10500×2300×3500
Wheel base (mm) 4600+1350
Wheel track (front/rear) (mm) 1960/1860
Approach/Departure angle(°) 28/32
Weight in KGS Tare Weight 5340
payload 6025
Front axles loading capacity 2700
Rear axles loading capacity 5000
Max. driving speed(km/h) 95
Engine Brand Cummins
Horse Power(HP) 210HP
Emission standard Euro V
Gearbox 6 forwards & 1 reverse
Steering Left hand drive
Tire 11.00R20, 6 tires with one spare
Sewage Tank
Tank volume 20000Liters
Tank material 6mm carbon steel Q235
Tank size 4900x1600mm
Vacuum Pump Chinese Vacuum Pump or Italy Vacuum Pump
Sewage suction pipe 8M
Main Performance Suction time ≤ 5min,
effective suction range ≥ 8m
Other equipment Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve
Painting Customized painting color and logo as required.

16cbm Shacman Fecal Suction Vehicle Sewage Tanker Truck Sewage Suction Truck
