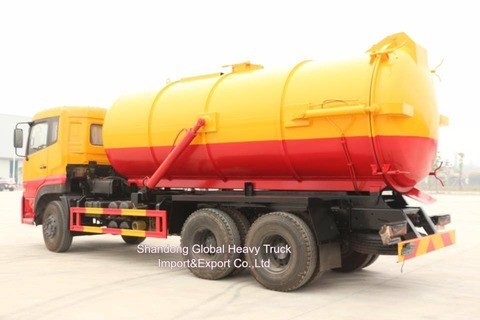

Good Price Dongfeng Vehicles 6*4 Suction Sewage Tank Vacuum Combination Sewer Cleaning Trucks
Good Price Dongfeng Vehicles 6*4 Suction Sewage Tank Vacuum Combination Sewer Cleaning Trucks
Good Price Dongfeng Vehicles 6*4 Suction Sewage Tank Vacuum Combination Sewer Cleaning Trucks
Good Price Dongfeng Vehicles 6*4 Suction Sewage Tank Vacuum Combination Sewer Cleaning Trucks
Good Price Dongfeng Vehicles 6*4 Suction Sewage Tank Vacuum Combination Sewer Cleaning Trucks
Good Price Dongfeng Vehicles 6*4 Suction Sewage Tank Vacuum Combination Sewer Cleaning Trucks
Good Price Dongfeng Vehicles 6*4 Suction Sewage Tank Vacuum Combination Sewer Cleaning Trucks
Good Price Dongfeng Vehicles 6*4 Suction Sewage Tank Vacuum Combination Sewer Cleaning Trucks
Specifications
Brand Name :
DONGFENG
Model Number :
DONGFENG
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
L/C,T/T
Supply Ability :
300 units/mouth
Delivery Time :
40 worker days
Packaging Details :
nude
Product Name :
DONGFENG 6X4 20cbm Sewage Suction Vacuum Tank Truck
Tank Volume :
20000L
Drive Wheel :
6*4
Hoesrpower :
371hp
Engine Model :
Wd615.47
Front Axle :
Hf9
Capacity :
15cbm, 18cbm , 20cbm
Emission :
Euro VI
Description

Good Price Dongfeng Vehicles 6*4 Suction Sewage Tank Vacuum Combination Sewer Cleaning Trucks

Product Description
The working principle of the sewage suction truck is mainly based on the vacuum negative pressure principle. Through the vacuum pump generating negative pressure, the sewage or feces are sucked into the sewage storage tank of the vehicle body. This process involves components such as the vehicle body, vacuum pump, and hydraulic system. The vacuum pump works based on the negative pressure principle. While sucking in the sewage, the hydraulic system drives the mixer to stir the sewage to prevent the deposition of solid particles. When the sewage storage tank is full, the sewage can be discharged through the sewage discharge pipe. The sewage suction truck is also equipped with multiple filtering devices, effectively preventing dirt and foreign objects from entering the vacuum pump and improving the sewage suction efficiency. In addition, the sewage suction truck also has a cleaning function. It uses a high-pressure water pump to generate high-pressure water flow and sprays it directionally through nozzles to clean the debris in the pipeline and achieve the cleaning effect.
The image shows four main components of a Sewage Suction Truck: Sewage Tank, Hydraulic Rod, Unloading Outlet, and Vacuum Pump. The Sewage Tank is a large container used for storing sewage. It is robustly built to hold a big amount of waste. The Hydraulic Rod is likely used to operate the mechanisms for lifting or moving parts of the truck, facilitating the suction and discharge of sewage. The Unloading Outlet is the part of the truck through which the sewage is emptied out. It is crucial for the disposal process. The Vacuum Pump creates a vacuum to suck in sewage from the source. It is essential for the suction function of the truck. Each of these components plays a vital role in the efficient operation of the Sewage Suction Truck.

Product Parameters


Category Item Data

Chassis parameters
 Product Name cleaning and sewage truck
Total mass 11995KG
Length*Width*Height 9800X2500 X3500(mm)
Wheelbase 3950(mm)
Chassis brand DONGFENG
Drive type 6*4
Transmission Type Manual
Engine horsepower 190
Emission standards Euro VI
Tires 8.25R20 14PR
Main parameters total volume of tank 18000L
Tank material Carbon Steel
Ball Valve Material Stainless Steel
Vacuum Pump XD-360
Tank Ball Valves DN200/DN100 (two)
Toolbox Material Stainless Steel
Clean water tank heating, full tank alarm, automatic pressure relief, secondary overflow prevention, cleaning machine, electrostatic powder coating and baking varnish treatment on the upper body, hose reel, remote control operation of high-voltage part, hydraulic opening and hydraulic locking of rear head, stainless steel pneumatic ball valve for sewage outlet, stainless steel tool box, reversing image installed,
Vehicle tools: one 4 kg fire extinguisher; one set of vehicle filter element; one pair of vehicle spotlights, one 10-meter sewage suction pipe (with quick connector);
Note: The vehicle replaces the cold-region hydraulic oil and engine oil, which requires low temperature resistance of -40ºC;
