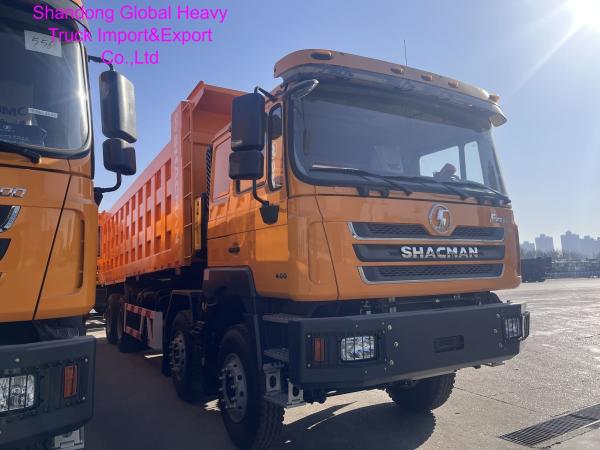

Shacman F3000 RHD 6X4 380HP 8X4 420HP Cargo Tipper Diesel 10 Wheels new Heavy Duty Dump Truck for Sale

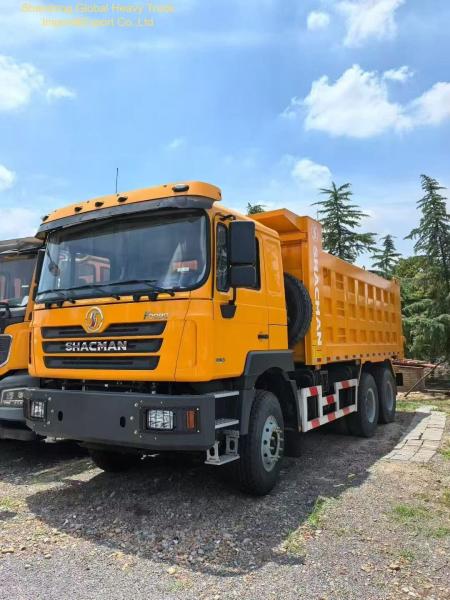

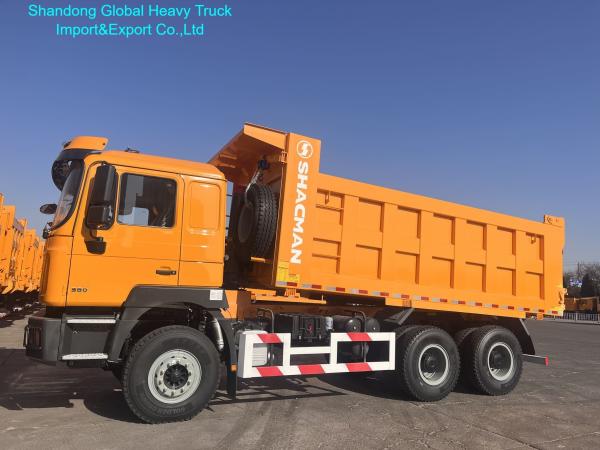

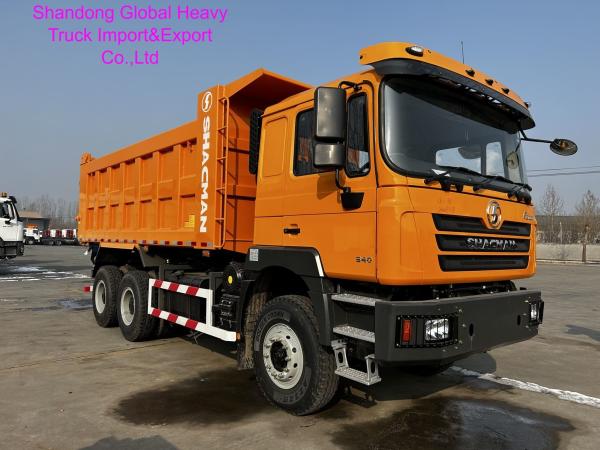

SHACMAN F3000 6x4 Dump Truck

Product Overview

The SHACMAN F3000 Dump Truck is designed for high-strength operations in construction, mining, and long-haul transport. With a reliable 400HP powertrain, reinforced structure, and flexible loading capacity, it offers excellent performance for heavy-duty applications.

Technical Specifications

• Brand: SHACMAN

• Model: F3000 Dump Truck

• Drive Type: 6×4

• Engine: Weichai WP10 / 400 HP, Euro II/III standard

• Transmission: Fast 10- or 12-speed manual gearbox

• Clutch: Single dry plate, 430 mm

• Axle: 7.5T front, 16T rear, hub reduction optional

• Suspension: Reinforced multi-leaf spring system

• Frame: Double-layer high-strength steel, 8+8+8 mm

• Steering: Hydraulic power steering (ZF technology)

• Brakes: Dual circuit air brake system, ABS optional

• Fuel Tank: 400 L

Cargo Body

• Body Type: U-shape or square box

• Box Dimension: 5600–5800 × 2300 × 1500 mm (customizable)

• Material: High-strength steel Q345 / NM450

• Thickness: 8–10 mm bottom, 6–8 mm sides

• Payload: 25–30 tons

• Hydraulic System: HYVA lifting cylinder, fast unloading

Dimensions & Performance

• Overall Dimension: 8614 × 2490 × 3450 mm

• Wheelbase: 3775 + 1400 mm

• Curb Weight: 12,500–13,000 kg

• GVW: 25,000–30,000 kg

• Top Speed: 80–90 km/h

Advantages

• Strong chassis for off-road and urban conditions

• Large payload capacity for bulk material transport

• Reliable engine with strong climbing ability

• Widely used in road construction, quarrying, and logistics

• Spare parts supply and after-sales support available worldwide

FAQ

Q1: What is the average fuel consumption?
Around 36–38 liters per 100 km depending on road conditions and load.

Q2: Can the truck body be customized?
Yes, cargo box size and thickness can be modified according to project requirements.

Q3: What warranty is provided?
Standard warranty: 1 year or 100,000 km.

Q4: Is it suitable for mining operations?
Yes, reinforced axles and durable box material make it suitable for heavy-duty mining tasks.

Q5: How long is the delivery time?
Usually 30–40 days after order confirmation.
