White 6X4 336HP 20CBM Water Tanker Truck With Sprinklers ZZ1257N4641W
White 6X4 336HP 20CBM Water Tanker Truck With Sprinklers ZZ1257N4641W
White 6X4 336HP 20CBM Water Tanker Truck With Sprinklers ZZ1257N4641W
White 6X4 336HP 20CBM Water Tanker Truck With Sprinklers ZZ1257N4641W
White 6X4 336HP 20CBM Water Tanker Truck With Sprinklers ZZ1257N4641W
White 6X4 336HP 20CBM Water Tanker Truck With Sprinklers ZZ1257N4641W
White 6X4 336HP 20CBM Water Tanker Truck With Sprinklers ZZ1257N4641W
White 6X4 336HP 20CBM Water Tanker Truck With Sprinklers ZZ1257N4641W
Specifications
Brand Name :
HOWO
Model Number :
ZZ1257N4641W
Certification :
ISO/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Unit/Units per Month
Delivery Time :
35-40 work days
Packaging Details :
Nude
Transmission Type :
Manual
Storage :
Water
Fuel Type :
Diesel
Gross Vehicle Weight :
41000
Tanker Capacity :
20000L
cylindrical sprinklers :
2
Engine Capacity :
9726CC
Horsepower :
336HP
Description

SINOTRUK HOWO 6X4 336HP 20CBM Water Tanker Truck With Sprinklers ZZ1257N4641W

Product Description

HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.

Product Parameter

Model ZZ1257N4641W
Cabin HW76 Long Cabin, with two seats and one bed, with Air Conditioner and electric window.

Engine

 Model WD615.69
Horse Power (Hp/rpm) 336/2200, Euro II Emission Standard
Max.Toruqe(Nm/rpm) 135/1100-1600
Displacement L

9.726
Type 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine
Transmission HW19710, 10 speeds forward and 2 speeds reverse.
Front Axle HF9, Steering with double T-cross section beam, Loading Capacity: 9,000kgs
Driving Axle HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42
Suspension Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Steering System ZF8118, Hydraulic steering with power assistance
Brake System Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Tire 12.00R20
Fuel Tank Capacity (L) 400L Diesel Tank
Kurb Weight (kg) 13,400
Loading Capacity (kg) 27,600
Gross Vehicle Weight (kg) 41,000
Overall Dimension(L*W*H)(mm) 9600×2500×3200
Tank Capacity(L) 20,000
Tank Material Carbon Steel
Nos of Compartment 1
Accessories

2 nos of duck-billed sprinklers(in front),

2 nos of cylindrical sprinklers(at rear),

2 nos of 2.5" pressure water discharge,

1 nos of 3" water sucking mouth,

1 nos of high shooting spray rod,

2 nos of 3" 3m pipe,
Wheelbase(mm) 4600+1350
Max. Speed (km/h) 90

Company Advantage

1. Excellent and Outstanding After Sales Service

Our professional technicians and mechanics and parts staff always concentrate all our products and our customers. Top Starting Point, High Quality and Worry-free Service is our promise to all our customers.

2. High Efficiency is One of Our Goal and Promise to Our Customers

We will be always with our customers whenever and wherever we are. All problems and questions shall be solved by our end at the first time. Customer priority outstands without any doubt.

3. Latest Truck Development and Trends Shall Be Delivered Regularly

We have abundant technical team, familiar with local and major exporter product standards. Our customers will be regularly updated with the latest truck development and trends in China and other countries.

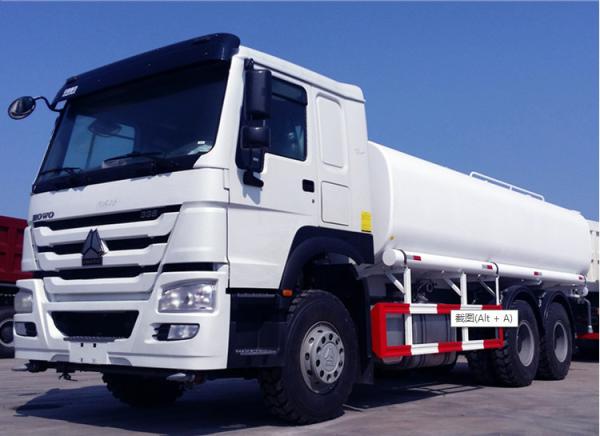

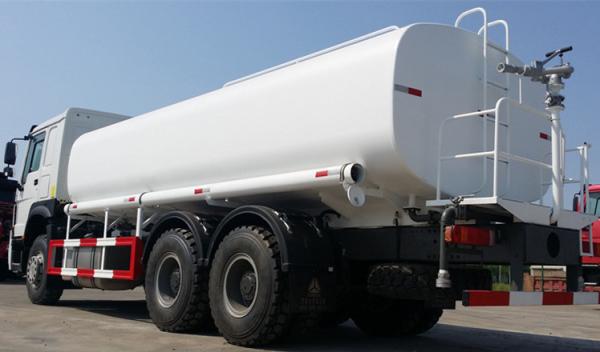

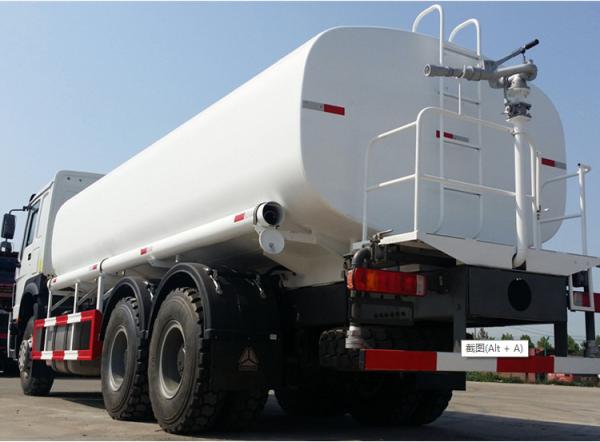

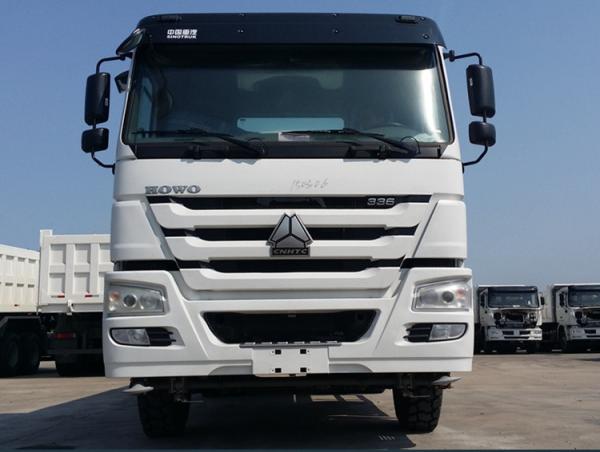

Product Picture

White 6X4 336HP 20CBM Water Tanker Truck With Sprinklers ZZ1257N4641WWhite 6X4 336HP 20CBM Water Tanker Truck With Sprinklers ZZ1257N4641WWhite 6X4 336HP 20CBM Water Tanker Truck With Sprinklers ZZ1257N4641W
