Manual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867A
Manual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867A
Manual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867A
Manual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867A
Manual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867A
Manual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867A
Manual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867A
Manual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867A
Specifications
Brand Name :
HOWO
Model Number :
ZZ1317N3867A
Certification :
CCC/ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
300 Unit/Units per month
Delivery Time :
25-40 work days
Packaging Details :
Nude
Drive Wheel :
8x4
Transmission Type :
Manual
Fuel Type :
Diesel
Size :
8650x2300x2200mm
Engine :
WD615.69
Batteries :
2*12, 165Ah
Capacity (Load) :
21 - 30t
Horsepower :
351 - 450hp
Description

HOWO Cargo Truck 8x4 Euro2 Emission 371hp Engine ZZ1317N3867A

Technical Features

Typical truck model
ZZ1317N3867A
ZZ1317N4667A
Cab
Model
HW76
Type
HW76 extend cab, one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper
system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid
adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor,
and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse
stabilizer, safety belt.
Engine
Model
WD615.69
WD615.47
Rated power
336HP(247Kw/rpm)
371HP(273Kw/rpm)
Displacement
9.726L
Type
6 cylinder in-line with water cooling, turbo-charging & intercooling
Wheelbase
1800+3800+1400mm
1800+4600+1400mm
Cargo body size
8650x2300x2200mm
9500x2300x2200mm
Clutch
Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance
Transmission
SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse
Front axle
Steering axle with double T-cross section HF7/HF9
Drive axle
Pressed axle housing, central single reduction ST16/MCY(Q)/HC16/AC16
Ratio:3.93 4.42 4.8 5.73
Chassis
Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Spare wheel carrier: with one spare wheel
Aluminum fuel tank: with 400 L fuel tank with locking fuel cap
Steering
Germany ZF, hydraulic steering with power assistance
Brakes
Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS
Wheel & Types
Rims: 8.0-20, 10 hole-steel
Types 11.00-20 tube;
Option: 12.00-20 tube, 12.00R20 tube
Electrics
Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW
Alternator: 28V, 1540W; Batteries: 2×12, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

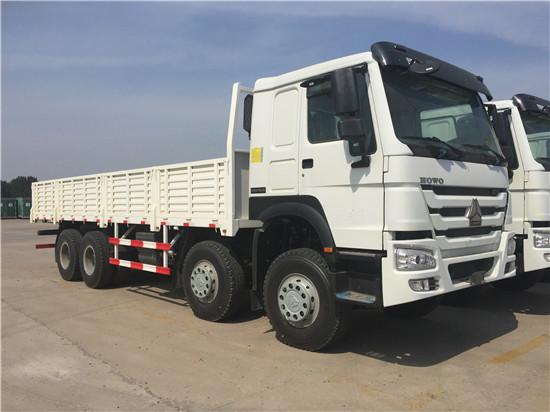

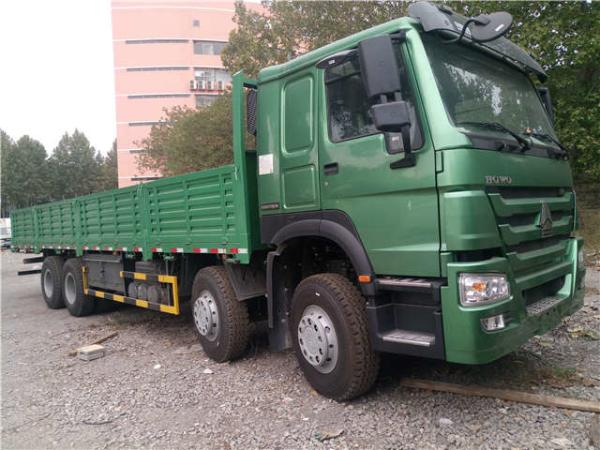

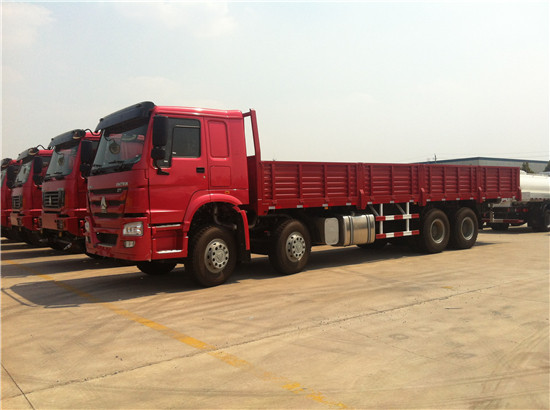

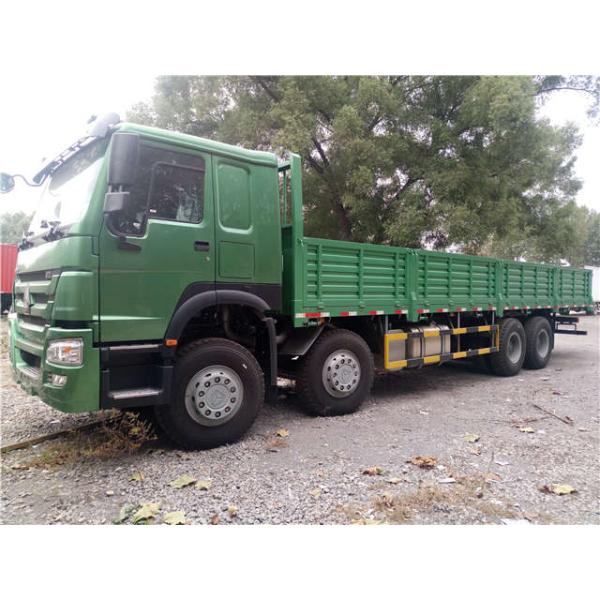

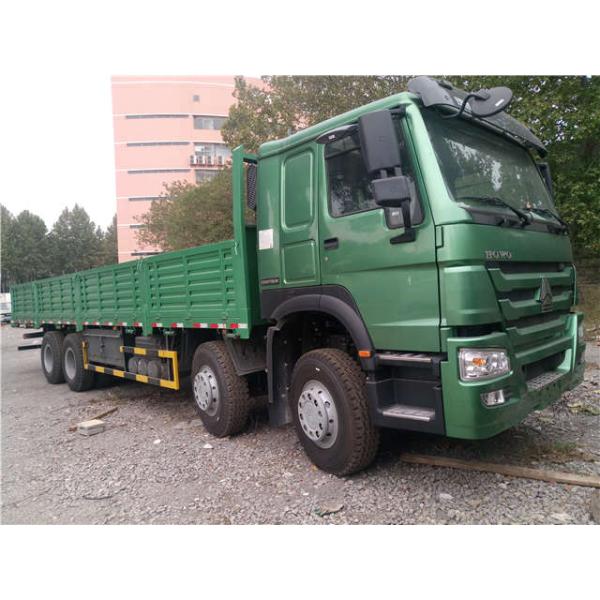

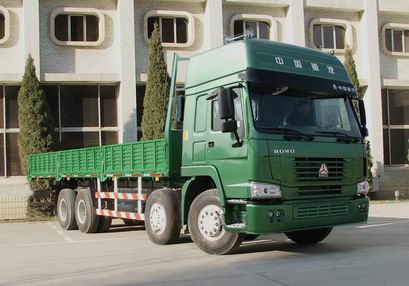

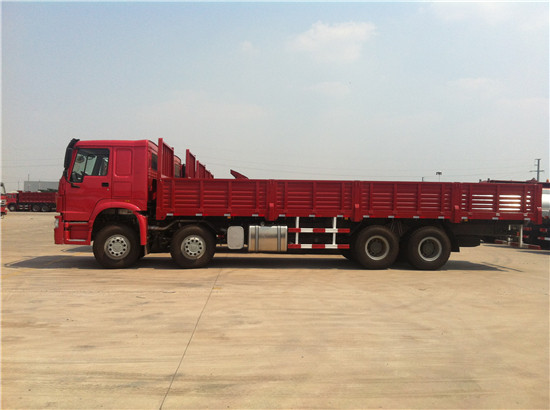

Product picture

Manual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867AManual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867AManual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867AManual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867AManual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867A
