Specifications
Brand Name :
SINOTRUK HOWO 70
Model Number :
ZZ5707S3840AJ
Certification :
CCC
Place of Origin :
Jinan, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 units per month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Model :
ZZ5707S3840AJ
Emission Standard: :
Euro 2
GVW :
75000 KGS
Cargo body :
5900x3100x1800(33m3)
Wheel base :
3800+1500 mm
Frame :
10+10
Description

ZZ5707S3840AJ SINOTRUK HOWO 6x4 70T Mining Dump Truck With HW7D Cabin

Product Details:

Brand

SINOTRUK

Production condtion

New

Rated load

52000 KGS

Curb Weight

23000 KGS

GVW

75000 KGS

Engine

SINOTRUK Export model D12.42, diesel, Euro 2, 11596L, 420HP / 2000rpm,6 dylinder, 1820N.m / 1100-1500rpm

Cab

HW7D, no sleep bed

Model

HOWO 70ton Mining Dump Truck

Color

Cabin: White, Cargo body: Grey

Truck Dimension

8600x3300x4340 mm

Cargo body

5900x3100x1800(33m3)

U type, super high wear- resisting plate, Side 8mm bottom 12mm, two bottom carlings, up warp rear side

Tire

Front 14.00R25 super strong loaded tire, rear 14.00-25

Wheel base

3800+1500 mm

Max speed

75 km/h

Front axle

HF12, SINOTRUK HOWO-12ton front axle, drum brake

Oil tank capacity

500L

PTO

HW70, flanged end

Frame

10+10

Hydraulic lifting

HYVA 196

Electric system

180Ah storage battery

Rear axle

SINOTRUK AC26 heavy duty reduction drive rear axle, steyr double reduction axle, ratio: 8.51

Transmission

HW21712, 12+2 gears

Front/rear suspension

Enhanced type

Air intake system

Construction project standard Oil filter

Mark

English vision instrument panel, AC, manual window

Factory Show:

SINOTRUK produced China's first heavy-duty truck- Huanghe JN150 8t truck in 1960, and introduced a heavy-duty truck project from Steyr in 1983. After rapid development of many years, SINOTRUK has initially built an international platform through the red-chip listing in Hong Kong in 2007, forged a strategic partnership with MAN which holding a 25%+1 stake in SINOTRUK (Hong Kong) Limited in 2009, and introduced a series of technologies from the outside soon afterwards.
Nowadays, with overwhelming superiorities in technology and market, SINOTRUK has become China's largest heavy truck manufacturing base that has made a remarkable contribution to the development of China's heavy-duty truck industry and economic construction.

Packing:

Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.

Our Service:

Article 1: Quality

1.1- The Goods are brand new and shall conform to the relevant quality standards of FAW Group.

1.2- The manufacturer’s inspection prior to the shipment shall be final. In case any third party’s inspection is required by the Buyer, any charges which will be occurred by such inspection shall be borne by the Buyer.

Article 2 :Quality/Specifications/Quantity discrepancy

If the quality, specifications, quantity, of Goods be found not in conformity with the stipulations of contract after the arrival of the Goods, we will compensate it after receiving the necessary documentary evidence as required.

Article 3: Warranty and After-sales service

We and all of our distributors have enough ability to provide carefulness and consideration Warranty and After-sales service.

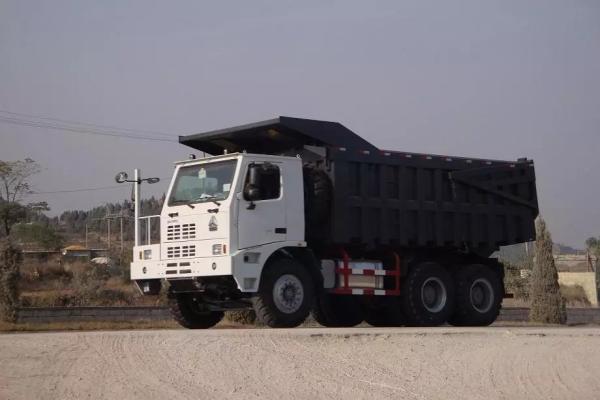

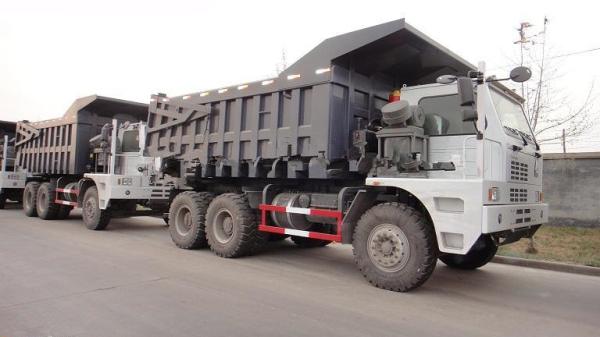

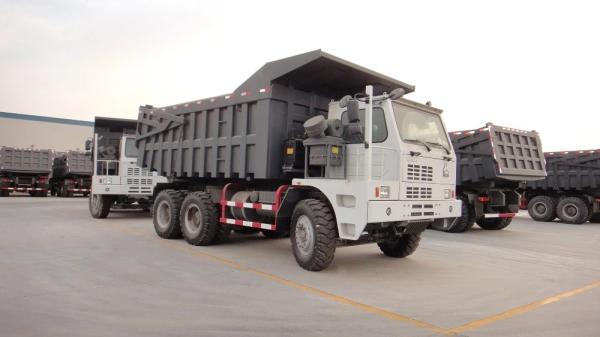

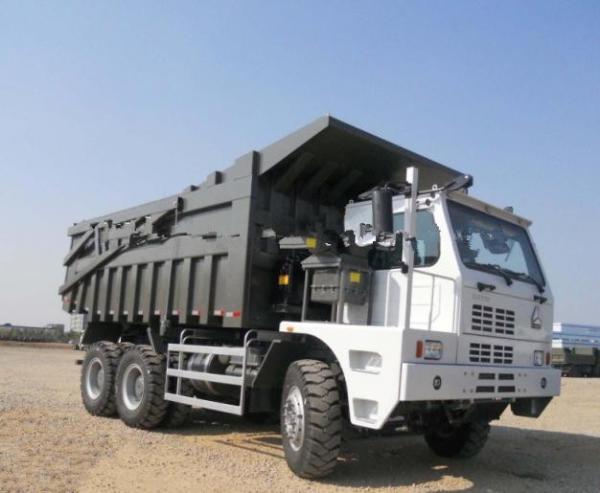

Reference pictures:

ZZ5707S3840AJ 6x4 70T Mining Dump Truck With HW7D Cabin 3800 + 1500mm Wheel BaseZZ5707S3840AJ 6x4 70T Mining Dump Truck With HW7D Cabin 3800 + 1500mm Wheel Base
