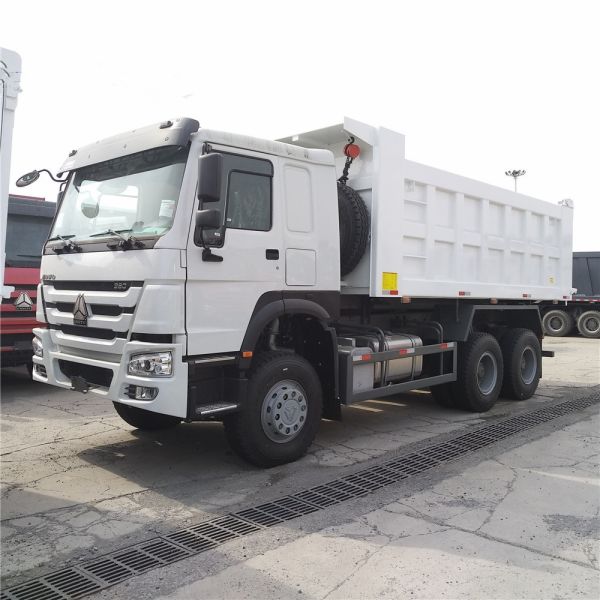

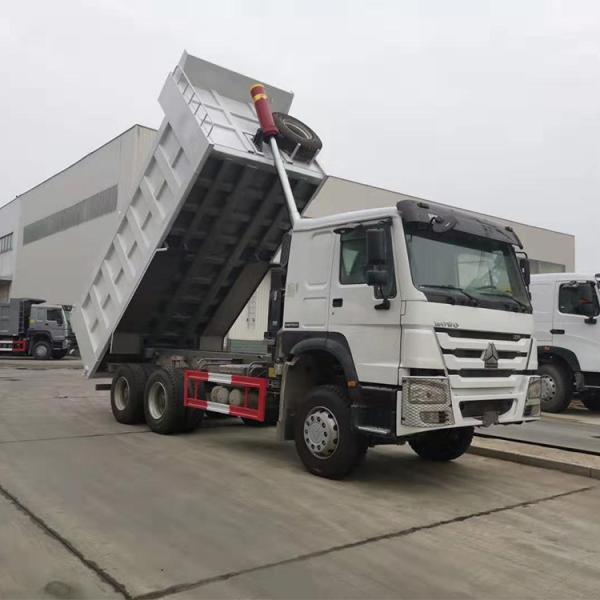

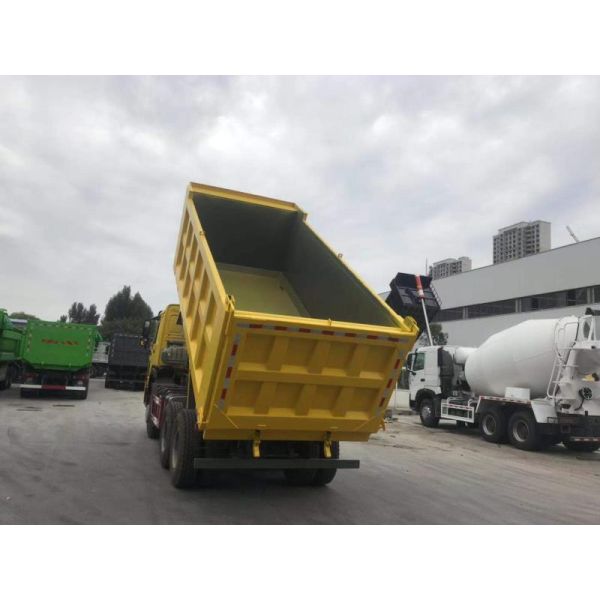

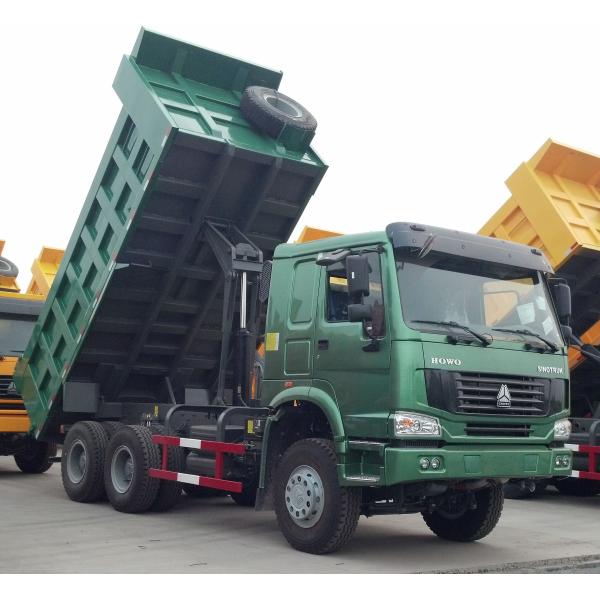

Model

ZZ3257N3447A1 GCW40000kgs Driving Type 6×4

Engine

Engine model

WD615.69, Euro II emission standard, 4 stroke injection diesel engine,
6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system

Maximum output

336PS (247kW) at 2200 rpm

Maximum torque

1350Nm at 1100-1600rpm

Bore

126mm Stroke: 130mm

Displacement

9.726L

Compression ratio

17.5:1

Specific fuel consumption

≤198g/kWh

Engine oil filling quantity

23L

Air compressors

WABCO Twin cylinders air compressors;

Cooling system filling quantity
(long-term filling)

40L

Clutch

SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

Transmission

Transmission, model HW19710, 10 forward and 2 reverse
Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

New HF9 series, with drum brake system
Steering with double T-cross section beam

Rear Axle

HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Ratio: 5.73

Chassis

Frame:

High-strength U-profile frame, all cold riveted cross members and reinforced subframe

Front suspension:

semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:

semi-elliptic leaf springs and bogie springs

Spare wheel carrier:

with one spare wheel

Steering

ZF8098, hydraulic steering with power assistance
Ratio: 22.2-26.2:1

Braking System

Front and rear drum brake, four-circuit protection valve

Service brake

dual circuit compressed air brake

Parking Brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

engine exhaust brake

Wheel & Types

Rims

8.5-20,10 hole-steel

Types

12.00R20, 12.00R22.5, 315/80R22.5, 12.00-20
