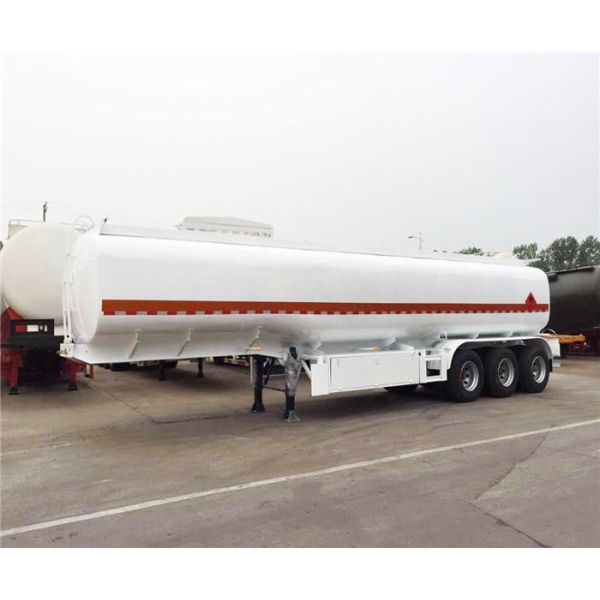

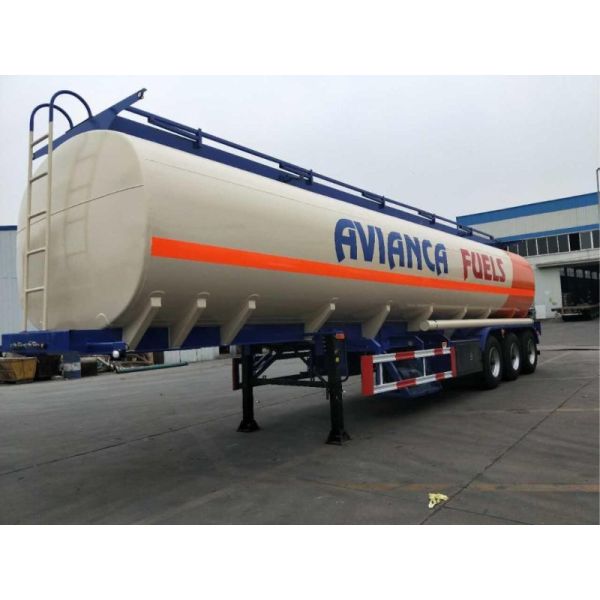

33 Cbm Heavy Duty Semi Trailers Oil Tank Trailer Stainless Steel 304 Material
33 Cbm Heavy Duty Semi Trailers Oil Tank Trailer Stainless Steel 304 Material
33 Cbm Heavy Duty Semi Trailers Oil Tank Trailer Stainless Steel 304 Material
33 Cbm Heavy Duty Semi Trailers Oil Tank Trailer Stainless Steel 304 Material
33 Cbm Heavy Duty Semi Trailers Oil Tank Trailer Stainless Steel 304 Material
33 Cbm Heavy Duty Semi Trailers Oil Tank Trailer Stainless Steel 304 Material
33 Cbm Heavy Duty Semi Trailers Oil Tank Trailer Stainless Steel 304 Material
33 Cbm Heavy Duty Semi Trailers Oil Tank Trailer Stainless Steel 304 Material
Specifications
Brand Name :
SINOTRUK
Model Number :
MB-ST002
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 units/month
Delivery Time :
20 work days
Packaging Details :
Nude
Loading Capacity (cbm) :
33
Material :
stainless steel 304
Gross vehicle weight :
37000kg
Dimension :
11500mm×3600mm×2500mm
ABS :
4S/2M
Tyres :
9 steel rims and double tyres 11.00R20
Description

Oil Tank Semi Trailer 33 cbm Aluminium Alloy Fuel Material stainless steel 304

Description:

Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized,every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality. Advanced means of production technology and perfect testing equipment to protect the product overall structure is reasonable, reliable performance.

Packing:

Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.

Compentition advantages:

1. Strong producing capacity and R&D capacity,because we are the direct dealer.

2. Depend on the type of truck and the QTY and the shipping date,usually the truck can be ok on 20 working days.

3. Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.

4. Supply spare parts of the trucks for the whole life.

Tare Weight 9000kg
Dimension 11500mm×3600mm×2500mm
Loading Capacity (cbm) 33
Material stainless steel 304
Shape Self bearing tank with maximum section shape with low centre of gravity
Thickness of shell 5mm
Thickness of heads 4.5mm
Compartments 3
Electric installation Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
ABS 4S/2M

Braking system

 Double line air brakes Mechanical parking brake with WABCO emergency relay valve
Rated payload 2800kg
Gross vehicle weight 37000kg
Tyres

9 steel rims and double tyres

11.00R20

Running gear

SAF OR FUWA axles 2x13T

landing gear
Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )
King pin JOST brand 2.0 or 3.5inch bolts type or Welding type
Painting All steel parts are steel sand blasted before painting
Tanker and chassis is painted according customer’s wish
Steel blasting to SA2.5

Accessories

 Toolbox
Discharge cabinet with lock
Hose carriers on both sides
Mudguards
Fire extinguisher
on top of the tank rear left side
OIL flow counters

Tank top accessories

Aluminium foldable handrail

Walkway 400mm wide, with anti-slip material in the front of reach the manholes,
Not covering the complete length of the tank.

33 Cbm Heavy Duty Semi Trailers Oil Tank Trailer Stainless Steel 304 Material33 Cbm Heavy Duty Semi Trailers Oil Tank Trailer Stainless Steel 304 Material
